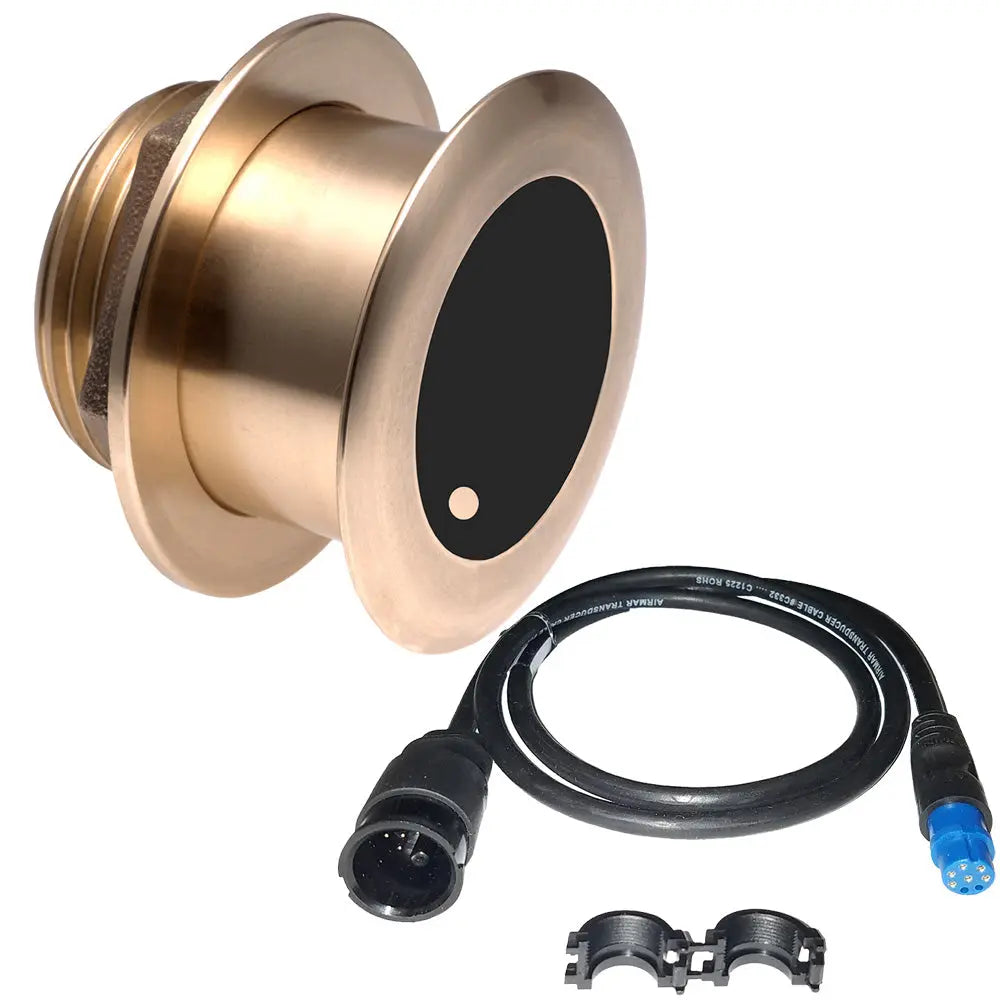

Airmar B175M Bronze 12 Degree Thru-Hull 1kW Transducer for Garmin with 8-Pin Connector

B175M Bronze 12 Degree Thru-Hull 1kW for Garmin with 8-Pin Connector

The B175Ms medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500) and gives ultra-clear target resolution.

Airmars Tilted Element transducers have the element fixed at a 20, 12, or 0 angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hulls deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

• Garmin 8-Pin Mix Match Cable for Chirp Transducers

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Medium frequency: 85 to 135 kHz
• 16 to 11 beamwidth
• Maximum depth of 457 m (1500)
• 50 kHz of total bandwidth from one transducer
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS175M) and a thru-hull (B285M) or in-hull (M135M) mount
• Patented Xducer ID technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4), Metal hull 105 mm (4-1/8)
• Usable Shaft Length: 55 mm (2.18)
• Mounting Style: Tilted Element Thru-Hull
• Acoustic Window: Urethane
• Common Use: Fishing
• Max Deadrise: Up to 24
• Max Depth: 457 m (1500)
• Medium Frequency: 85-135 kHz
• Medium Frequency Beamwidth: 16-11
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs.)

The Airmar B175M bronze transducer is designed for optimal performance in medium-deep water conditions, providing clear and accurate target and structure returns at depths of up to 1,500 feet. Its medium frequency range of 85 to 135 kHz delivers excellent bottom detail, fish-target separation, and coverage under the boat, making it ideal for fishing and navigation in various water conditions. The transducer's 12-degree tilt compensates for hull deadrise when installed flush to fiberglass or wood hulls, ensuring maximum echo return and reliable readings. Its low-profile, thru-hull bronze housing offers durability and minimal drag, maintaining high display resolution at speed, especially on stepped, planing, or displacement hulls.

Features:

• Garmin 8-Pin Mix Match Cable for Chirp Transducers

• Depth and water-temperature sensing for comprehensive underwater data

• Power rating of 1 kW provides strong signal transmission

• Operates within 85 to 135 kHz medium frequency range

• Beamwidth ranges from 16 to 11 degrees for detailed imaging

• Maximum depth capability of 457 meters (1,500 feet)

• Total bandwidth of 50 kHz from a single transducer for versatility

• Low-profile, tilted element thru-hull housing enhances performance at speed

• Recommended for fiberglass or wood hulls with a hole size of approximately 3-3/4 inches

• Constructed with durable bronze housing suitable for various marine environments

• s patented Xducer ID technology for easy identification and setup

• Maximum hull deadrise of 24 degrees ensures compatibility with a wide range of vessels
