SKU:103573

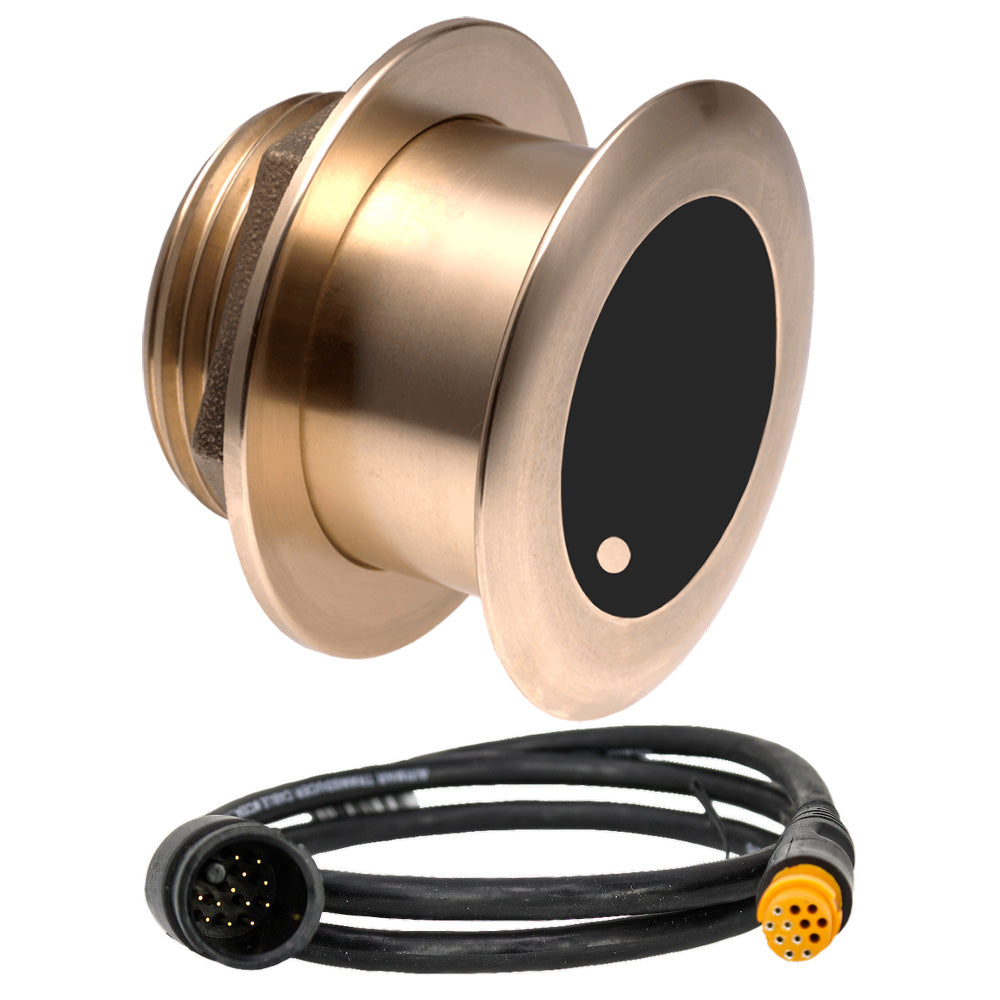

B175MW Med Ultra Wide 1kW, 20 Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin
Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 port-starboard to 16 average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmars Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMARs most popular Tilted Element housings which includes a ceramic element fixed at a 20 angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Features:
Specifications:
The Airmar B175MW Medium Ultra Wide (MW) Tilted Element Thru-hull transducer is engineered for anglers seeking high-performance sonar coverage in pelagic and mid-depth fishing scenarios. With a power output of 1 kW and an ultra-wide beamwidth ranging from 57 to 73 degrees port-starboard, this transducer offers broad and detailed coverage beneath your vessel. Its medium frequency of 60-100 kHz ensures optimal target separation and clarity for mid-depth fishing, making it ideal for targeting species in the upper water column. The transducer’s design features a fixed 20-degree tilt to accommodate hull deadrise angles between 16 and 24 degrees, with a ceramic element oriented to maximize echo returns even when mounted flush with the hull. This results in reliable, high-resolution imaging at speeds, with a bronze housing suited for fiberglass or wooden hulls and a 9 or 10-meter cable for flexible installation options. Equipped with water temperature sensors and depth tracking capabilities down to 400 meters, the B175MW enhances your fishing experience by providing accurate, real-time data. Compatible with Garmin fishfinders via a 12-pin connector, this transducer supports a variety of sonar functions, including depth and temperature measurements, ensuring comprehensive underwater insights. Its low-profile, thru-hull mounting style minimizes drag and maintains high resolution at speed, making it an excellent choice for serious anglers targeting pelagic species or conducting mid-depth sonar scans. Constructed in the USA by Airmar, the B175MW combines innovative technology and durable materials to deliver consistent performance across a range of vessel types and hull configurations.
Features:
