SKU:103516

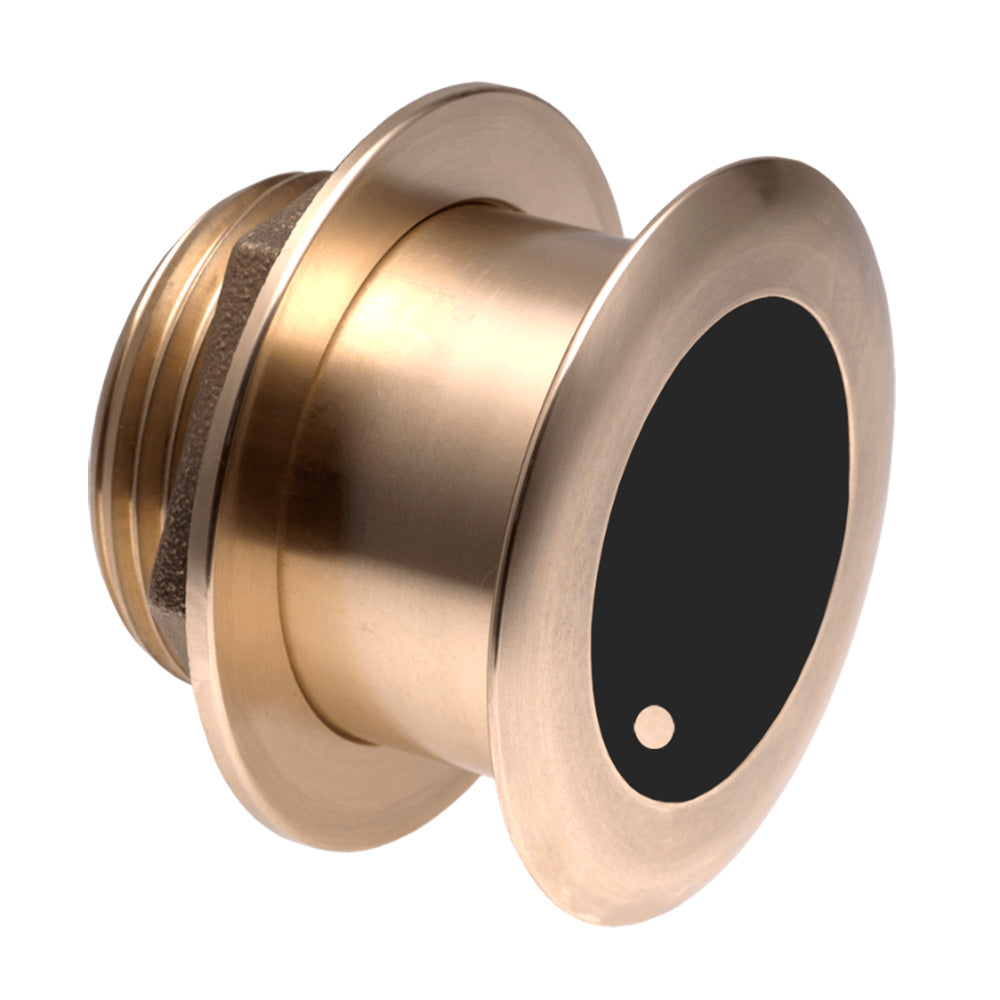

B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer Requires Mix Match Cable
Airmars innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The B175MW takes transducer design and performance to a level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73 starboard to 16 average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmars Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMARs most popular Tilted Element housings which includes a ceramic element fixed at a 20, 12 or 0 angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Features:
Specifications:
The Airmar B175MW Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer is designed for serious anglers targeting pelagic species and deep water structures. With a powerful 1 kW output, this transducer provides exceptional performance at depths up to 400 meters (1,300 feet), ensuring reliable readings in challenging environments. Its medium frequency range of 60-100 kHz offers superior mid-depth performance, making it ideal for detecting fish in the upper and mid-water columns. The transducer's ultra-wide beamwidth of 57 to 73 degrees port and starboard, combined with an 16-degree average fore-aft coverage, delivers broad, detailed sonar images over large areas, enhancing your fishfinding capabilities. The bronze housing ensures durability and compatibility with stepped, planing, or displacement hulls, while the low-profile, thru-hull design allows for installation at speeds without sacrificing resolution. The Tilted Element design, fixed at a 20-degree angle, corrects for hull deadrise and optimizes signal orientation, providing maximum echo returns regardless of hull shape. Additional features include a water temperature sensor for real-time environmental data and exclusive Xducer ID technology for system integration. This transducer is suitable for fiberglass or wooden hulls on vessels up to 36 feet long, making it a versatile choice for offshore and deep-sea anglers seeking reliable, high-performance sonar. The included 9-meter (30-foot) cable offers flexible installation options, and the urethane acoustic window ensures longevity and performance in various water conditions. Please note, this product requires a matching cable for optimal operation and may not be returnable to the point of purchase, so contact the manufacturer directly for assistance. Whether fishing for pelagic species or exploring deep structures, the Airmar B175MW delivers advanced sonar performance to elevate your fishing experience.
Features:
