Airmar B265C-LH Bronze TH Low/High CHIRP Furuno 12-Pin Mix-N-Match

Airmar B265C-LH: Advanced Bronze Low/High CHIRP Transducer with Furuno 12-Pin Compatibility

Airmar B265C-LH Bronze TH Low/High CHIRP Furuno 12-Pin Mix-N-Match

Airmar B265C-LH Bronze Thru Hull with Furuno 12-Pin Mix-N-Match Cable

Model: B265LH-12F

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet)
• High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet)
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth

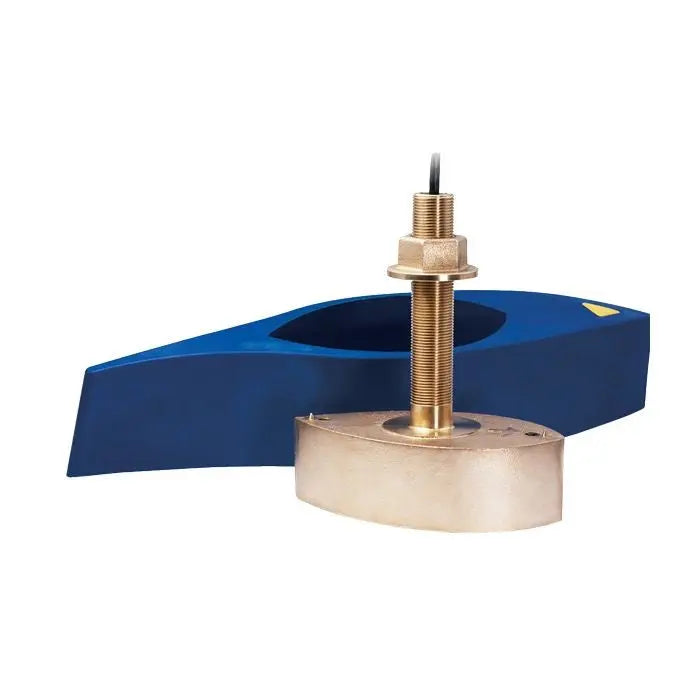

• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, beam-perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length9 m (30 feet)

Frequency Band
Low-High

High Frequency
130-210 kHz

High Frequency Beamwidth
10 deg-6 deg

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Housing Material
Bronze

Max Deadrise
Up to 20 deg with fairing

Max Depth
Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12F Cable
"

Robust Bronze Construction for Longevity and Performance

The Airmar B265C-LH stands out with its durable bronze housing, designed to deliver long-lasting performance in harsh marine environments. Bronze ensures excellent corrosion resistance, critical for saltwater applications, allowing the transducer to maintain efficiency and reliability over extended periods. This sturdy design protects the advanced electronics inside from damage due to impact or moisture, making it a dependable choice for anglers and marine professionals seeking a resilient sonar solution. Its build quality greatly enhances operational lifespan without compromising sound clarity.

Dual Frequency CHIRP Technology for Precise Target Detection

Equipped with low and high CHIRP frequencies, the Airmar B265C-LH provides clear and detailed underwater images essential for accurate fish finding and bottom tracking. The low frequency improves depth penetration, reaching greater depths, while the high frequency ensures enhanced target resolution near the surface. This dual-frequency setup enables users to adapt to varying underwater conditions and fish species, optimizing sonar returns. With CHIRP technology, the transducer reduces noise and interference, producing sharper data to improve decision making on the water.

Furuno 12-Pin Mix-N-Match Compatibility for Easy Integration

The Airmar B265C-LH transducer supports Furuno 12-pin mix-n-match connections, making it highly compatible with Furuno electronics systems. This feature facilitates effortless integration into existing navigation and sonar setups without requiring complex rewiring or adapters. The standardized pin layout streamlines installation and replacement processes, saving valuable time and cost. For boat owners upgrading or maintaining their marine electronics, this compatibility makes the B265C-LH an ideal choice to enhance sonar capabilities while maintaining system cohesion.
