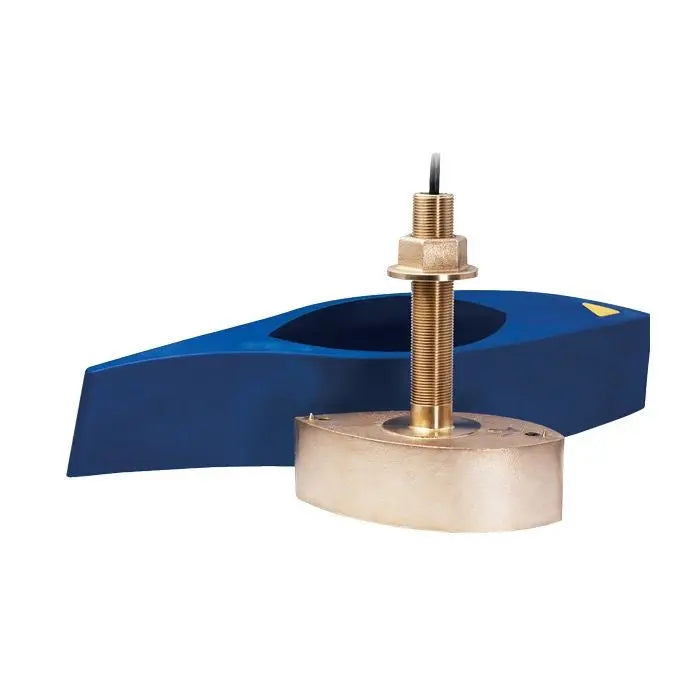

Airmar B265C-LH Bronze TH Low/High CHIRP Garmin 12-Pin Mix-N-Match

Explore the Advanced Features of the Airmar B265C-LH Transducer

Airmar B265C-LH Bronze TH Low/High CHIRP Garmin 12-Pin Mix-N-Match

Airmar B265C-LH Bronze Thru Hull with Garmin 12-Pin Mix-N-Match Cable

Model: B265LH-12G

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet)
• High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet)
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, beam-perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length9 m (30 feet)

Frequency Band
Low-High

High Frequency
130-210 kHz

High Frequency Beamwidth
10 deg-6 deg

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Housing Material
Bronze

Max Deadrise
Up to 20 deg with fairing

Max Depth
Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12G Cable
"

High-Performance Low/High CHIRP Sonar Technology

The Airmar B265C-LH transducer delivers exceptional sonar capabilities through its Low/High CHIRP technology. This allows for clear, detailed underwater imaging by transmitting a broad range of frequencies. Whether you're fishing or navigating, the precision offered by this transducer enhances target separation and depth accuracy. Its ability to switch between low and high CHIRP bands provides versatile performance that adapts to various water conditions and depths, making it an essential tool for both recreational boaters and professional anglers alike.

Durable Bronze Thru-Hull Design for Reliable Installation

Built with a bronze thru-hull housing, the Airmar B265C-LH ensures long-lasting durability and corrosion resistance in marine environments. This design supports a secure installation on your boat’s hull, optimizing signal strength and transducer performance. The bronze material also reduces noise interference from hull vibrations, enhancing sonar clarity. Its robust structure is well-suited for saltwater and freshwater applications, providing dependable operation even in harsh conditions.

Garmin 12-Pin Mix-N-Match Compatibility for Seamless Integration

Designed with a Garmin 12-pin connector, the Airmar B265C-LH fits perfectly with Garmin echo sounders, offering an easy plug-and-play experience. The Mix-N-Match feature allows users to incorporate this transducer alongside other compatible Garmin devices, enhancing system flexibility without the need for additional adapters or complex wiring. This compatibility simplifies upgrades or replacements, ensuring that boat owners can maximize their sonar systems’ performance with minimal hassle.
