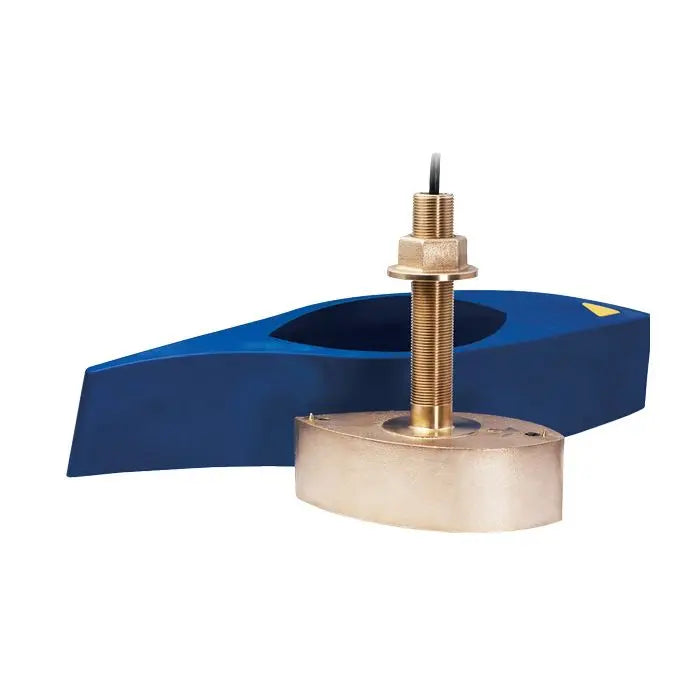

Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match

Comprehensive Overview of the Airmar B265C-LH Transducer

Airmar B265C-LH Bronze TH Low/High CHIRP With Bare Wire Mix-N-Match

Airmar B265C-LH Bronze Thru Hull with Bare Wire Mix-N-Match Cable

Model: B265LH-0

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance
• Low frequency: 42 to 65 kHz, 25 deg to 16 deg beamwidth, Maximum depth of 914 m (3000 feet)
• High frequency: 130 to 210 kHz, 10 deg to 6 deg beamwidth, Maximum depth of 304 m (1000 feet)
• 103 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar's B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, beam-perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length9 m (30 feet)

Frequency Band
Low-High

High Frequency
130-210 kHz

High Frequency Beamwidth
10 deg-6 deg

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Housing Material
Bronze

Max Deadrise
Up to 20 deg with fairing

Max Depth
Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LH-MM Transduer
• High Speed Fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-0 Cable
"

Advanced CHIRP Technology for Clearer Underwater Imaging

The Airmar B265C-LH delivers exceptional low and high CHIRP sonar frequencies, offering superior target resolution and reduced noise. Its broadband pulse technology allows for deeper and more precise underwater scanning, making it ideal for anglers and marine professionals who require reliable performance. This transducer's ability to distinguish fish and structure clearly gives users a significant advantage on the water.

Durable Bronze Housing for Long-Lasting Marine Use

Designed with a rugged bronze housing, the Airmar B265C-LH transducer is built to withstand harsh saltwater environments. Bronze not only provides excellent corrosion resistance but also enhances sound transmission, resulting in improved performance. This robustness ensures dependable operation season after season, even under demanding marine conditions.

Bare Wire Mix-N-Match Compatibility for Easy Installation

The Airmar B265C-LH features a bare wire option that allows flexible installation and seamless integration with existing marine electronics systems. This mix-n-match capability means users can customize their sonar setups efficiently without compatibility concerns. Whether for new builds or upgrades, this flexibility helps save installation time while maintaining peak sonar functionality.
