Airmar B265C-LM Bronze TH Low Medium CHIRP Bare Wire Mix-N-Match

Discover the Power of Airmar B265C-LM Transducer

Airmar B265C-LM Bronze TH Low Medium CHIRP Bare Wire Mix-N-Match

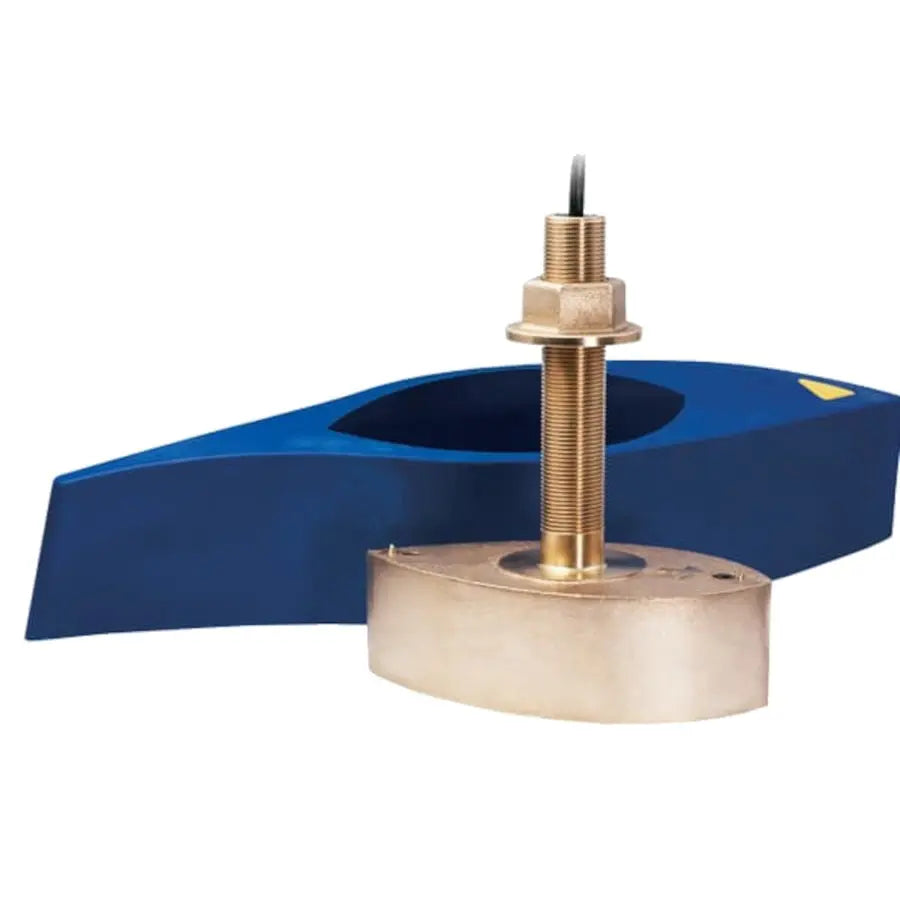

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Bare Wire Mix-N-Match Cable

Model: B265C-LM-0

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length10 m (33 feet)

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16 deg-11 deg

Max Deadrise
Up to 20 deg with fairing

Max Deadrise Angle
20 deg

Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-0 Cable
"

Exceptional Performance with CHIRP Technology

The Airmar B265C-LM transducer leverages advanced Low Medium CHIRP technology to deliver clear, precise sonar readings. This bronze TH transducer is designed to provide superior underwater imaging by transmitting and receiving a wide range of frequencies. Ideal for anglers and marine professionals, it enhances target separation and depth accuracy, ensuring you never miss a detail. Its calibration offers improved noise rejection and greater resolution in challenging water conditions.

Durable Bronze Housing for Longevity

Built with a solid bronze housing, the Airmar B265C-LM ensures exceptional durability and corrosion resistance in marine environments. This robust construction protects the sensitive internal elements from harsh saltwater exposure and physical impacts. Whether mounted on a hull or a trolling motor, the bronze casing guarantees long-term reliability and stable performance, making it a preferred choice for both recreational and commercial vessels.

Versatile Bare Wire Mix-N-Match Installation

The Airmar B265C-LM comes with bare wire connections, offering flexible installation options that adapt to various marine electronic setups. This mix-n-match capability allows installers to customize wiring lengths and terminations according to specific boat requirements. Compatible with a wide range of fishfinders and multifunction displays, it seamlessly integrates into your existing marine electronic system, providing hassle-free connectivity and enhanced sonar performance.
