Airmar B265C-LM: Advanced Bronze TH Low Medium CHIRP Transducer

Airmar B265C-LM Bronze TH Low Medium CHIRP Furuno 12-Pin Mix-N-Match

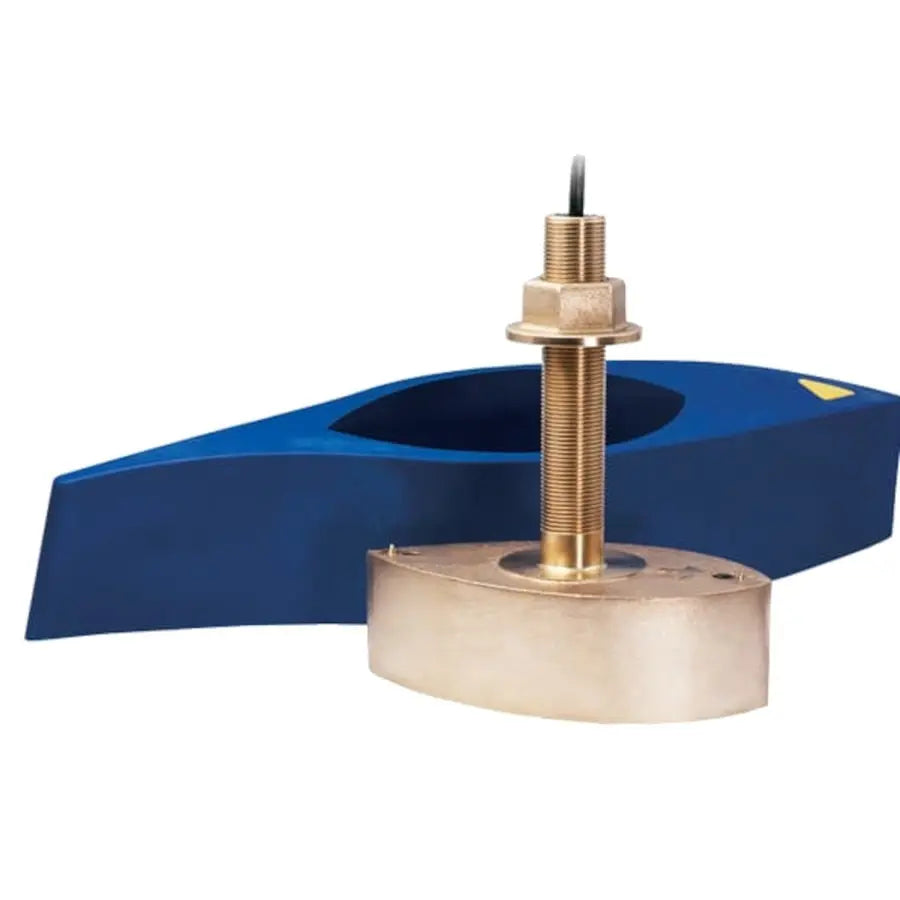

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

Model: B265C-LM-12F

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

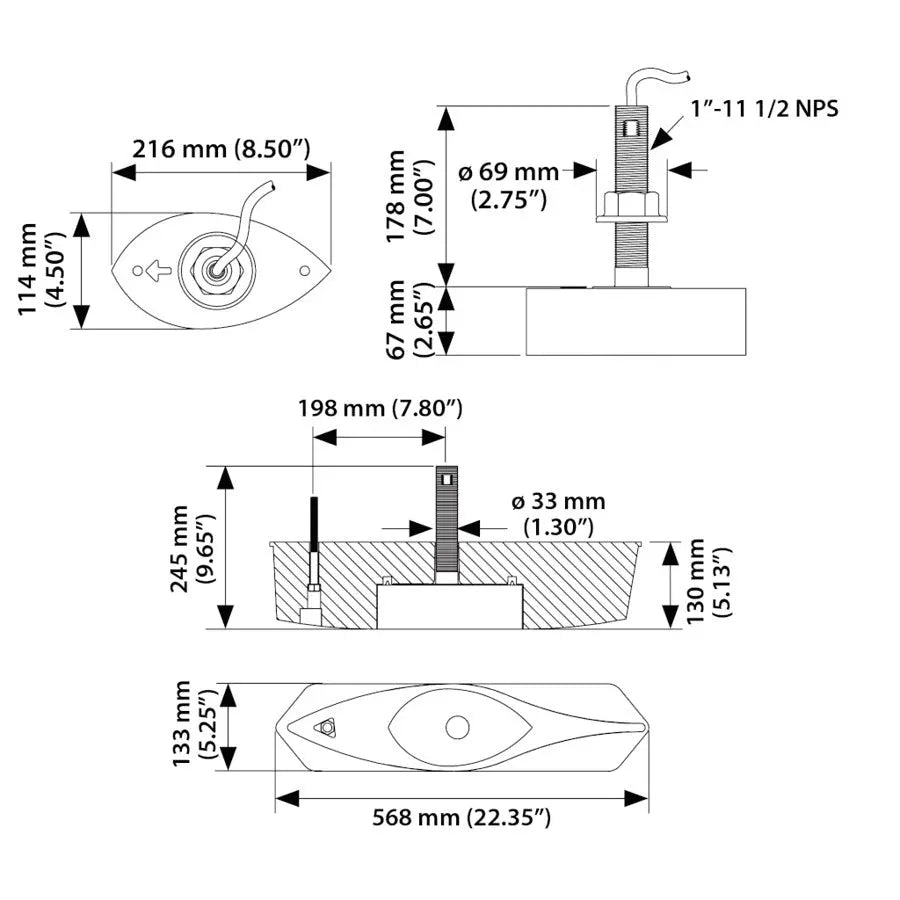

Specifications

Cable-Length10 m (33 feet)

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16 deg-11 deg

Max Deadrise
Up to 20 deg with fairing

Max Deadrise Angle
20 deg

Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12F Cable
"

High-Performance CHIRP Technology

The Airmar B265C-LM transducer employs advanced CHIRP technology, delivering clear and detailed sonar images. Designed specifically for low to medium frequency ranges, it enhances target resolution and depth accuracy. This technology is ideal for diverse fishing and navigation applications, providing consistent performance even in challenging underwater environments. Whether you are detecting fish or mapping the sea floor, the Airmar B265C-LM ensures reliable and precise readings every time.

Robust Bronze Housing for Durability

Constructed with a rugged bronze housing, the Airmar B265C-LM offers exceptional durability and corrosion resistance. This sturdy material makes it perfect for long-term use in saltwater conditions. The bronze build not only protects the internal components but also supports stable acoustic performance. Boaters and fishing enthusiasts can trust this transducer to withstand harsh marine environments without compromising its functionality over time.

Seamless Compatibility with Furuno 12-Pin Systems

This transducer is designed to be fully compatible with Furuno 12-pin sonar units, making it a versatile option for upgrades or replacements. The mix-and-match fit simplifies installation while maintaining system integrity. Users can enjoy enhanced sonar clarity without worrying about compatibility issues. The Airmar B265C-LM integrates seamlessly to extend the capabilities of Furuno systems, delivering reliable performance for professional and recreational use.
