Airmar B265C-LM Bronze TH Low Medium CHIRP Garmin 12-Pin Mix-N-Match

Airmar B265C-LM: Advanced Bronze TH Low Medium CHIRP Transducer for Garmin Systems

Airmar B265C-LM Bronze TH Low Medium CHIRP Garmin 12-Pin Mix-N-Match

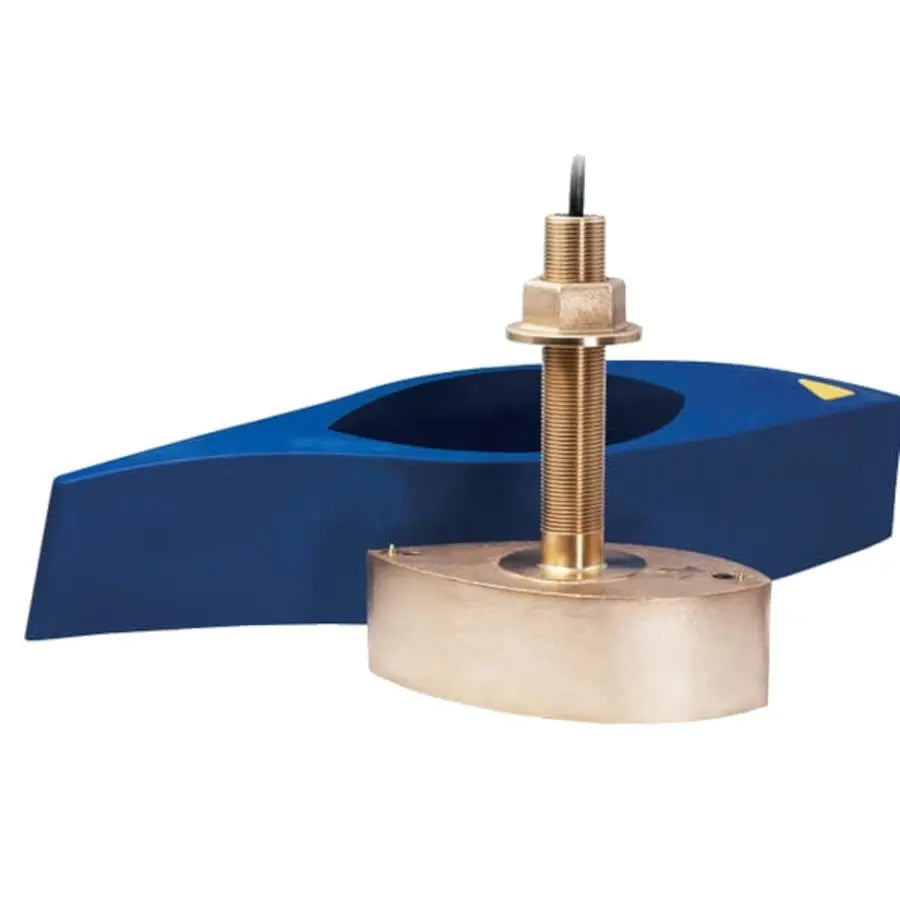

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Garmin 12-PinMix-N-Match Cable

Model: B265C-LM-12G

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

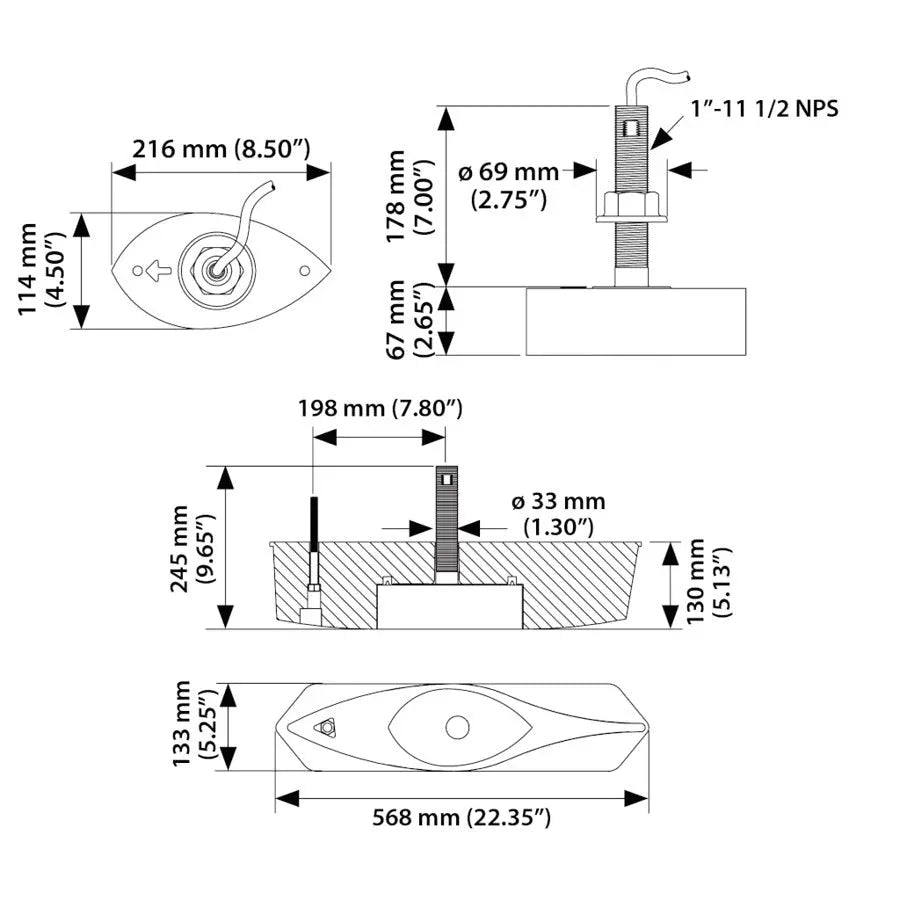

Specifications

Cable-Length10 m (33 feet)

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16 deg-11 deg

Max Deadrise
Up to 20 deg with fairing

Max Deadrise Angle
20 deg

Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-12G Cable
"

Superior Sonar Performance with Low and Medium CHIRP

The Airmar B265C-LM offers exceptional sonar resolution thanks to its low and medium CHIRP capabilities. This dual-frequency operation enables sharp target definition and improved bottom tracking even in challenging water conditions. Anglers and boaters benefit from clearer fish arches, reduced noise, and increased depth accuracy. The transducer’s advanced design ensures consistent signal penetration, making it a reliable choice for both freshwater and saltwater applications.

Durable Bronze Housing for Long-Lasting Marine Use

Constructed with robust bronze housing, the Airmar B265C-LM transducer provides outstanding durability in harsh marine environments. Bronze is highly resistant to corrosion caused by saltwater, helping extend the life of the transducer. This rugged build protects the sensitive elements inside from impact and wear, ensuring stable performance season after season. The bronze design also minimizes signal interference, offering consistent and dependable sonar readings.

Garmin 12-Pin Connectivity for Easy Installation

Compatibility with Garmin 12-pin connectors makes the Airmar B265C-LM a versatile and user-friendly transducer option. Its mix-n-match feature allows seamless integration with a variety of Garmin chartplotters and fish finders. The plug-and-play 12-pin interface simplifies installation and reduces setup time. With this compatibility, users can upgrade or customize their sonar systems without worrying about complicated wiring or adapter requirements.
