Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable

Airmar B265C-LM: Advanced Bronze CHIRP Transducer with Navico 9-Pin Y-Cable

Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Navico 9-Pin mix-N-Match Cable

Model: B265C-LM-9N2

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths

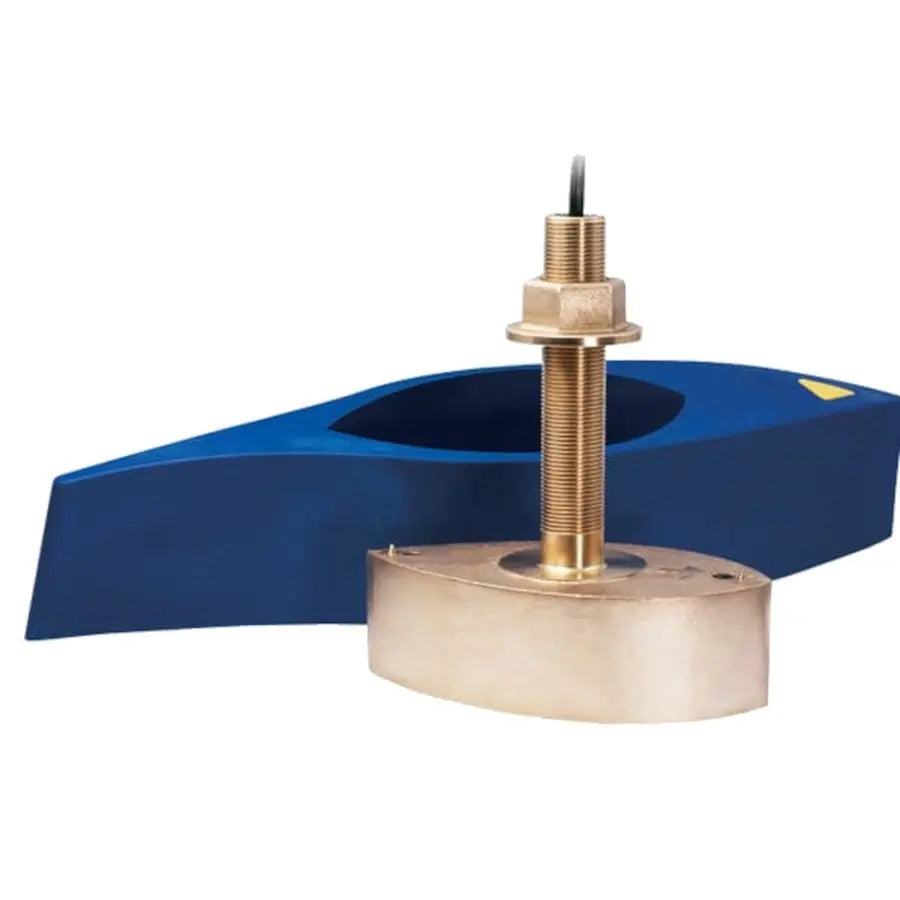

• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length10 m (33 feet)

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16 deg-11 deg

Max Deadrise
Up to 20 deg with fairing

Max Deadrise Angle
20 deg

Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-P2N Cable
"

Premium Build and Durable Bronze Housing

The Airmar B265C-LM features a robust bronze housing designed for long-lasting marine use. Bronze construction ensures superior corrosion resistance, essential for saltwater environments. This durable transducer withstands harsh conditions while maintaining reliable performance. Its thoughtfully engineered design minimizes vibrations and noise interference, enhancing sonar clarity. Whether you're using it for fishing or navigation, the bronze body offers excellent protection, extending the lifespan of your investment. With Airmar's reputation for quality, this transducer meets demanding standards for marine electronics.

Low-Medium CHIRP Frequency for Enhanced Sonar Imaging

Equipped with Low-Medium CHIRP technology, the Airmar B265C-LM provides exceptional underwater imaging and target separation. This feature allows fishermen and mariners to detect fish and underwater structures with remarkable accuracy. The CHIRP frequencies cover a broad range, improving both shallow and mid-depth sonar returns. By offering better detail and resolution, it helps users interpret sonar data more clearly. This transducer is ideal for users who require dependable information to make quick decisions while on the water.

Compatible Navico 9-Pin Y-Cable Integration

The Airmar B265C-LM comes with a Navico 9-pin Y-cable designed for seamless connection to Navico sonar systems and multifunction displays. This dedicated cable ensures stable data transmission and simplifies installation, reducing downtime. The Y-cable allows compatibility with multiple devices from Navico, making it versatile for various marine electronics setups. By integrating smoothly into existing systems, it provides a plug-and-play experience that benefits professional mariners and recreational boaters alike. This accessory complements the transducer's performance perfectly.
