Airmar B265C-LM Bronze TH Low Medium CHIRP Raymarine 11-Pin Y-Cable

Explore the Airmar B265C-LM Bronze TH Low Medium CHIRP Transducer Features

Airmar B265C-LM Bronze TH Low Medium CHIRP Raymarine 11-Pin Y-Cable

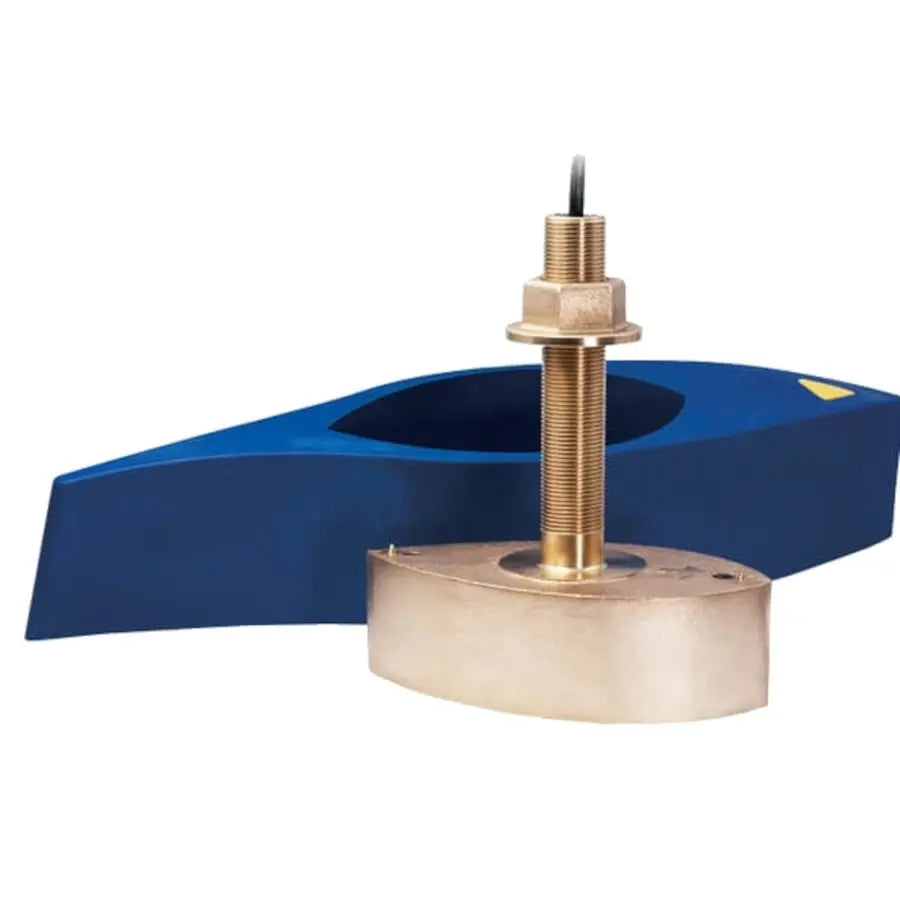

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B265C-LM-11R

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz - 25 deg to 16 deg beamwidth - Maximum depth of 914 m (3000 feet)
• Medium frequency: 85 to 135 kHz - 16 deg to 11 deg beamwidth - Maximum depth of 457 m (1500 feet)
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Patented Xducer ID(R) technology
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID(R) technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000 feet). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications

Cable-Length10 m (33 feet)

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25 deg-16 deg

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16 deg-11 deg

Max Deadrise
Up to 20 deg with fairing

Max Deadrise Angle
20 deg

Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75)

What's in the Box:

• B265C-LM-MM Transducer
• High Speed fairing Block
• High Speed Fairing Block Bolt Kit
• MMC-11RLDB Cable
"

Superior Design and Durability

The Airmar B265C-LM transducer is crafted from bronze, offering outstanding durability and resistance to harsh marine environments. Its thru-hull (TH) design ensures stable installation on your vessel, offering reliable sonar performance. Ideal for boats requiring a robust and long-lasting sonar solution, this transducer withstands wear and corrosion from saltwater exposure, guaranteeing longevity. The bronze construction also enhances signal clarity by minimizing interference, providing high-quality sonar data for safer navigation and enhanced underwater visibility.

Advanced Low Medium CHIRP Technology

Equipped with Low and Medium CHIRP frequencies, the Airmar B265C-LM delivers exceptional sonar clarity and target resolution. This technology enables the transducer to send a swept-frequency sonar pulse, which improves target separation and depth accuracy. For anglers and marine professionals, this means clearer images of fish, structures, and the seabed. The enhanced CHIRP performance helps to reduce noise, producing crisp and detailed underwater visuals that facilitate better decision-making on the water.

Raymarine 11-Pin Y-Cable Compatibility

This transducer includes a Raymarine 11-pin Y-cable, designed for easy integration with compatible Raymarine sonar and fishfinder units. The Y-cable simplifies installation by connecting the transducer and power supply through a single harness, reducing clutter and potential connection issues. This compatibility ensures users can quickly upgrade or replace parts without complex rewiring. It also supports efficient data transfer, maintaining high-fidelity sonar signals essential for precise marine navigation and fishing applications.
