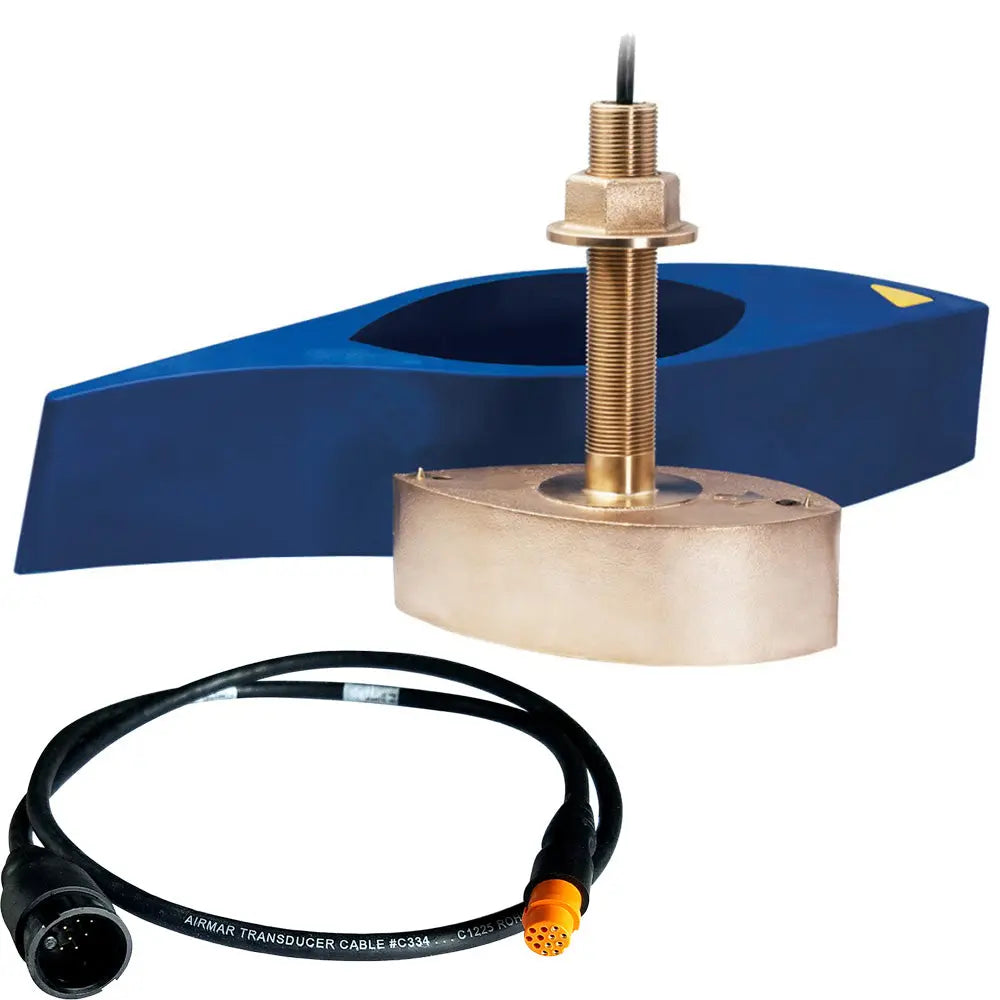

B275LH-W Bronze Thru-Hull for Garmin with 12-Pin Connector
Get more coverage under your boat with Airmars unique wide-beam, low and high-frequency, Chirp-ready B275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies, which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmars Chirp-ready transducers with wide-beam coverage.
The included High-performance Fairing improves broadband results at speeds over 30 knots (34 MPH).
Features:
- Garmin 12-Pin Mix Match Cable for Chirp Transducers
- Depth and fast-response water-temperature sensing
- 1KW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65 kHz
- 25 to 16 beamwidth
- Maximum depth of 914 m (3000)
- High frequency: 150 to 250 kHz
- 25 constant beamwidth
- Maximum depth of 152 m (500)
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper water column
- Bronze housing with High-performance Fairing for optimal performance at higher speeds
- Also available as transom (TM275LHW) and pocket (PM275LHW) mounts
- Patented Xducer ID technology
Specifications
- Brand: Airmar Technology
- Acoustic Window: Urethane
- Cable-Length: 10 m (33)
- Common Use: Fishing, Commercial Fishing
- Connector: Garmin 12-Pin
- Country of Origin: USA
- Cross Reference: 010-12183-20
- Deadrise Range: Up to 28 with fairing
- Display Connector: 12G
- Frequency Band: Low-High Wide
- High Frequency: 150-250 kHz
- High-Wide Beamwidth: 25
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25-16
- Material: Bronze
- Max Deadrise: Up to 20 with fairing
- Max Depth: Low frequency- 914 m (3000), High wide frequency- 152 m (500)
- Mix and Match Series: 12-Pin Chirp
- Sensor Connector: MMC
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Weight: 7.3 kg (16 lbs.)
- Power Rating: 1 kW
- Max Deadrise Angle: 20
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Mounting Style: Thru-Hull with Fairing
- Max Vessel LOA: 8 m (25) and above
- Hole Size: 30 mm (1-3/16)
- Usable Shaft Length: 121 mm (4.75)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Enhance your marine fishing and navigation capabilities with the Airmar B275LH-W Bronze Chirp Thru-Hull transducer designed for Garmin systems. This high-performance transducer features a patented Chirp-ready dual-band frequency range, operating from 42 to 250 kHz, providing exceptional resolution and maximum coverage beneath your vessel. Its wide-beam design, with a constant 25-degree beamwidth in high frequency, ensures superior shallow-water performance, detailed bottom imaging, and precise fish-target separation, making it ideal for both inshore and pelagic fishing. Equipped with 1 kW of power, it supports deep-water depths of up to 3,000 feet, ensuring reliable performance in various marine environments. The bronze housing with a high-performance fairing enhances stability at speeds over 30 knots (34 MPH), maintaining broadband results and optimal operation at higher velocities. This transducer includes a Garmin 12-pin mix-and-match cable for seamless integration with compatible Garmin chartplotters and fishfinders, offering depth and fast-response water-temperature sensing for comprehensive underwater data. Its versatile mounting options include thru-hull with fairing, transom, and pocket mounts, accommodating vessels up to 26 feet in length with a maximum deadrise angle of 20 degrees. Crafted from durable bronze and featuring patented Xducer ID technology, this transducer guarantees reliable performance and easy identification across multiple devices. Whether you're deep-sea fishing or navigating complex coastal waters, the Airmar B275LH-W provides extensive coverage, high-resolution imaging, and robust construction for consistent, professional-grade results.
Features:
- Garmin 12-Pin mix-and-match cable for seamless transducer compatibility
- Depth and water-temperature sensing for comprehensive underwater monitoring
- 1 kW power rating supports deep-water fishing up to 3,000 feet
- Low frequency: 42 to 65 kHz for deep-water performance
- High frequency: 150 to 250 kHz delivers superior shallow-water detail
- Constant 25-degree beamwidth ensures consistent coverage and resolution
- Maximum depth of 3,000 feet in low frequency, 500 feet in high frequency
- 123 kHz total bandwidth covers popular fishing frequencies including 50 and 200 kHz
- Wide-beam high-frequency output for better fish detection and bottom detail
- Bronze housing with high-performance fairing for stability at speeds over 30 knots
- Available in transom and pocket mount options for versatile installation
- Patented Xducer ID technology simplifies device integration and identification
