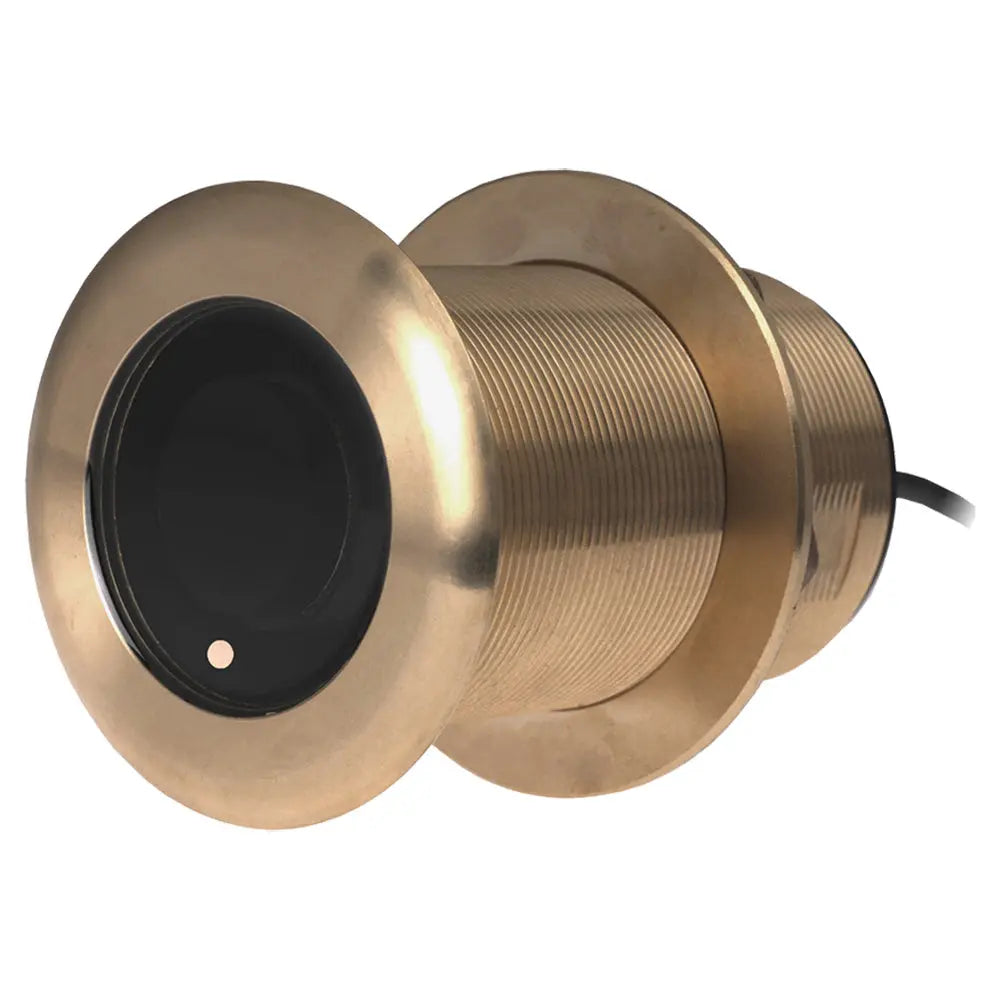

Airmar B60-20-MM Bronze Thru-Hull Transducer with Tilted Element for Accurate Depth and Temperature Readings

B60 20 Bronze Thru-Hull Mix Match Cable Needed

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Up to 24
• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs)

The Airmar B60-20-MM is a high-performance 600-watt transducer designed for accurate depth and water temperature measurement, ideal for center-console and trailered boats. Featuring a Tilted Element technology, this transducer has a ceramic element fixed at a 20-degree angle within a low-profile bronze housing, which extends only 5 mm outside the hull. When installed almost flush with the hull, the tilt corrects for deadrise angles up to 24 degrees, ensuring the beam is oriented directly downward for maximum echo return and precise readings. This design minimizes impact on boat performance while providing reliable data for navigation and fishing activities.

Features:

• Depth and fast-response water temperature sensing

• 600 W power rating for robust performance

• Dual-frequency operation with 50 kHz and 200 kHz for versatile depth performance

• 50 kHz with a 45-degree beamwidth for depths up to 1,200 feet (366 meters)

• 200 kHz with a 12-degree beamwidth for depths up to 700 feet (206 meters)

• Perfect for fiberglass or wood hulls with bronze housing

• Low-profile design extends only 5 mm outside the hull to minimize hydrodynamic impact

• Compatible with vessels up to 26 feet (8 meters) in length

• Suitable for leisure boating, yachting, and fishing applications

• Includes a mix-and-match cable option for flexible installation
