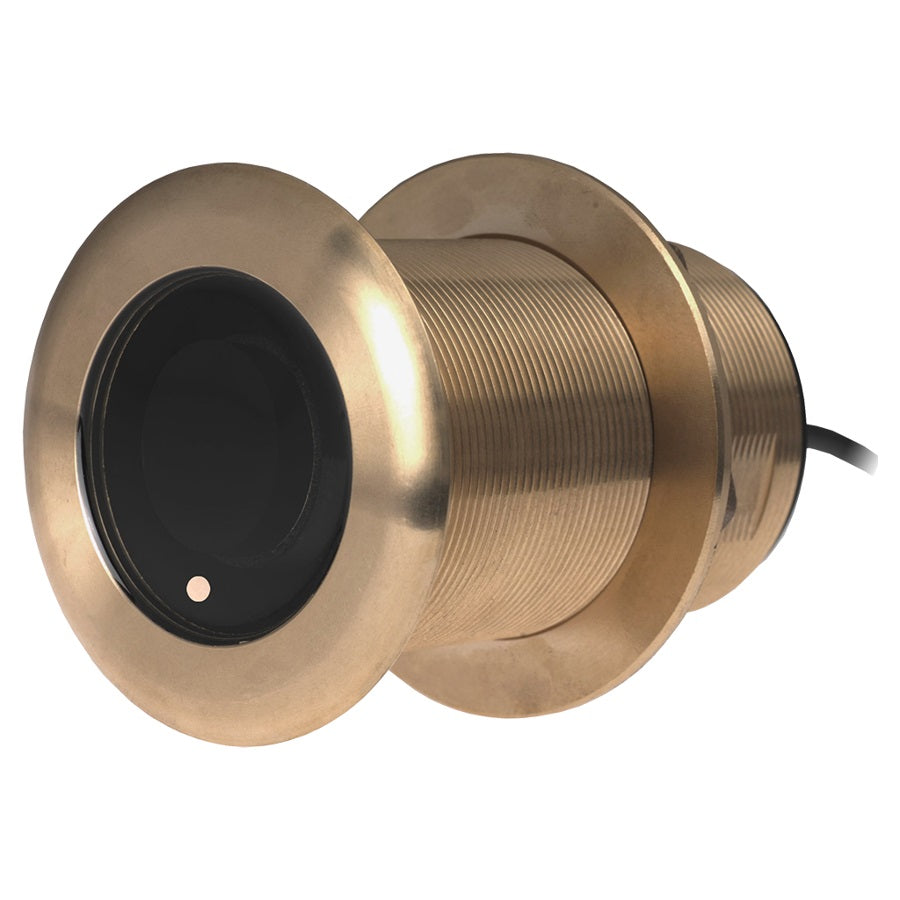

Airmar B60 50/200 Khz 12DEG Tilted Element Garmin 8 Pin

Airmar B60 50/200 Khz 12DEG Tilted Element Garmin 8 Pin

Airmar B60 50/200kHz 600 Watt 12 Degree Tilted Element Depth and Temperature with a Garmin 8-Pin

• Depth and fast-response water temperature sensing


• 600 W of power


• 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')


• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')


• Perfect for center-console or trailered boats


• Low-profile bronze housing extends only 5 mm (3/16") outside the hull


• No effect on your boat’s running performance


• Bronze housing for fiberglass or wood hull

Acoustic Window
Urethane

Cable-Length
10 m (33')

Connector
Garmin 8-Pin

Conventional Beam
45°/12°

Deadrise Range
8° to 15°

Frequency Band
50/200 kHz

Material
Bronze

Max Depth
Low frequency- 366 m (1200'), High frequency- 206 m (700')

Tilt Angle
12°

Weight
1.4 kg (3 lb.)

Power Rating
600 W

Functions
Depth, Temperature

Hole Size
60 mm (2-3/8")

Usable Shaft Length
68.5 mm (2.70")
