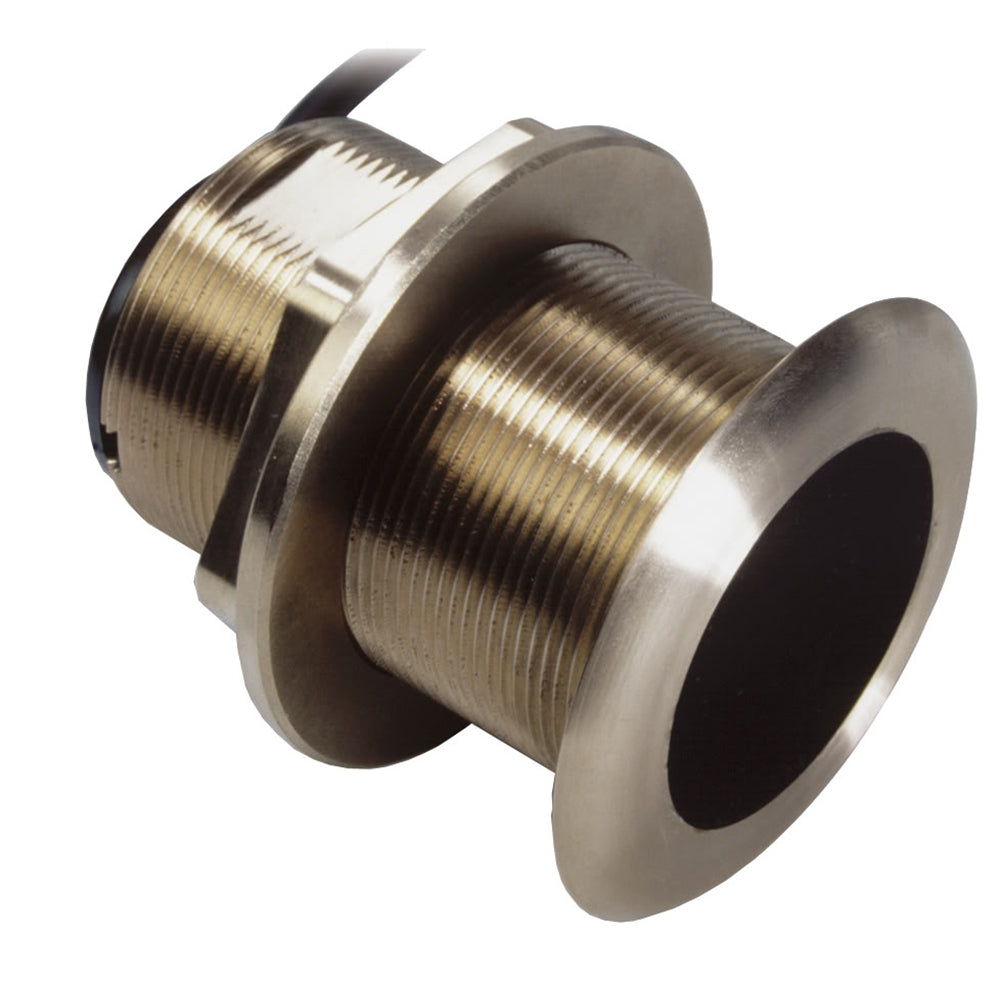

Airmar B60 Bronze Thru-Hull Transducer with Humminbird #9 7-Pin Plug – 20 ft Cable for Up to 25 ft Boats

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 20

The bronze B60-20 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8 m (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24
• Acoustic Window: Urethane

The Airmar B60-20 Bronze Thru-Hull Transducer is designed for reliable and precise depth measurement on center-console and trailered boats up to 25 feet. Its durable bronze housing ensures long-lasting performance in various marine environments, while the low-profile design minimizes drag and does not affect your boat's running performance. The transducer features a nearly-flush profile with only 3/16 inches (5 mm) extending outside the hull, reducing turbulence and improving stability at speed. Inside, the ceramic element is tilted for built-in deadrise compensation, providing a vertical beam that offers excellent echo returns for more accurate depth readings even in challenging conditions.

Features:

• Engineered for center-console and trailered boats up to 25 feet

• Low-profile bronze housing minimizes drag and hydrodynamic impact

• Vertical beam provides accurate depth readings with excellent echo returns

• Tilted ceramic element inside housing for built-in deadrise compensation

• Includes built-in temperature sensor for additional data

• Arrow on cap indicates correct installation direction toward keel

• Compatible with Humminbird #9 7-Pin plug with 20 ft cable
