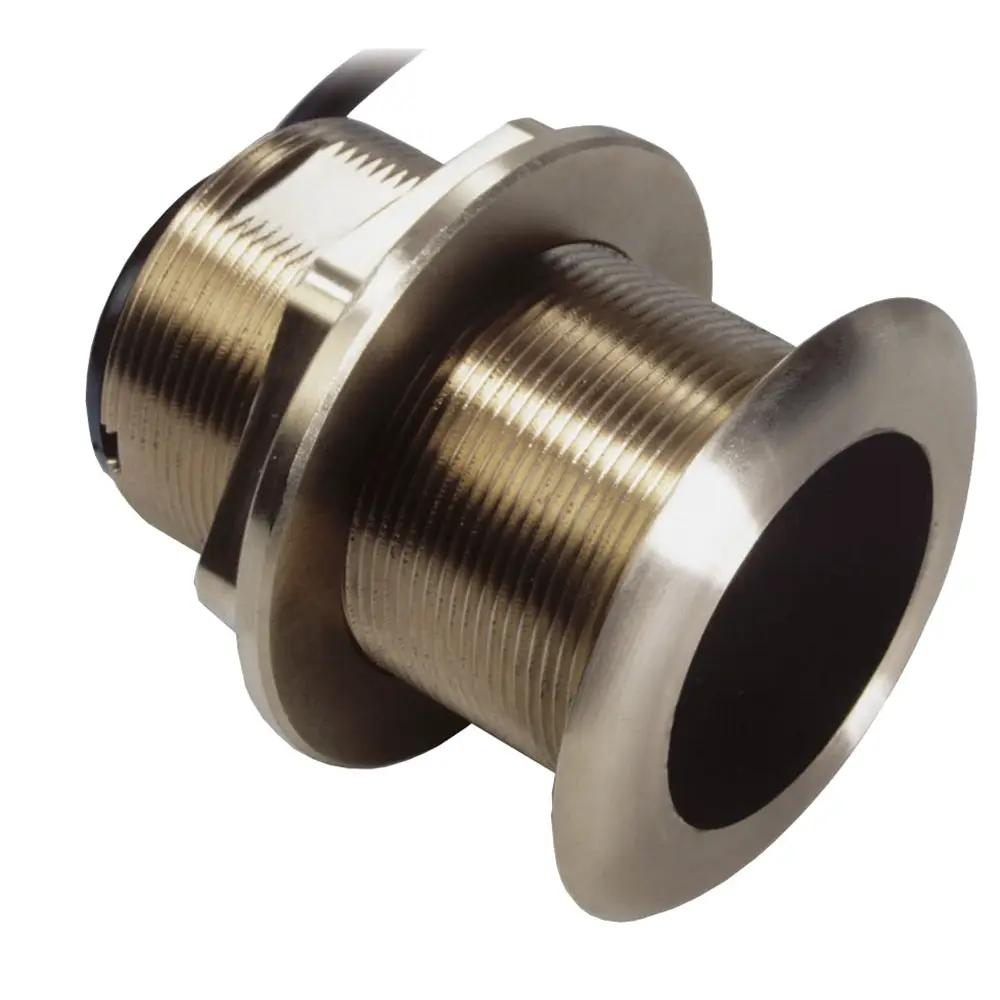

Airmar B60-12-HB Bronze Thru-Hull Transducer with Humminbird Plug

The bronze B60-12-HB Thru-Hull Transducer delivers a precise depth read with a vertical beam and a nearly flush housing that extends only 5 mm (3/16 in) outside the hull. Inside, the ceramic element is tilted for built-in deadrise compensation, yielding reliable echo returns across typical hull angles.

• Low-profile, nearly flush design minimizes drag on center-console and trailered boats
• Bronze transducer housing for corrosion resistance in harsh marine environments
• Vertical beam for accurate depth readings; arrow on the cap indicates keel direction during installation
• Built-in temperature sensor for water temperature monitoring
• Includes Humminbird #9 7-pin plug and a 25-foot cable for straightforward integration
• Boat Size: Up to 8M (25')
• Weight: 1.4 kg (3 lb); Hull Deadrise: Up to 24; Acoustic Window: Urethane

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12

The bronze B60-12 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8M (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24
• Acoustic Window: Urethane

The Airmar B60-12 Bronze Thru-Hull Transducer is designed for reliable and accurate depth measurement on center-console and trailered boats up to 25 feet in length. Its durable bronze housing ensures longevity and corrosion resistance in harsh marine environments. The transducer features a tilted ceramic element inside the housing, providing built-in deadrise compensation and delivering precise echo returns for improved depth accuracy. Its nearly flush design with only 3/16 inch (5 mm) protruding minimizes drag and maintains optimal boat performance. The arrow on the cap indicates proper orientation toward the keel during installation for consistent results. Additionally, the built-in temperature sensor allows for monitoring water temperature, enhancing navigation and fish-finding capabilities.

Features:

• Engineered for center-console and trailered boats up to 25 feet

• Low-profile, nearly flush housing minimizes drag and water resistance

• Vertical beam design ensures accurate echo returns for precise depth readings

• Built-in temperature sensor for water temperature monitoring

• Arrow indicator on cap aligns transducer toward keel during installation

• Constructed from durable bronze for corrosion resistance

• Includes Humminbird #9 7-pin plug and 25-foot cable for easy installation
