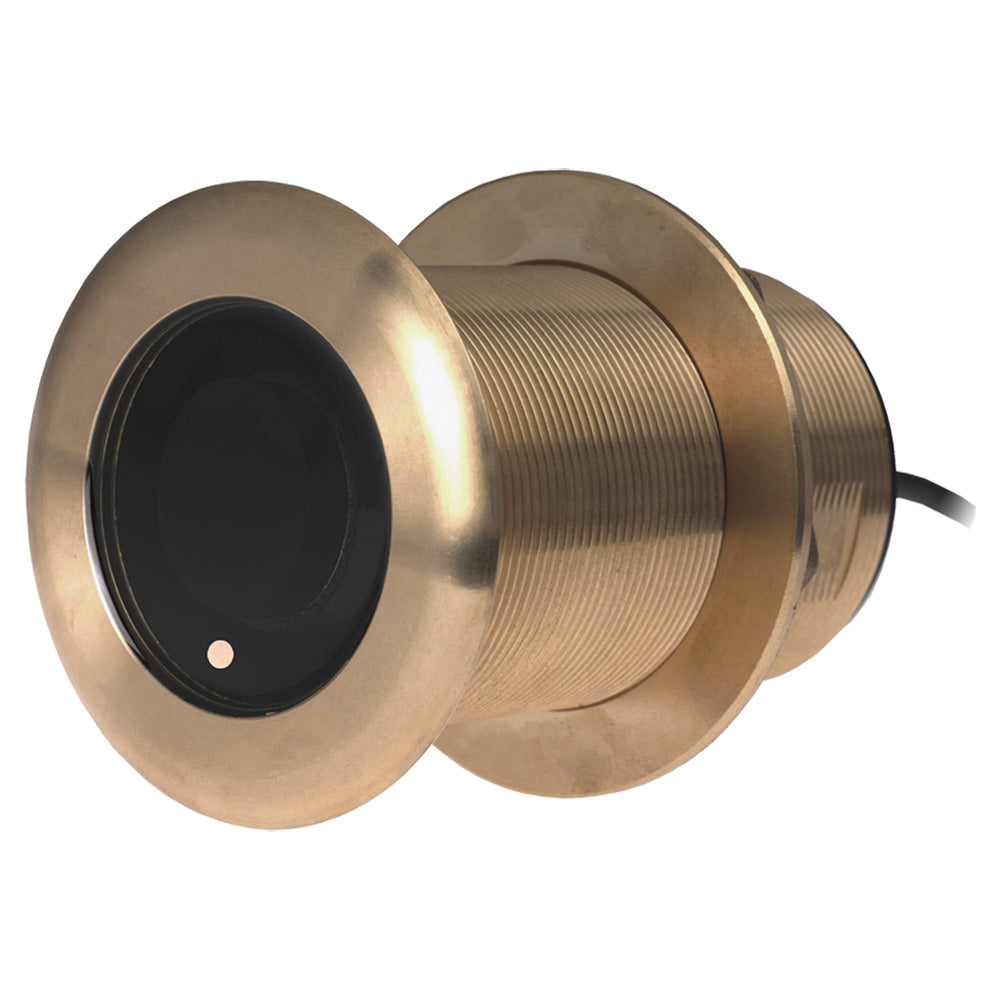

Airmar B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonic

B60 Thru-Hull Transducer 20 Tilt 9-Pin for Navico xSonic

The B60 is a 600W, 50/200 kHz transducer that integrates Airmars popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at a 20 angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.

Features:

• Depth and fast-response water temperature sensing
• 600 W of power
• Dual-frequency element:
  • 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)
  • 200 kHz with a 12 beamwidth for depth performance to 206 m (700)
• Perfect for center-console or trailered boats
• Low-profile bronze housing extends only 5 mm (3/16) outside the hull
• No effect on your boats running performance
• Bronze housing for fiberglass or wood hull
• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600 W
• Max Deadrise Angle: 24
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 8 m (26)
• Hole Size: 60 mm (2-3/8)
• Usable Shaft Length: 68.5 mm (2.70)
• Acoustic Window: Urethane
• Common Use: Leisure/Yachting, Fishing
• Conventional Beam: 45/12
• Max Deadrise: Up to 24
• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Single or Dual Frequency: Conventional Dual Frequency
• Tilted Element: Yes
• Weight: 1.4 kg (3 lbs.)

The Airmar B60 Thru-Hull Transducer offers reliable depth and water temperature measurement for your boat with a 600-watt power rating. Featuring a uniquely tilted ceramic element fixed at a 20-degree angle, this transducer is designed to optimize performance when installed flush with the hull, compensating for deadrise angles up to 24 degrees. Its precision orientation ensures maximum echo return, providing accurate depth readings whether you're navigating deep waters or fishing in shallow areas. The transducer's low-profile bronze housing extends only 5 mm outside the hull, minimizing drag and maintaining your vessel's performance on both fiberglass and wooden hulls. It is well-suited for center-console and trailered boats up to 26 feet in length, delivering dependable data without affecting your boat's speed or agility. The dual-frequency element includes 50 kHz for broad depth range up to approximately 1,200 feet and 200 kHz for higher detail at depths up to 700 feet, making it versatile for various marine applications. Designed specifically for the Navico xSonic system, this transducer features a 9-pin connector and is constructed with durable urethane acoustic windows for longevity in harsh marine environments. The bronze housing ensures compatibility with fiberglass or wood hulls, while stainless steel options are also available for different vessel materials. Easy to install with a 60 mm hole diameter, the B60 transducer can handle vessels with a maximum deadrise angle of 24 degrees. Its compact design and high power output make it ideal for leisure yachting, fishing, and recreational boating, providing precise depth and temperature data to enhance your marine navigation experience.

Features:

• Depth and water temperature sensing for accurate navigation and fishing

• 600 W power rating for reliable performance

• Dual-frequency operation: 50 kHz with a 45° beamwidth for deep water up to 353 meters (1,200 feet) and 200 kHz with a 12° beamwidth for shallower depths up to 206 meters (700 feet)

• Tilted Element design at 20° angle for optimal hull deadrise compensation

• Low-profile bronze housing extending only 5 mm outside the hull for minimal drag

• Suitable for fiberglass and wood hulls, with stainless steel housing options available

• Designed for vessels up to 8 meters (26 feet) in length

• Simple installation with a 60 mm hole size and compatible with Navico xSonic systems

• Durable urethane acoustic window for long-lasting performance in marine environments

• Ideal for leisure, yachting, and fishing activities
