SKU:109046

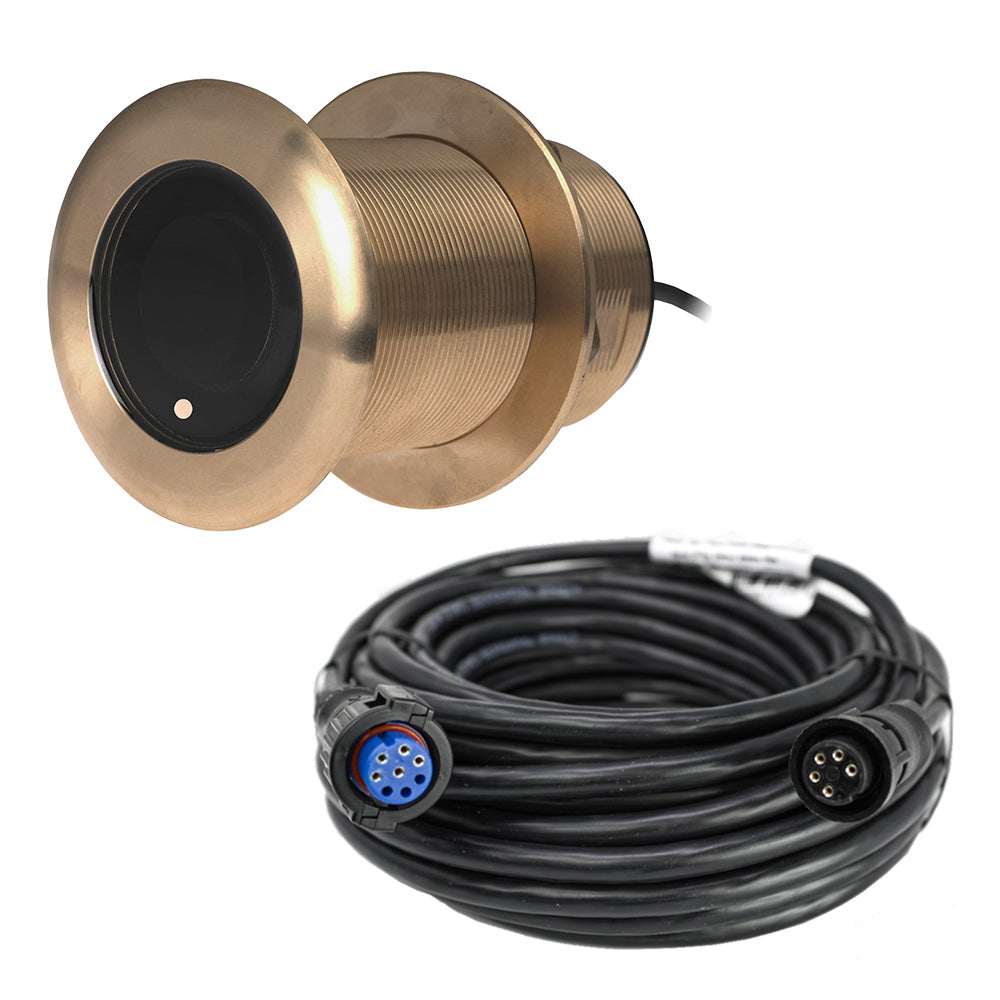

B75 High 20 Degree CHIRP Transducer 8-Pin for Garmin
Airmars Broadband/CHIRP transducers represent the next generation of technology that will allow fishermen to unlock secrets in fishfinding. Echosounder operation away from the traditional 50 kHz and 200 kHz has proven that different fish species return better signals at various frequencies. Airmars Broadband Transducers are capable of operating over a wide (or Broad) frequency band ranging from 25 kHz to 60 kHz and from 130 kHz to 210 kHz.
Traditional fishfinders transmit a pulse at a single frequency (50 kHz or 200 kHz), which is often referred to as a tone burst. Better deep-water and bottom detection is obtained by transmitting a longer pulse, because the fishfinder is delivering more energy to the transducer. However, the drawback of a long pulse is that it provides reduced target resolution. For example, if a fishfinder transmits a pulse that is 500 microseconds in duration, it has a pulse length of 0.7 m (2.4). With a tone burst, no targets can be resolved that are closer to one another than the pulse length. Fish less than 0.7 m (2.4) apart, or less than 0.7 m (2.4) from the bottom, can not be detected. Fish schools will appear in this case as a single large mass, while fish close to the bottom will appear attached to the sea bed and will be difficult or impossible to detect.
With CHIRP, the transmission pulses are typically very long and may start at 40 kHz and end at 60 kHz. By comparing the shape of the stored transmission pulse with the received echoes from the transducer, it is possible to find echoes in the noise and precisely determine their range with astounding accuracy.
Using CHIRP, it is now possible to obtain:
Because weak fish and bottom echoes can be resolved within the noise (the snow on a conventional fishfinder display), it is possible both to detect targets at far greater depths than before and track the bottom at higher boat speeds.
Features:
The Airmar B75 High 20 Degree CHIRP Transducer for Garmin provides advanced fishfinding capabilities with its broadband CHIRP technology. This transducer operates over a wide frequency range from 25 kHz to 60 kHz and 130 kHz to 210 kHz, enabling fishermen to detect fish and bottom structures more accurately across various depths. Unlike traditional fishfinders that transmit at single frequencies, the B75 uses long pulses swept across a broad frequency band, allowing for superior resolution and range. This results in clearer separation of closely spaced fish and better identification of bottom features, even at greater depths and higher boat speeds. The integration of CHIRP technology minimizes noise and enhances target detection, making it ideal for both recreational and professional fishing applications. The transducer includes a 12-meter (40-foot) cable and features a depth and water temperature sensor for comprehensive underwater insights. Its bronze housing ensures durability in harsh marine environments, compatible with boats up to 8 meters (25 feet) with fiberglass or wooden hulls. The B75’s low-profile design and performance characteristics align with the specifications of the B765LH/LM series, ensuring reliable operation and high-quality imaging. Whether fishing in shallow or deep waters, this transducer enhances your fishfinding experience with precise target location and detailed bottom imaging, contributing to more successful outings. Easy to install and durable, the Airmar B75 is a versatile choice for boaters seeking advanced sonar capabilities in a compact form factor.
Features:
