Airmar B75C-0-M 0d Tilt Medium CHIRP Garmin 12-Pin Cable

Airmar B75C-0-M: High-Performance Medium CHIRP Sonar Transducer with Garmin 12-Pin Cable

Airmar B75C-0-M 0d Tilt Medium CHIRP Garmin 12-Pin Cable

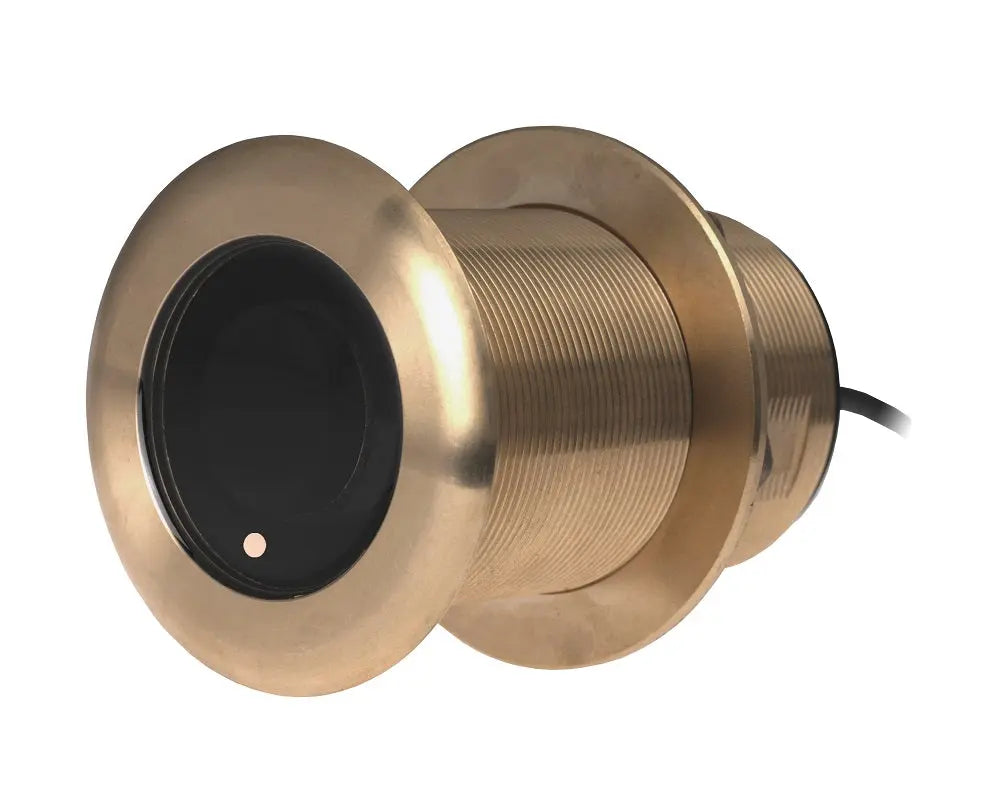

Airmar B75C 0 deg tlted element Medium CHIRP Bronze Thru Hull with Garmin 12-Pin Mix-N-Match Cable

Model: B75C-0-M-12G

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900 feet)
• Medium frequency: 80 to 130 kHz
• 24 deg to 16 deg beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

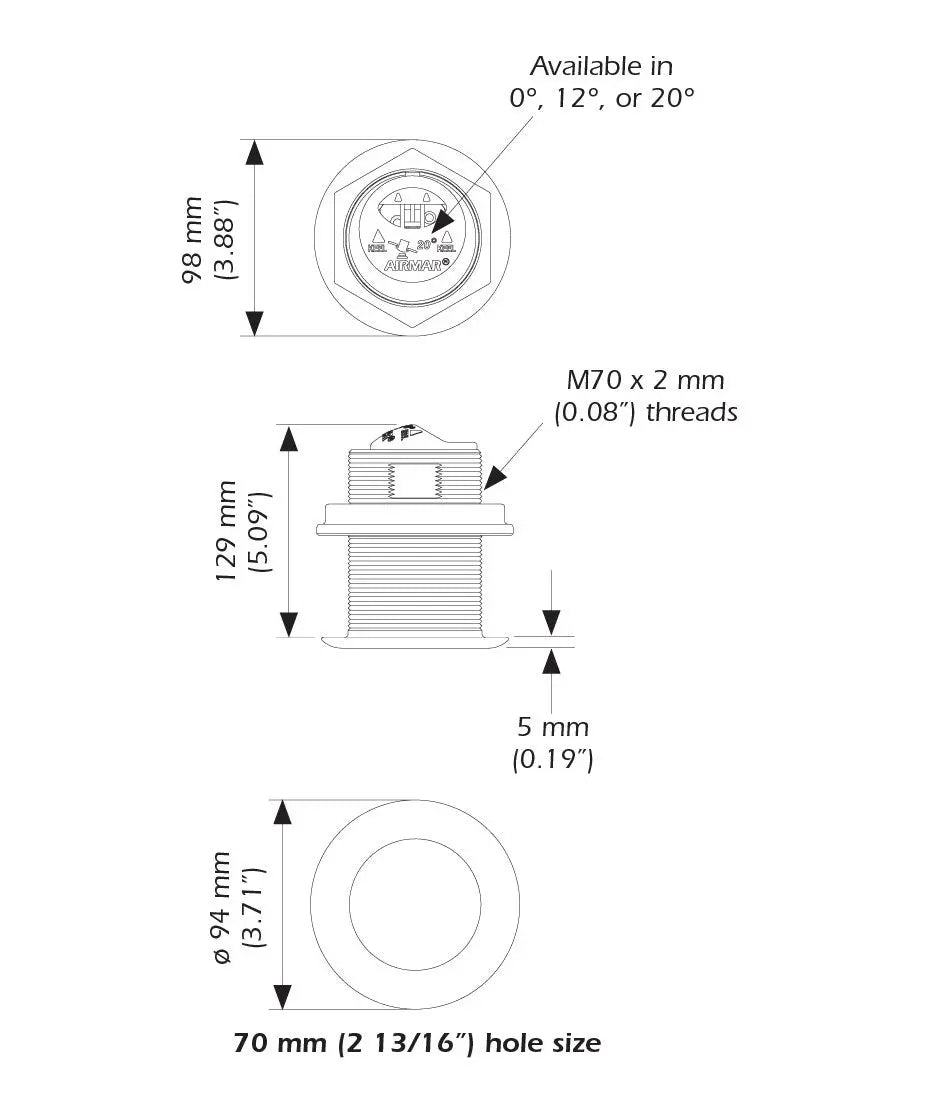

Specifications

Deadrise Range0 deg to 7 deg

Hole Size
70 mm (2-13/16)

Housing Material
Bronze

Deadrise
0 deg to 7 deg

Maximum depth
900ft

Medium Frequency
80 to 130 kHz

What's in the Box:

• B75C-0-M-MM
• MMC-12G Cable
"

Overview of the Airmar B75C-0-M Transducer

The Airmar B75C-0-M is a medium CHIRP transducer designed for marine sonar systems, featuring a 0-degree tilt angle that ensures accurate and consistent sonar readings. Built with a durable housing and compatible with Garmin 12-pin cable connections, this model provides dependable performance for fishing and navigation. Its medium frequency range enables enhanced target separation and detail, making it ideal for boaters and anglers who demand precision underwater imaging. The 0-degree tilt version supports straightforward installation while maintaining strong signal clarity across various water depths.

Key Features and Compatibility

This Airmar B75C-0-M transducer stands out due to its integration with the Garmin 12-pin cable, ensuring seamless connectivity with popular Garmin fishfinders and chartplotters. The CHIRP technology delivers superior sonar imaging by using a range of frequencies instead of a single one, improving fish detection and bottom definition. The transducer’s medium frequency provides a balance between depth range and resolution suitable for most coastal and offshore environments. Its robust build guarantees longevity and resistance to marine conditions, making it a trusted choice for users requiring reliable sonar data.

Installation and Usage Tips

Installing the Airmar B75C-0-M is straightforward thanks to its 0-degree tilt design and compatibility with Garmin’s 12-pin cable configuration. For optimal performance, it’s recommended to mount the transducer through the hull or on a transom depending on the boat type, ensuring it remains submerged during operation. Proper cable routing and secure connections to Garmin devices are critical to avoid signal loss. Additionally, users should periodically inspect the device for marine growth or damage to maintain peak signal quality and prolong the transducer’s service life in diverse water conditions.
