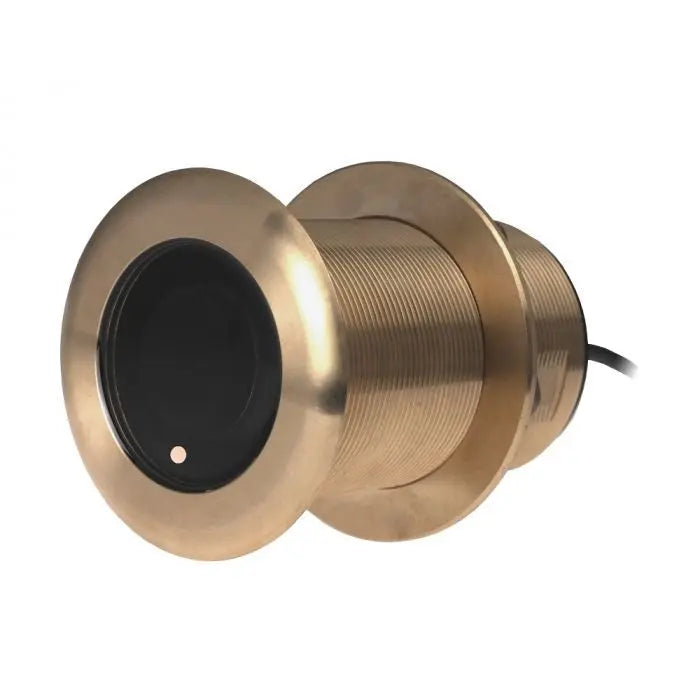

Airmar B75C-0-M 0d Tilt Medium CHIRP Si-Tex 8-Pin Cable

Airmar B75C-0-M: Advanced Medium CHIRP Transducer with Si-Tex Cable

Airmar B75C-0-M 0d Tilt Medium CHIRP Si-Tex 8-Pin Cable

Airmar B75C 0 deg Tlted Element Medium CHIRP Bronze Thru Hull with Si-Tex 8-Pin Mix-N-Match Cable

Model: B75C-0-M-BB

• Depth & fast-response water-temperature sensor
• 600 W of power with a maximum depth of 274 m (900 feet)
• Medium frequency: 80 to 130 kHz
• 24 deg to 16 deg beamwidth
• Medium frequency provides good shallow-water performance, bottom detail, and deeper performance than high-frequency band
• Low-profile, thru-hull housing delivers good display resolution at speed when installed properly
• Bronze housing for use in a fiberglass or wood hull
• Patented Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Deadrise Range0 deg to 7 deg

Hole Size
70 mm (2-13/16)

Housing Material
Bronze

Deadrise
0 deg to 7 deg

Maximum depth
900ft

Medium Frequency
80 to 130 kHz

What's in the Box:

• B75C-0-M-MM
• MMC-BB Cable
"

Overview of the Airmar B75C-0-M Transducer

The Airmar B75C-0-M is a top-tier 0-degree tilt medium CHIRP transducer designed for marine sonar applications. It features a Si-Tex 8-pin cable, ensuring robust connectivity and seamless integration with compatible fishfinders and navigation systems. Its medium frequency range enhances target resolution, providing precise underwater details for professional anglers and boaters alike. Built to deliver reliable performance, this transducer withstands harsh marine environments. The Airmar B75C-0-M supports clear, crisp sonar imaging, making it a trusted choice for users seeking high-quality underwater data.

Key Features and Benefits

The Airmar B75C-0-M offers a unique combination of durability and cutting-edge technology. Its 0-degree tilt design allows for optimal sonar beam angles, improving accuracy in fish and structure detection. The medium frequency CHIRP technology produces high-resolution images by using a broad range of frequencies, reducing noise and increasing clarity underwater. Additionally, the Si-Tex 8-pin cable is engineered for secure and stable connections, preventing signal loss, even in rough conditions. These qualities make the B75C-0-M ideal for professional maritime use and serious fishing enthusiasts who demand superior sonar performance.

Installation and Compatibility

Installation of the Airmar B75C-0-M is straightforward, thanks to its Si-Tex 8-pin cable that matches with many marine electronics. It is compatible with a wide range of CHIRP-enabled fishfinder systems, allowing easy integration into existing setups without extensive modifications. The 0-degree tilt medium transducer form factor simplifies mounting on most hulls or transom locations, ensuring consistent sonar results. Users benefit from flexible installation options and reliable connectivity, making this transducer a versatile addition to any vessel targeting detailed underwater information.
