Airmar B75C-12-L 12d Tilt Low CHIRP Bare Wire Cable

Comprehensive Overview of Airmar B75C-12-L 12d Tilt Low CHIRP Bare Wire Cable

Airmar B75C-12-L 12d Tilt Low CHIRP Bare Wire Cable

Airmar B75C-12-L 12d Tilt Low CHIRP with Bare Wire Mix-N-Match Cable

Model: B75C-12-L-0

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• 300 W of power with a maximum depth of 353 m (1200 feet)
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull

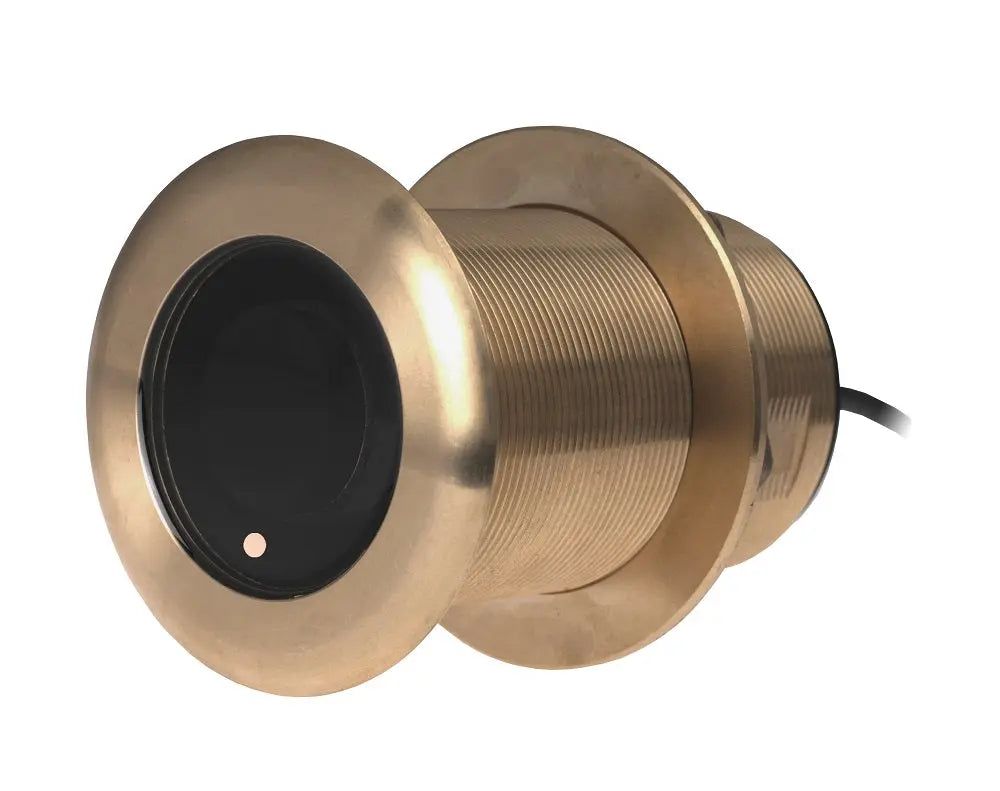

• Bronze housing for use in a fiberglass or wood hull

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

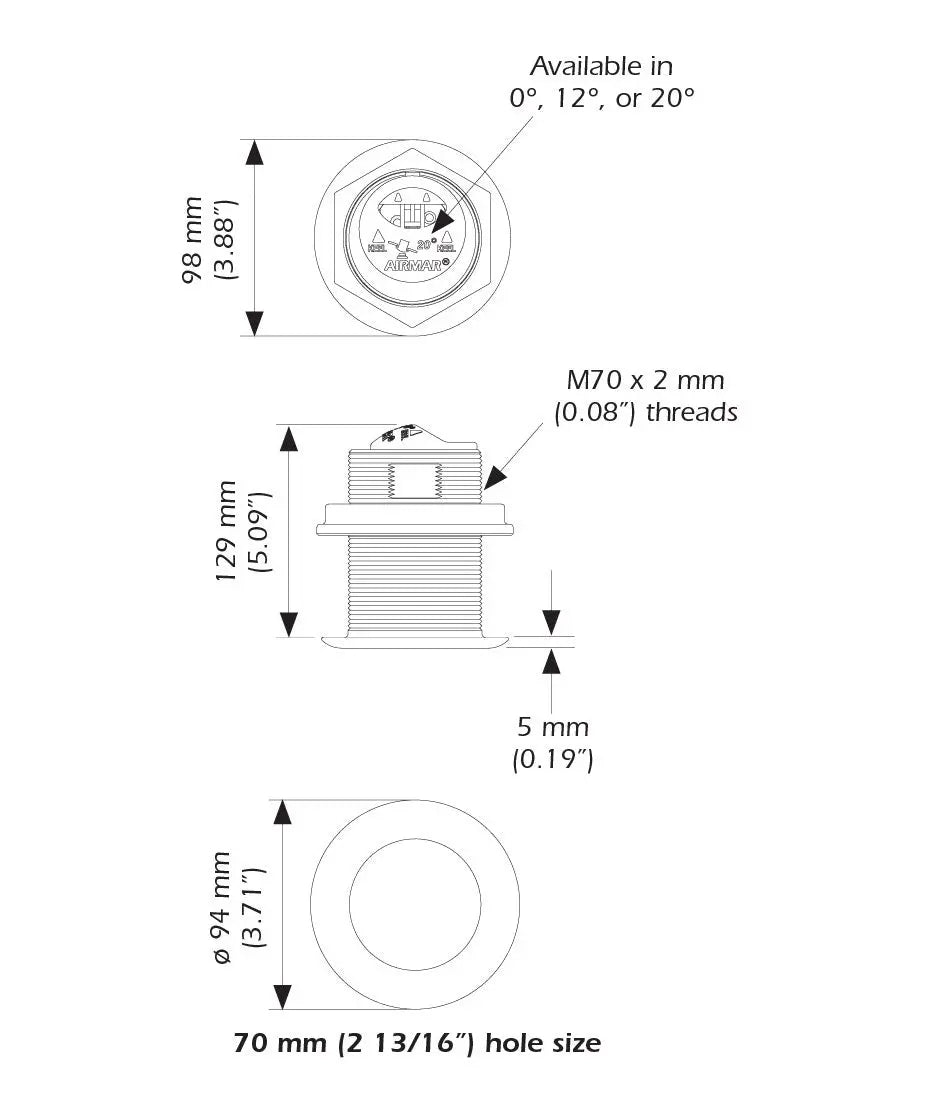

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 to 16 deg

Frequency Band
Low

Low Frequency
40-75 kHz

Low Frequency Beamwidth
32 deg-21 deg

Max Depth
366 m (1200 feet)

Power Rating
300 W

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Transducer Functions
Depth, Temperature

What's in the Box:

• B75C-12-L-MM
• MMC-0 Cable

High-Performance Design for Marine Sonar Systems

The Airmar B75C-12-L is a 12-degree tilt Low CHIRP bare wire cable designed specifically for high-performance marine sonar systems. This cable provides superior signal transmission necessary for clear underwater imaging and accurate depth readings. Built with durable materials, it withstands harsh marine environments, ensuring long-lasting reliability and efficiency. The 12-degree tilt design enhances the sonar’s ability to detect fish and underwater structures by improving coverage angles and signal clarity.

Durable Construction and Quality Materials

This cable uses advanced insulation and corrosion-resistant components to maintain optimal performance in saltwater conditions. The bare wire termination allows for easy and secure custom installations to various sonar units, catering to diverse marine setups. Its construction minimizes signal loss and interference, making it a trusted choice for professional mariners and fishing enthusiasts seeking reliable underwater information. The robust design guarantees longevity and consistent operating results.

Easy Installation and Compatibility

The Airmar B75C-12-L bare wire cable is designed for seamless integration with compatible Airmar transducers and other marine electronics. Its length and bare wire configuration provide flexibility for custom installations on boats of all sizes. This cable supports Low CHIRP technology, ensuring precise sonar data for enhanced fishing and navigation experiences. The straightforward installation process reduces time and effort, making it ideal for both professional installers and DIY users.
