Airmar B75C-12-L 12d Tilt Low CHIRP Furuno 10-pin Cable

Comprehensive Overview of the Airmar B75C-12-L Transducer

Airmar B75C-12-L 12d Tilt Low CHIRP Furuno 10-pin Cable

Airmar B75C-12-L 12d Tilt Low CHIRP with Furuno 10-Pin Mix-N-Match Cable

Model: B75C-12-L-10F

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• 300 W of power with a maximum depth of 353 m (1200 feet)
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

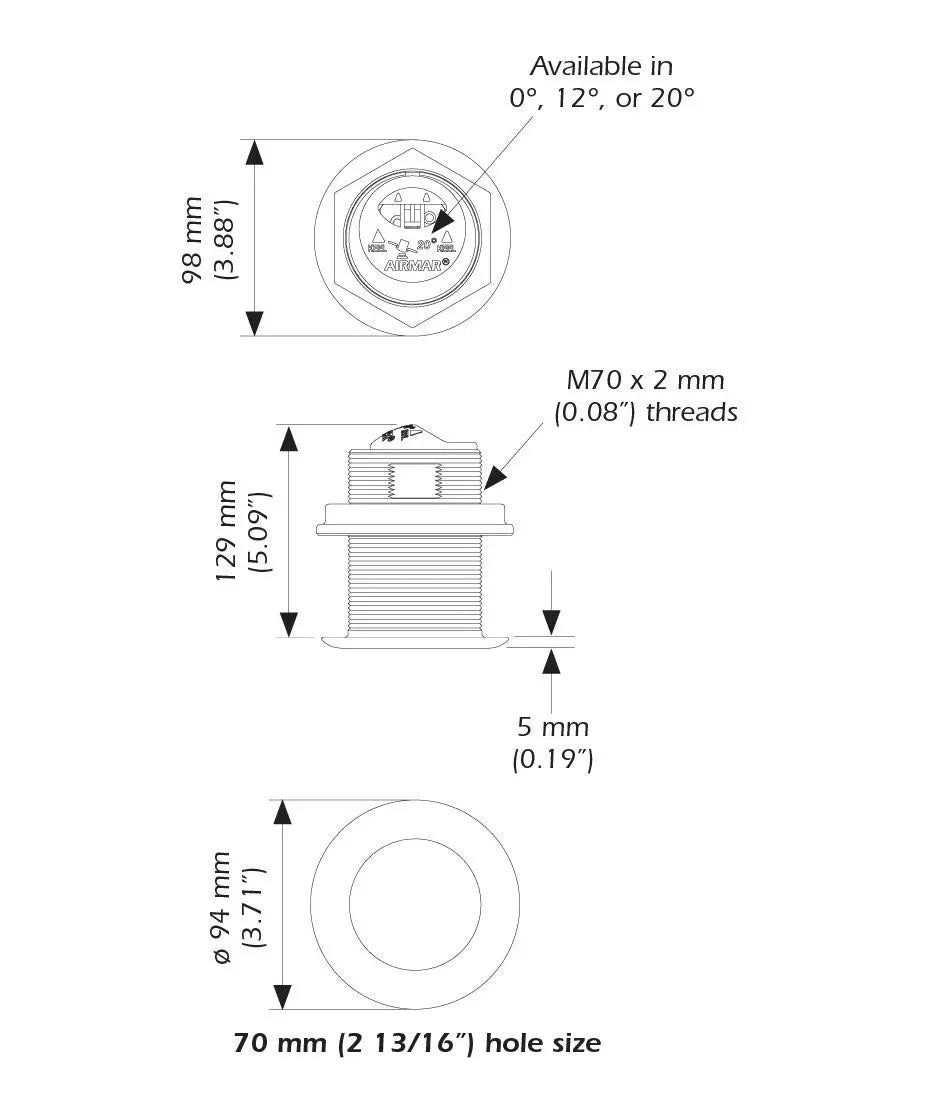

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 to 16 deg

Frequency Band
Low

Low Frequency
40-75 kHz

Low Frequency Beamwidth
32 deg-21 deg

Max Depth
366 m (1200 feet)

Power Rating
300 W

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Transducer Functions
Depth, Temperature

What's in the Box:

• B75C-12-L-MM
• MMC-10FL Cable

Advanced Design of the Airmar B75C-12-L

The Airmar B75C-12-L is a professional-grade 12 degree tilt low CHIRP transducer designed to enhance marine sonar capabilities. Integrated with a Furuno 10-pin cable, this product is built for durability and precision, delivering clear underwater imaging essential for fishing and navigation. The 12-degree tilt facilitates optimal transducer angle adjustment, resulting in more accurate readings and improved target separation. Engineered for seamless integration with Furuno devices, this transducer provides reliable performance in various ocean conditions.

Key Features and Connectivity Benefits

This model includes a Furuno 10-pin cable, ensuring straightforward connection with compatible sonar systems, minimizing installation time and setup errors. The low CHIRP technology employed improves signal clarity by emitting a continuous range of frequencies, which enhances bottom tracking and fish detection accuracy. The cable quality complements the transducer's performance by protecting against water ingress and signal loss, making it an essential choice for professionals who demand precision and durability in marine electronics.

Why Choose the Airmar B75C-12-L for Your Marine Needs

The Airmar B75C-12-L stands out for its excellent balance of functionality and reliability. This transducer is ideal for anglers and maritime professionals seeking enhanced sonar clarity with a user-friendly installation experience supported by the Furuno 10-pin cable. Its 12-degree tilt angle helps focus the sonar beams effectively, reducing noise and providing sharper images. Choosing this product means investing in proven technology known for extending the capability and longevity of marine sonar equipment, crucial for both amateur and commercial use.
