Airmar B75C-12-L 12d Tilt Low CHIRP Raymarine 11-pin Cable

Airmar B75C-12-L 12d Tilt Low CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B75C-12-L-11R

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• 300 W of power with a maximum depth of 353 m (1200 feet)
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull

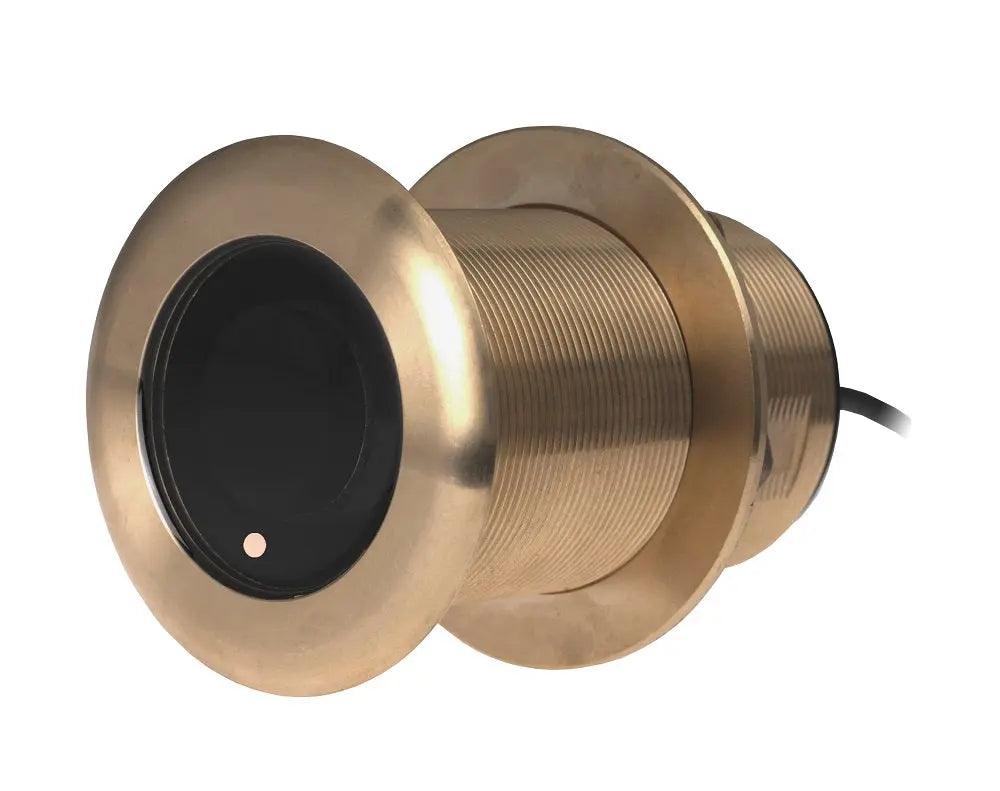

• Bronze housing for use in a fiberglass or wood hull

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

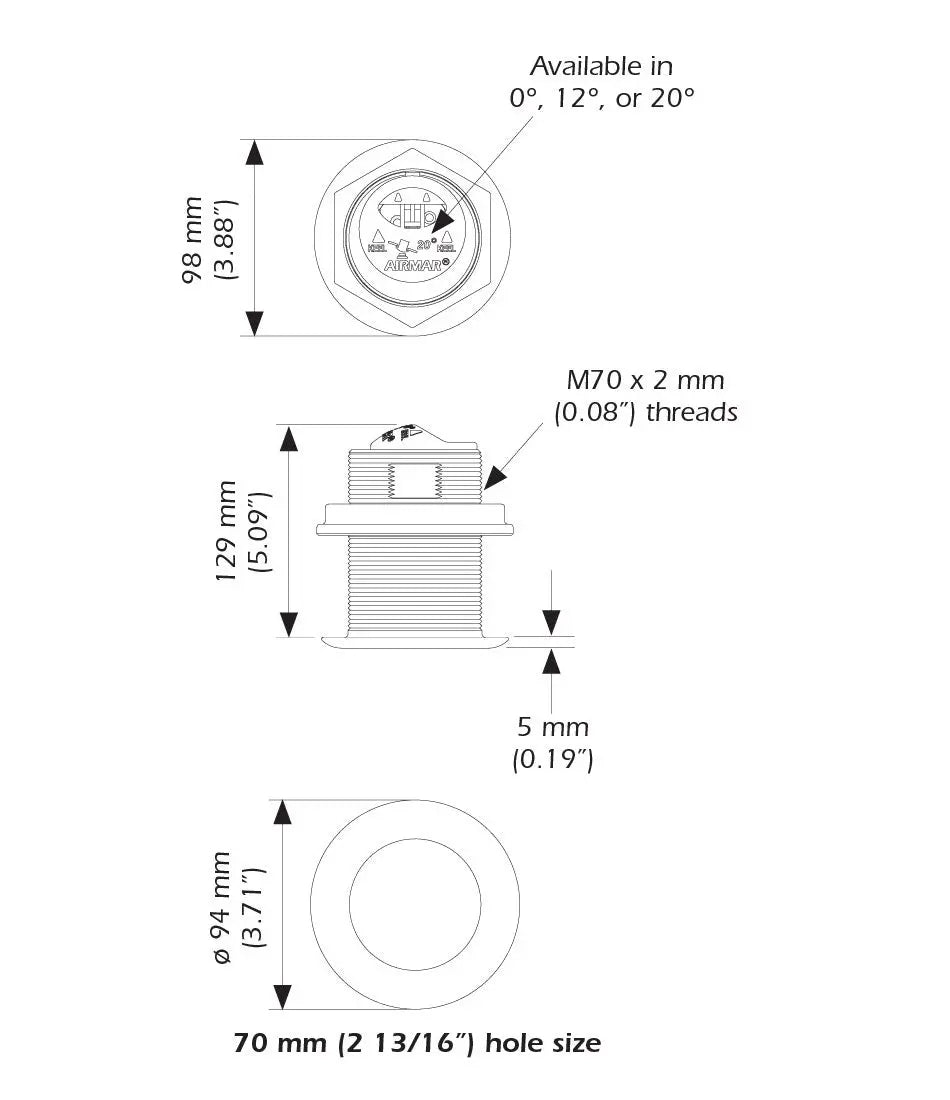

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 to 16 deg

Frequency Band
Low

Low Frequency
40-75 kHz

Low Frequency Beamwidth
32 deg-21 deg

Max Depth
366 m (1200 feet)

Power Rating
300 W

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Transducer Functions
Depth, Temperature

What's in the Box:

• B75C-12-L-MM
• MMC-11RLDB Cable

Overview of the Airmar B75C-12-L Transducer

The Airmar B75C-12-L is a top-tier 12-degree tilt Low CHIRP transducer designed for optimal underwater imaging. Paired with a Raymarine 11-pin cable, this transducer delivers accurate sonar feedback suited for serious marine applications. Its tilt capability enhances installation flexibility, allowing users to adjust the viewing angle for clearer fish and bottom target detection. The Low CHIRP technology improves signal clarity and reduces noise, providing detailed and reliable underwater data. This makes the B75C-12-L a reliable choice for enhancing a boat's sonar performance and overall marine navigation.

Benefits of the 12d Tilt Design

The 12-degree tilt feature of the Airmar B75C-12-L transducer offers significant advantages in sonar performance. By allowing slight angular adjustment, it helps maintain optimal sonar beam alignment under varying hull conditions and water environments. This tilt flexibility reduces bottom clutter and improves target separation, resulting in clearer and more accurate underwater imagery. Such design consideration enhances user experience by providing clearer fish arches and substrate details. The combination of tilt and Low CHIRP technology ensures users get enhanced depth performance and precise sonar returns for a variety of fishing and navigation needs.

Compatibility with Raymarine 11-pin Cable

The Airmar B75C-12-L comes equipped with a Raymarine 11-pin cable, ensuring seamless integration with Raymarine marine electronics. This compatibility allows for quick, reliable connection and simplifies installation on Raymarine systems. High-quality cabling minimizes signal loss and interference, maintaining the integrity of sonar data transmitted between the transducer and display unit. The 11-pin connector also supports enhanced data transfer for CHIRP sonar frequencies, optimizing performance. This combination guarantees a steady and accurate sonar reading, which is essential for safe navigation and effective fish finding.
