Airmar B75C-12-L 12d Tilt Low CHIRP Si-Tex 8-Pin Cable

Discover the Features of the Airmar B75C-12-L Transducer

Airmar B75C-12-L 12d Tilt Low CHIRP Si-Tex 8-Pin Cable

Airmar B75C-12-L 12d Tilt Low CHIRP with Si-Tex 8-Pin Mix-N-Match Cable

Model: B75C-12-L-BB

• Depth & fast-response water-temperature sensor
• Low-CHIRPS from 40 kHz to 75 kHz, 32 deg to 21 deg beamwidth
• 300 W of power with a maximum depth of 353 m (1200 feet)
• Great deep-water performance
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull

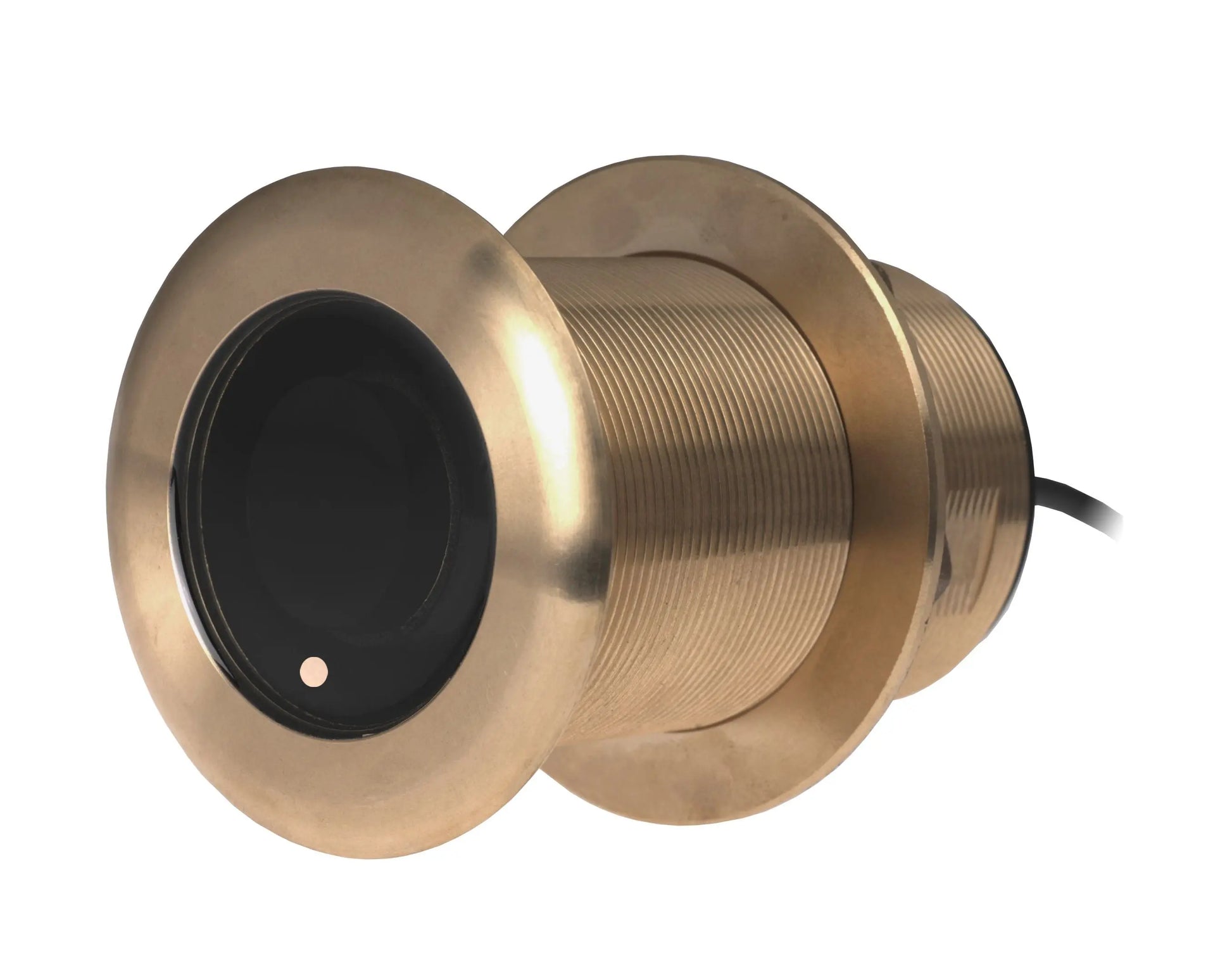

• Bronze housing for use in a fiberglass or wood hull

Airmar's low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band, operating between 40 and 75 kHz, is a deep-water performer, providing excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation.

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Provides greater depth range, wider beamwidth, and ultimately more coverage under the boat

Chirp signal processing technology used with AIRMAR broadband, Chirp-ready transducers provides more detail at greater depths and is less susceptible to noise

Great for operating at high boat speeds

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 to 16 deg

Frequency Band
Low

Low Frequency
40-75 kHz

Low Frequency Beamwidth
32 deg-21 deg

Max Depth
366 m (1200 feet)

Power Rating
300 W

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Transducer Functions
Depth, Temperature

What's in the Box:

• B75C-12-L-MM
• MMC-BB Cable

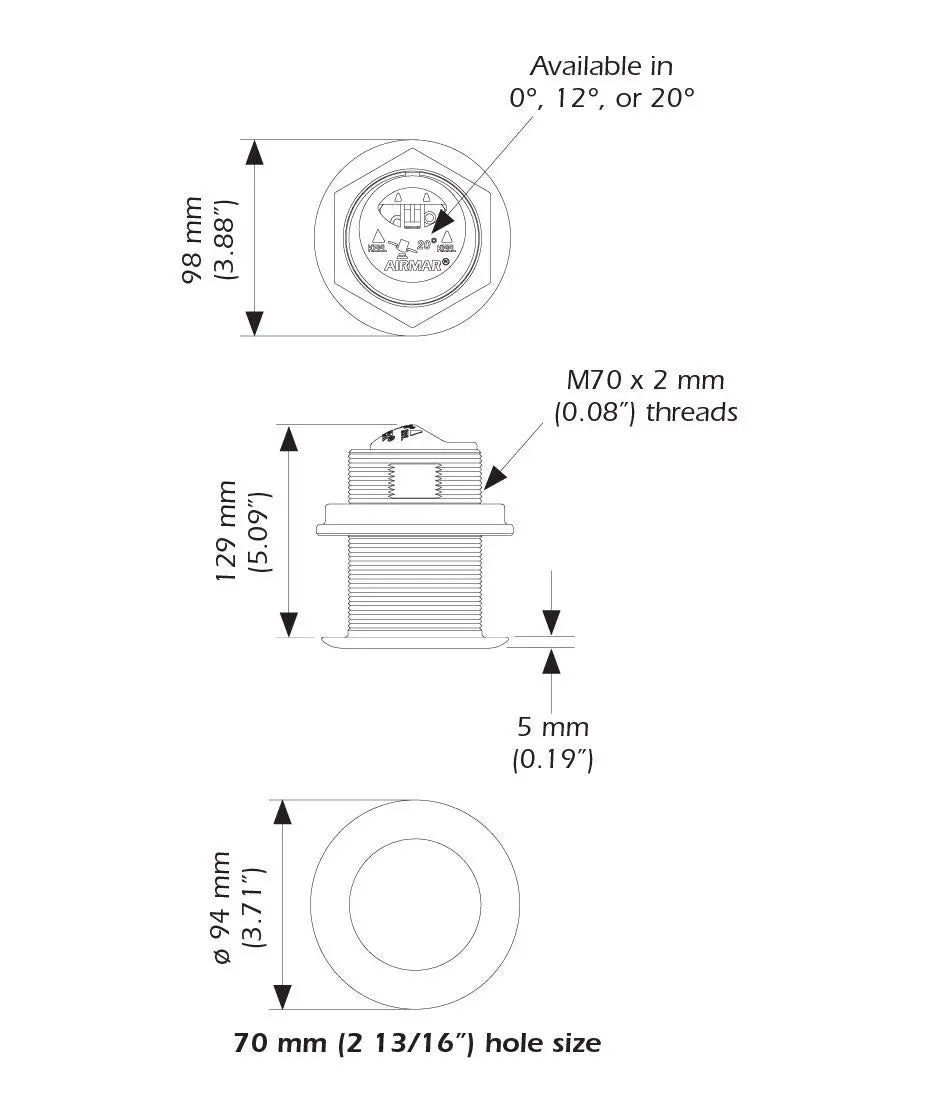

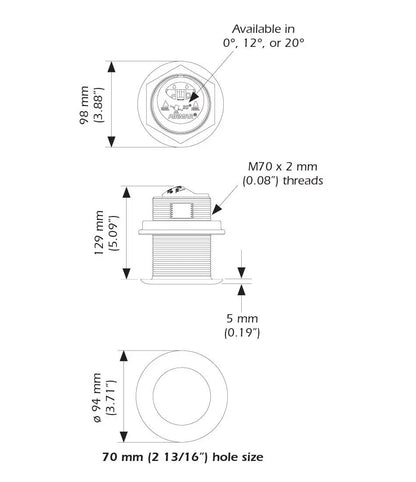

Advanced 12-Degree Tilt Design

The Airmar B75C-12-L features an innovative 12-degree tilt design that improves sonar performance by optimizing the angle of the transducer for enhanced bottom tracking and reduced noise interference. This tilt helps provide clearer, more precise underwater imaging, ideal for professional mariners and fishing enthusiasts. The angled face allows for better target separation at various depths, making it perfect for applications requiring detailed underwater scanning with minimal distortion.

Low CHIRP Technology for Superior Sonar Clarity

Equipped with low CHIRP (Compressed High-Intensity Radiated Pulse) technology, the Airmar B75C-12-L delivers exceptional sonar signal clarity by transmitting a continuous sweep of frequencies. This advanced signal processing enhances target resolution and depth penetration, enabling users to detect fish and underwater structures with greater accuracy. The low CHIRP feature reduces noise significantly compared to traditional sonar units, ensuring cleaner and more reliable data in various marine environments.

Durable Si-Tex 8-Pin Cable Connection

The Airmar B75C-12-L includes a Si-Tex 8-pin cable designed for high compatibility and secure connections with many marine electronic systems. This robust cable ensures consistent signal transmission while resisting water intrusion and corrosion, enhancing the transducer’s longevity and reliability in harsh saltwater conditions. With straightforward installation and maintenance, the Si-Tex 8-pin cable complements the transducer’s overall performance, providing a trusted link between the sonar unit and the display device.
