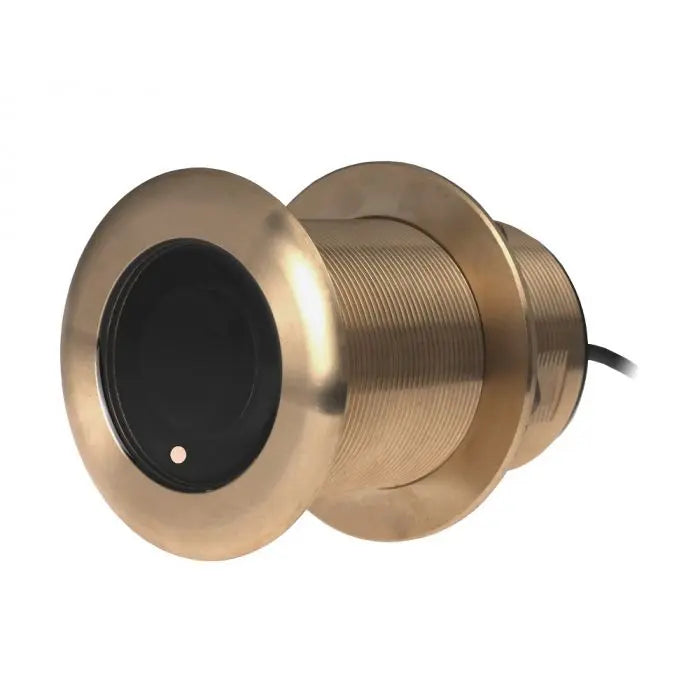

Airmar B75C-12-M 12d Tilt Medium CHIRP Furuno 12-Pin Cable

Airmar B75C-12-M: Advanced 12d Tilt Medium CHIRP Transducer with Furuno 12-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP Furuno 12-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Furuno 12-Pin Mix-N-Match Cable

Model: B75C-12-M-12F

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 deg to 15 deg

Frequency Band
Medium CHIRP

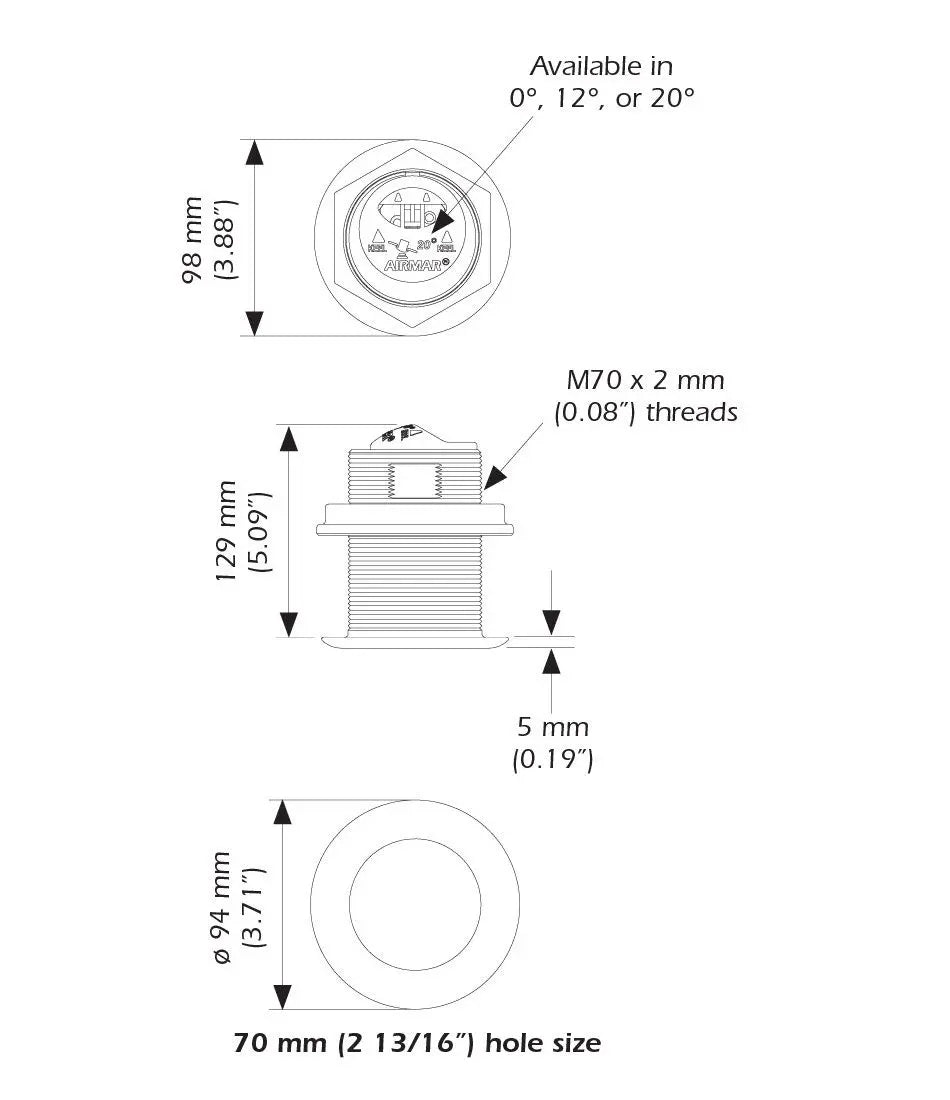

Hole Size
70 mm (2-13/16)

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12 deg

Transducer Functions
Depth

High-Performance CHIRP Technology for Accurate Sonar Readings

The Airmar B75C-12-M transducer features cutting-edge 12d tilt medium CHIRP technology, designed to deliver clear, detailed underwater sonar images. This advanced system enhances target separation and depth performance, making it ideal for both recreational and professional marine applications. The transducer's medium tilt angle ensures excellent coverage for various vessel types, providing users with precise fish finding and seabed mapping capabilities. Built to withstand tough marine conditions, the Airmar B75C-12-M is a dependable choice for enhancing your sonar system's accuracy and efficiency.

Durable Build with Furuno 12-Pin Cable Compatibility

The Airmar B75C-12-M comes equipped with a Furuno 12-pin cable, offering seamless integration with compatible Furuno sonar units. The cable ensures stable data transmission and easy installation without the need for costly adapters. Designed with durability in mind, the transducer and cable are corrosion-resistant and built to endure harsh saltwater environments. This construction guarantees long-lasting performance and reduces maintenance needs, supporting consistent operation across extended periods at sea.

Versatile Applications for Various Marine Vessels

With its 12d tilt and medium beam angle, the Airmar B75C-12-M transducer suits a wide range of marine vessels, from small fishing boats to mid-sized yachts. Its CHIRP sonar capability improves detection and depth accuracy in diverse underwater conditions, allowing operators to navigate safely and optimize fish detection. Whether you are an angler, commercial operator, or marine enthusiast, this transducer offers reliable performance to enhance your on-water experience and ensure you get the most out of your sonar technology.
