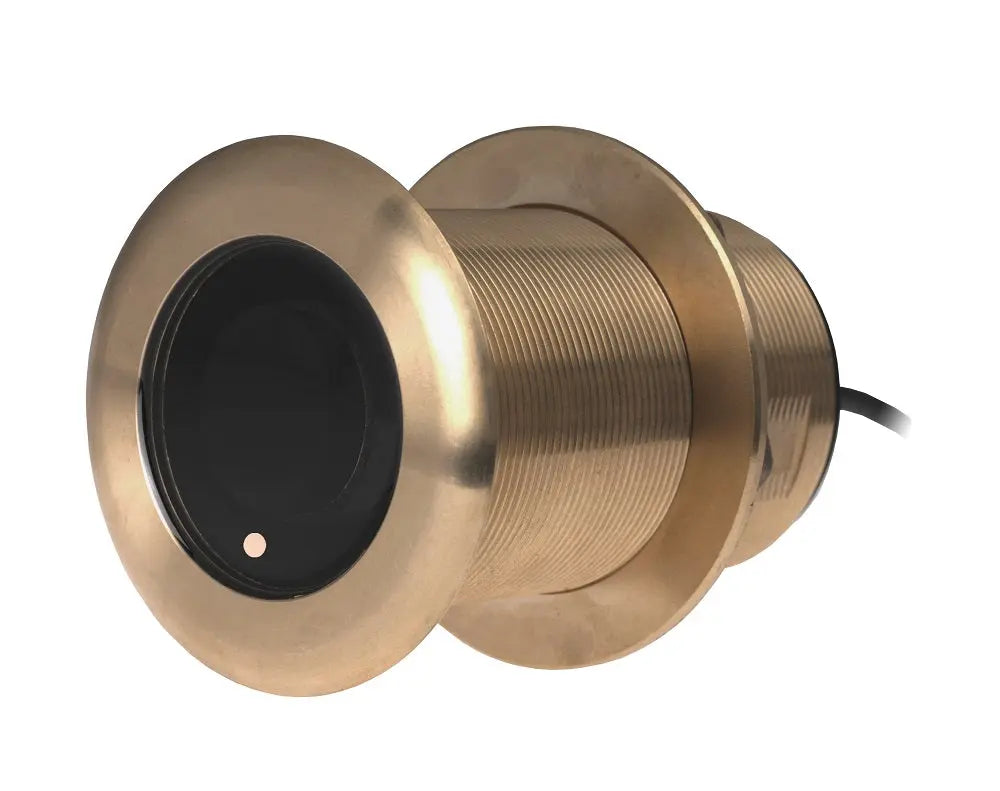

Airmar B75C-12-M 12d Tilt Medium CHIRP Garmin 8-Pin Cable

Detailed Overview of the Airmar B75C-12-M Transducer

Airmar B75C-12-M 12d Tilt Medium CHIRP Garmin 8-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Garmin 8-Pin Mix-N-Match Cable

Model: B75C-12-M-8G

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 deg to 15 deg

Frequency Band
Medium CHIRP

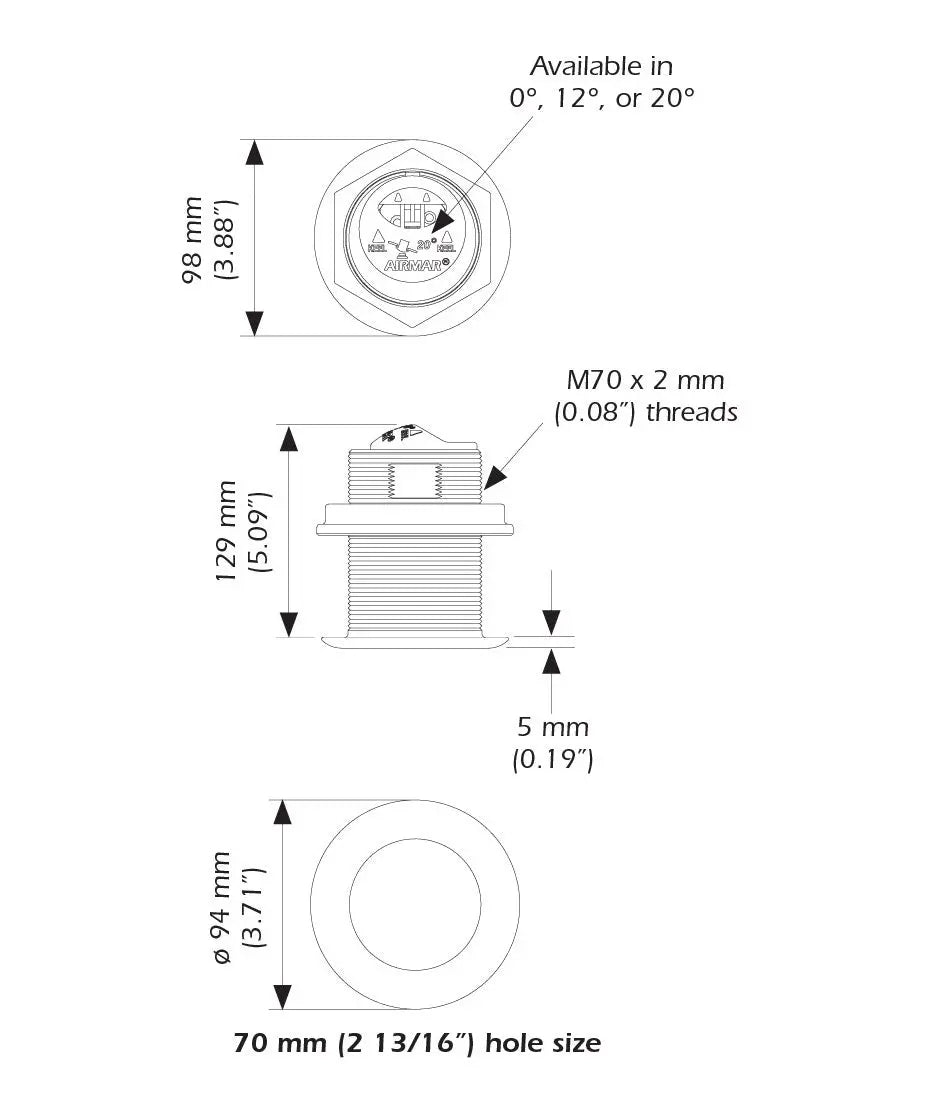

Hole Size
70 mm (2-13/16)

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12 deg

Transducer Functions
Depth

High-Performance Medium CHIRP Technology

The Airmar B75C-12-M is engineered for superior medium CHIRP sonar performance, providing clear underwater images and accurate target separation. Its 12-degree tilt angle optimizes sound wave transmission, enhancing detection in a variety of marine environments. This transducer supports Garmin 8-pin connectivity, ensuring seamless integration with compatible marine electronics. Whether you are fishing or navigating challenging waters, the Airmar B75C-12-M delivers consistent and reliable sonar feedback, making it an essential tool for recreational and professional boaters alike.

Robust Design with 12-Degree Tilt Configuration

Designed with a 12-degree tilt, the B75C-12-M transducer maintains excellent contact with the hull, reducing turbulence and noise interference. This tilt angle improves the sonar beam's efficiency by angling it optimally beneath the boat, capturing clearer signals even at higher speeds. Constructed from durable materials resistant to harsh marine conditions, this transducer promises long-lasting performance. Its compact size and medium CHIRP functionality make it adaptable for various boat types, ensuring consistent data without compromising vessel stability or speed.

Compatible Garmin 8-Pin Cable for Easy Installation

The Airmar B75C-12-M comes equipped with a Garmin 8-pin cable, simplifying installation and ensuring a reliable connection to Garmin sonar and chartplotter systems. This plug-and-play compatibility minimizes setup time, allowing users to quickly upgrade their sonar capabilities without extensive rewiring. The cable is built to withstand corrosion and water exposure, preserving signal integrity over time. This compatibility combined with advanced CHIRP technology makes the Airmar B75C-12-M an ideal choice for boat owners seeking enhanced underwater imaging with minimal hassle.
