Airmar B75C-12-M 12d Tilt Medium CHIRP Humminbird 14-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Humminbird 14-Pin Mix-N-Match Cable

Model: B75C-12-M-14HB

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth

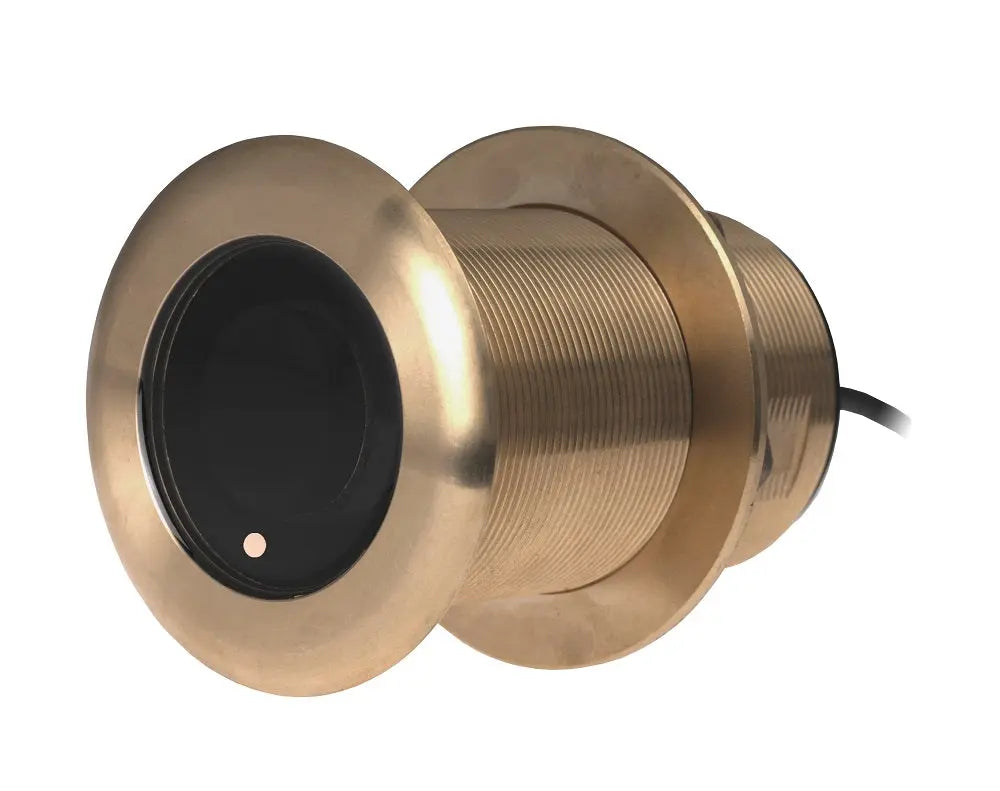

• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 deg to 15 deg

Frequency Band
Medium CHIRP

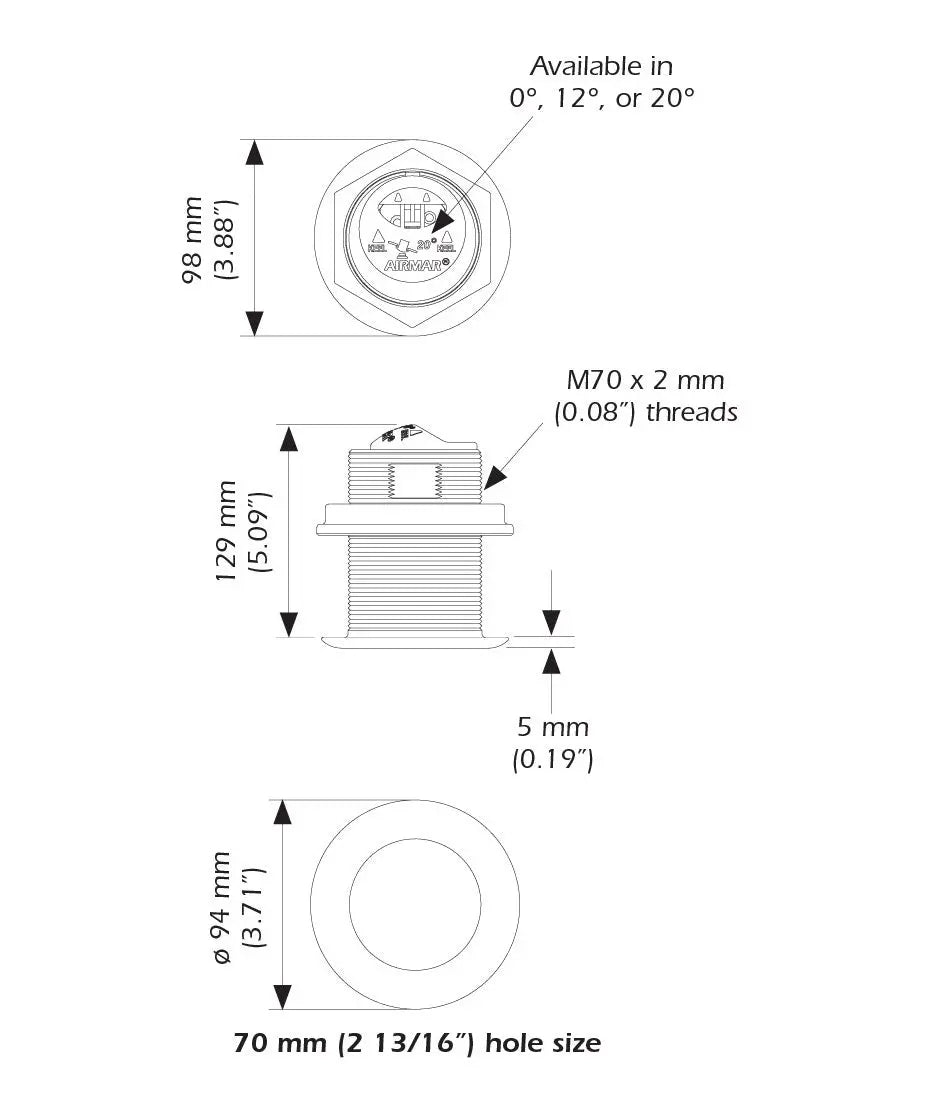

Hole Size
70 mm (2-13/16)

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12 deg

Transducer Functions
Depth

High-Quality CHIRP Sonar Performance

The Airmar B75C-12-M transducer offers advanced CHIRP technology delivering clear and detailed sonar imaging for anglers and marine enthusiasts. Designed specifically for Humminbird fish finders with a 14-pin cable, this 12-degree tilt medium cone transducer enhances bottom and fish target separation. Its CHIRP capabilities enable a wide range of frequencies for improved target resolution and reduced noise interference, making it an essential upgrade for serious fishermen seeking accurate underwater data.

Durable Design for Marine Environments

Constructed from robust materials, the Airmar B75C-12-M withstands harsh marine conditions including saltwater corrosion and physical impacts. The 14-pin cable connection is engineered to provide secure and reliable communication with Humminbird units, ensuring consistent power and signal transmission. Its medium cone angle and 12-degree tilt optimize sonar coverage beneath your vessel while maintaining clarity. This durability makes it ideal for both recreational and professional fishing applications.

Easy Installation and Compatibility

The transducer’s 14-pin cable format guarantees seamless compatibility with a wide range of Humminbird fish finder models, simplifying installation and reducing setup time. Its medium tilt angle allows mounting options on trolling motors, transom mounts, or hull installations. Included mounting hardware supports straightforward attachment. This user-friendly design means anglers can quickly upgrade their sonar systems to utilize enhanced CHIRP technology without complicated modifications.
