Airmar B75C-12-M 12d Tilt Medium CHIRP Raymarine 11-Pin Cable

Explore the Features of the Airmar B75C-12-M Transducer

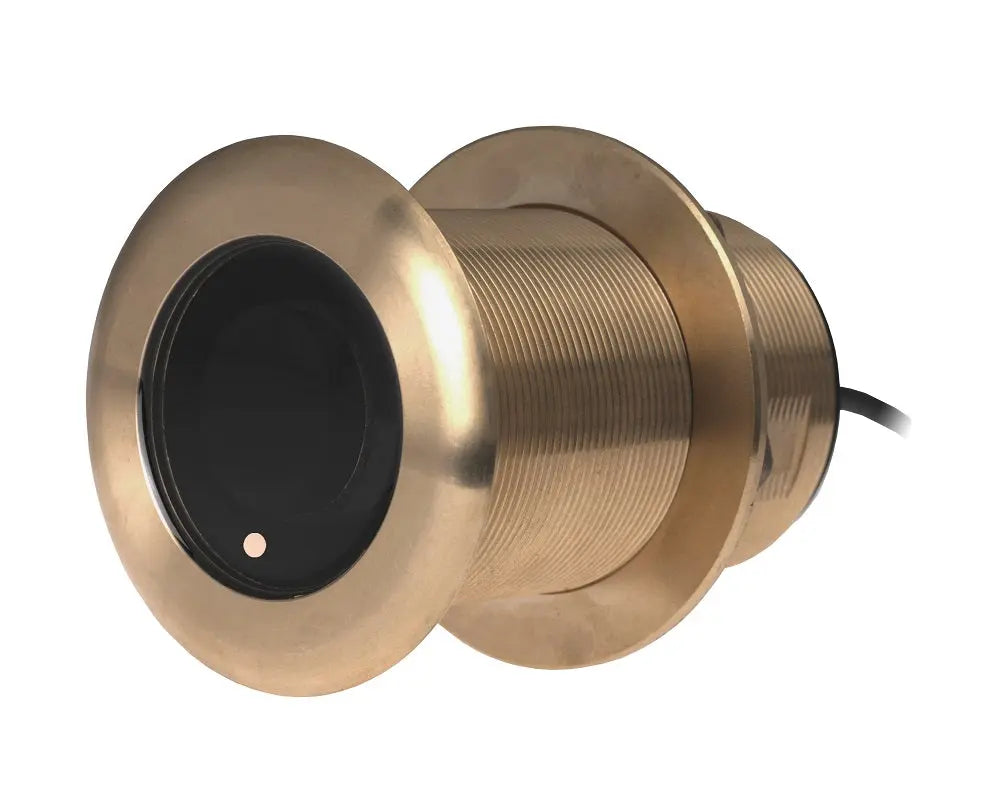

Airmar B75C-12-M 12d Tilt Medium CHIRP Raymarine 11-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Raymarine 11-Pin Mix-N-Match Cable

Model: B75C-12-M-11R

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 deg to 15 deg

Frequency Band
Medium CHIRP

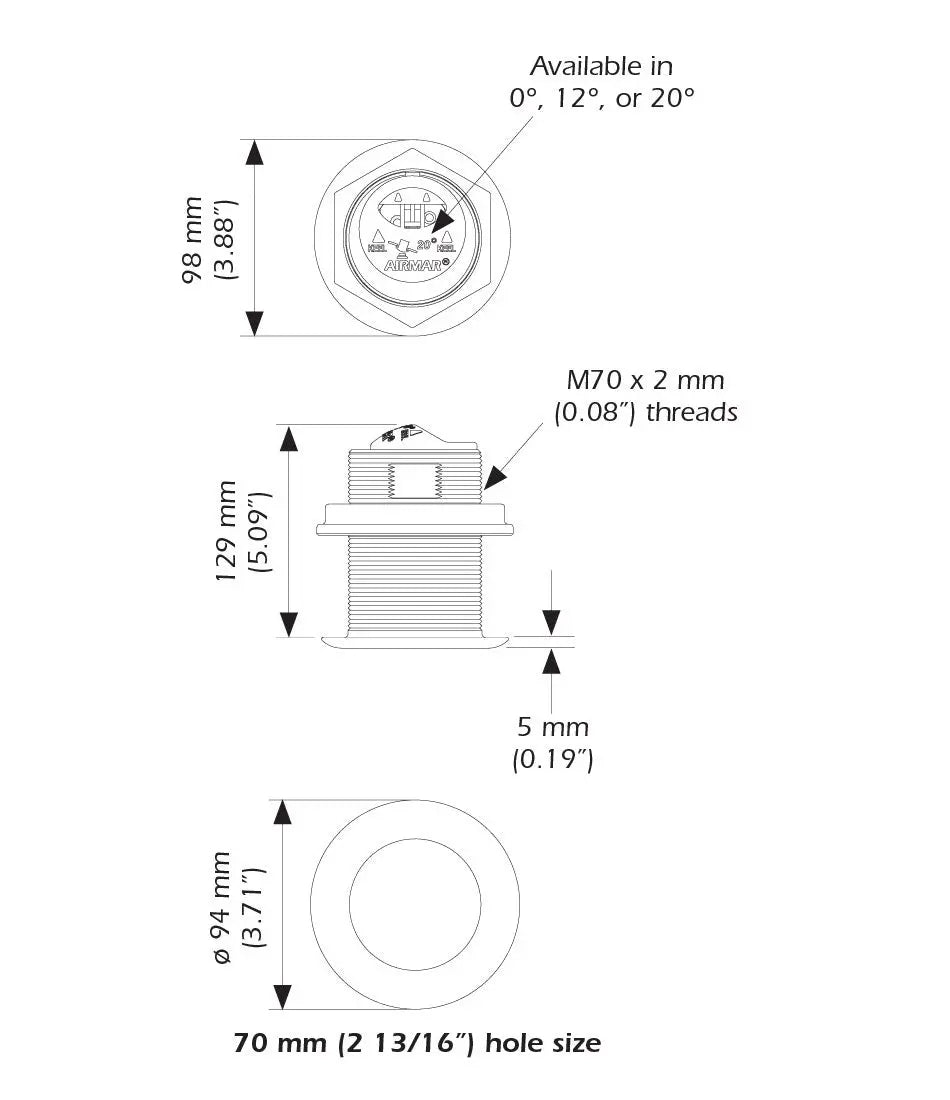

Hole Size
70 mm (2-13/16)

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12 deg

Transducer Functions
Depth

Advanced CHIRP Technology for Superior Sonar Performance

The Airmar B75C-12-M is engineered with advanced 12-degree tilt medium CHIRP technology, providing superior target separation and improved fish detection. This transducer ensures clear, detailed underwater images even in challenging marine conditions, making it ideal for both recreational anglers and professional fishermen. The medium CHIRP frequency allows for reliable depth readings and enhanced clarity, delivering consistent performance when paired with Raymarine multifunction displays.

Compatibility and 11-Pin Cable Integration

The Airmar B75C-12-M comes equipped with a durable Raymarine 11-pin cable designed for seamless integration with various Raymarine sonar and chartplotter systems. This cable ensures easy installation and reliable data transmission. The 11-pin configuration supports powerful signal output, optimizing the transducer’s ability to deliver accurate depths and detailed sonar readings. This compatibility enables users to upgrade their existing setup without hassle, improving overall marine navigation capabilities.

Robust Build and Optimal Tilt Design

Constructed with high-quality materials, the Airmar B75C-12-M transducer features a tilt design that enhances mounting versatility on different vessels. The 12-degree tilt angle helps reduce bottom interference and improves signal return by aligning the sonar beam more effectively. Its robust housing is built to withstand harsh saltwater environments and physical impacts, ensuring long-lasting durability and consistent operation in diverse conditions, thus making it a dependable choice for serious boaters.
