Airmar B75C-12-M 12d Tilt Medium CHIRP Si-Tex 8-Pin Cable

Detailed Overview of Airmar B75C-12-M Transducer Features

Airmar B75C-12-M 12d Tilt Medium CHIRP Si-Tex 8-Pin Cable

Airmar B75C-12-M 12d Tilt Medium CHIRP with Navico 9-Pin Mix-N-Match Cable

Model: B75C-12-M-9N

• Depth & fast-response water-temperature sensor
• Medium-CHIRPS from 80 kHz to 130 kHz, 24 deg to 16 deg beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth

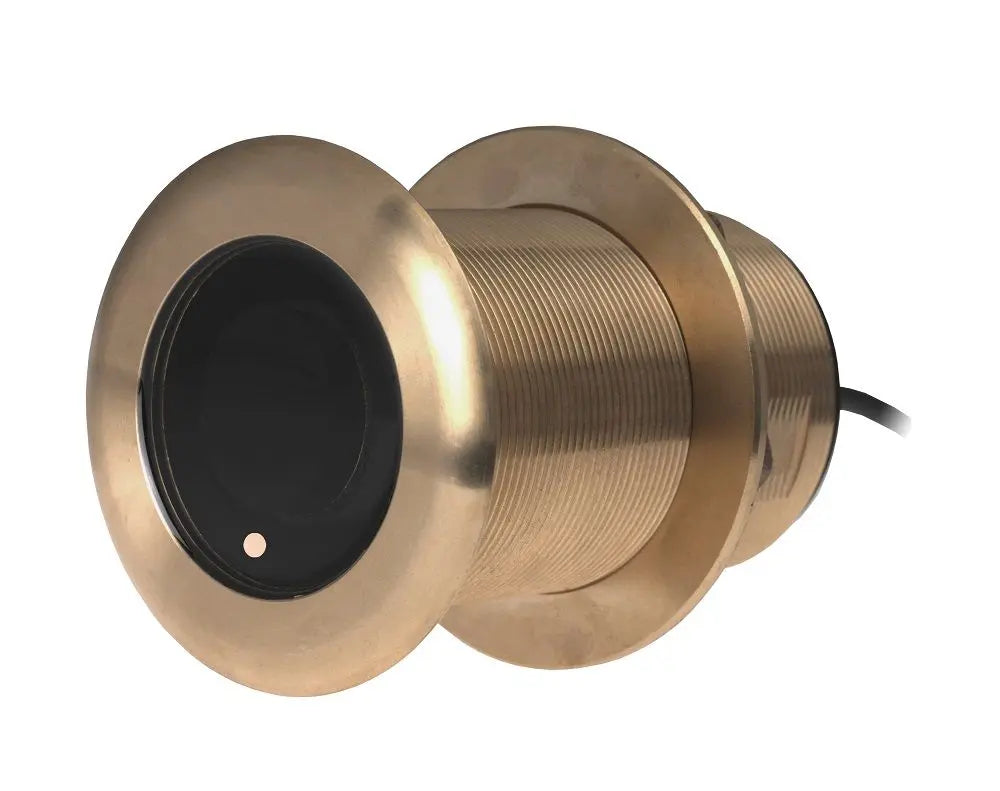

• Bronze transducer housing
• Boat Size: Up to 8 m (25 feet)
• Exclusive Xducer ID(R) technology

Airmar's low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900 feet).

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length9 m (30 feet)

Deadrise Range
8 deg to 15 deg

Frequency Band
Medium CHIRP

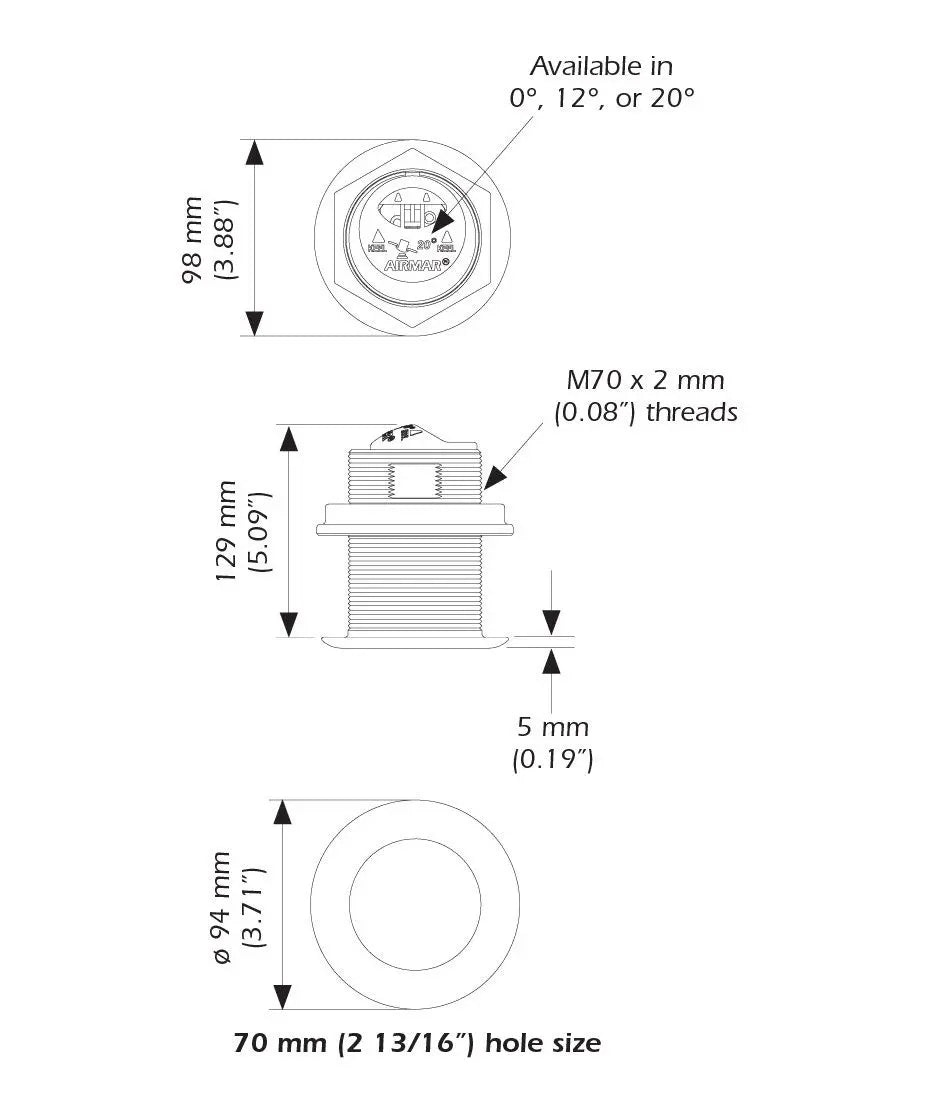

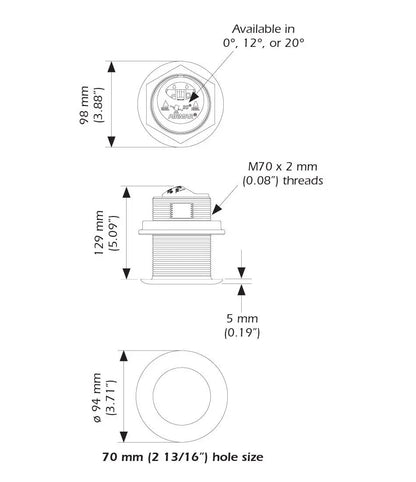

Hole Size
70 mm (2-13/16)

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12 deg

Transducer Functions
Depth

Exceptional CHIRP Sonar Technology

The Airmar B75C-12-M integrates advanced CHIRP sonar technology to deliver superior underwater imaging. This medium CHIRP transducer ensures clearer target separation and enhanced depth range compared to traditional sonar models. By emitting a range of frequencies simultaneously, the B75C-12-M provides more detailed and accurate readings, making it an excellent choice for anglers and marine enthusiasts seeking precise fish-finding capabilities.

Optimized 12-Degree Tilt Design

This model features a 12-degree tilt, carefully designed to improve transducer positioning for various hull types. The tilt ensures optimal beam angle, reducing signal interference and expanding coverage beneath the vessel. This thoughtful design allows the Airmar B75C-12-M to deliver improved sonar signals even in challenging marine environments, enhancing the overall performance of your fishfinder or sonar system.

Durable Si-Tex 8-Pin Cable Integration

The Airmar B75C-12-M comes equipped with a factory-installed Si-Tex 8-pin cable, offering reliable and secure connectivity to compatible sonar units. This cable ensures stable data transfer while resistant to corrosion and wear caused by marine conditions. Its robust build guarantees long-term durability, providing users with peace of mind and consistent performance out on the water, essential for both recreational and professional marine applications.
