Airmar B75C-12-M 12d Tilt Medium CHIRP With Mix-n-Match Plug

Discover the Advanced Features of the Airmar B75C-12-M Transducer

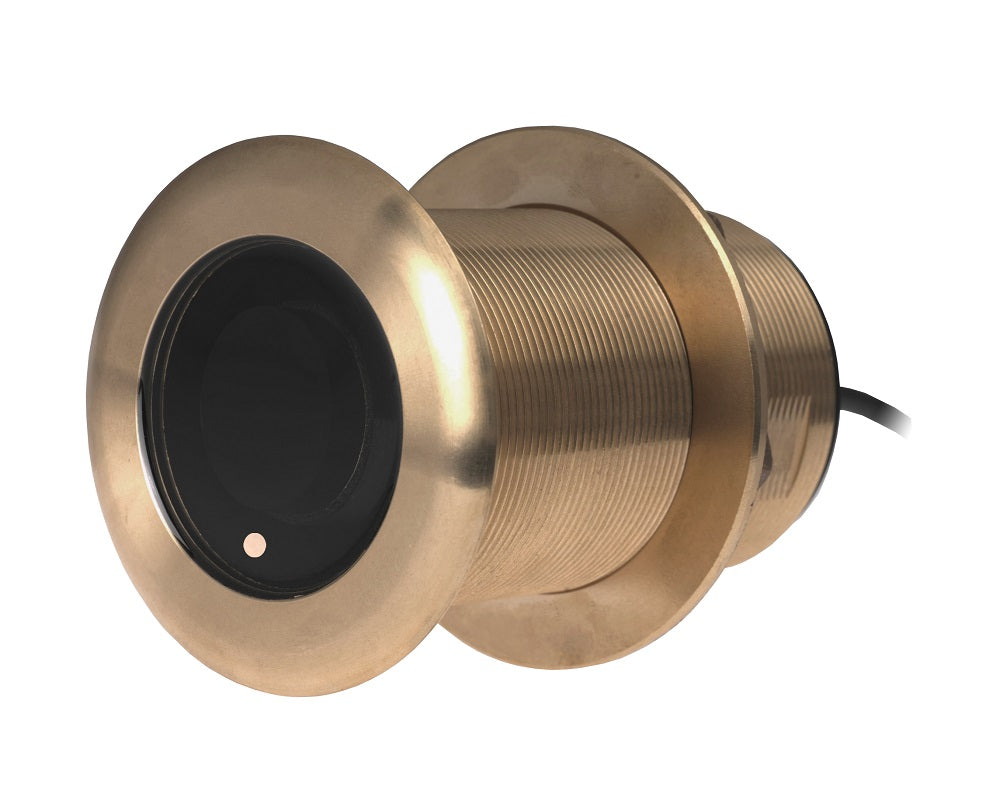

Airmar B75C-12-M 12d Tilt Medium CHIRP With Mix-n-Match Plug

Airmar B75C-12-M 12d Tilt Medium CHIRP

Model: B75C-12-M-MM

• Depth & fast-response water-temperature sensor
• Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
• Hull Type: Fiberglass or wood
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Bronze transducer housing
• Boat Size: Up to 8 m (25’)
• Exclusive Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Cable-Length
9 m (30')

Deadrise Range
8° to 15°

Frequency Band
Medium CHIRP

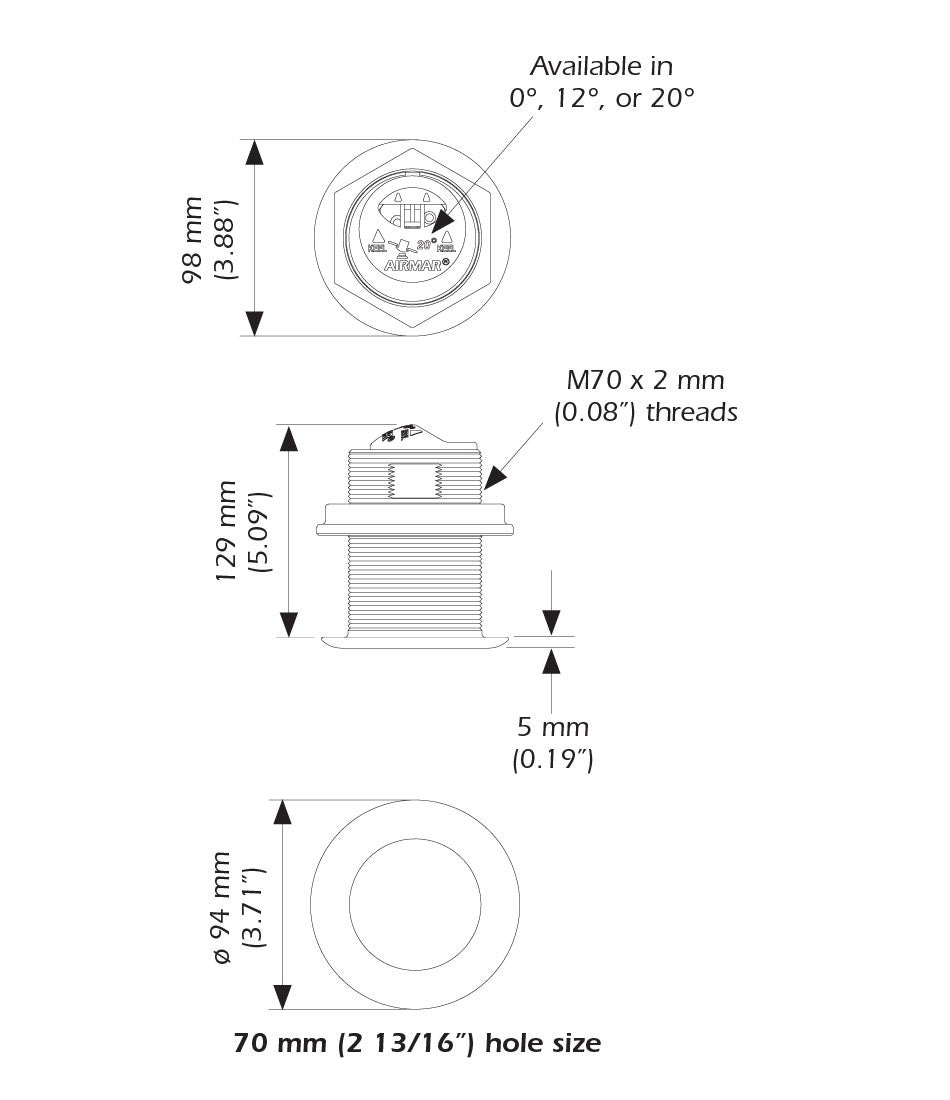

Hole Size
70 mm (2-13/16")

Housing Material: BronzeHousing Material
Bronze

Power Rating
600 W

Retractable housing
No

Tilt Angle
12°

Transducer Functions
Depth, Temperature

Medium frequency
80 to 130 kHz

Beam width
24° to 16°

Maximum depth
274 m (900')

What's in the Box:

• B75C-12-M-MM

Overview of the Airmar B75C-12-M Medium CHIRP Transducer

The Airmar B75C-12-M transducer offers exceptional sonar performance through its 12-degree tilt design and medium CHIRP frequency range. Designed to provide precise underwater imaging, it supports better target separation and clearer fish detection. The mix-n-match plug system allows users to customize installation with compatible cables, enhancing ease and flexibility. This transducer is an ideal choice for marine enthusiasts seeking reliable, high-quality sonar data for their boats and fishing vessels.

Key Benefits of the 12-Degree Tilt Design

The 12-degree tilt in the Airmar B75C-12-M optimizes the sonar beam angle, ensuring improved bottom tracking and target clarity. This design minimizes surface clutter and maximizes signal penetration, aiding in detecting fish and underwater structures more accurately. Anglers and boaters benefit from enhanced data quality even in challenging water conditions, making the device a vital tool for detailed underwater exploration and fishing success.

Flexible Installation with the Mix-n-Match Plug System

Airmar’s innovative mix-n-match plug system allows users to pair the B75C-12-M with various cable and connector options, simplifying the upgrade or replacement process. This flexibility reduces downtime and installation complexity, making the transducer adaptable to different sonar systems. The robust build quality ensures durability in harsh marine environments while maintaining excellent signal integrity over time, delivering consistent performance on every outing.
