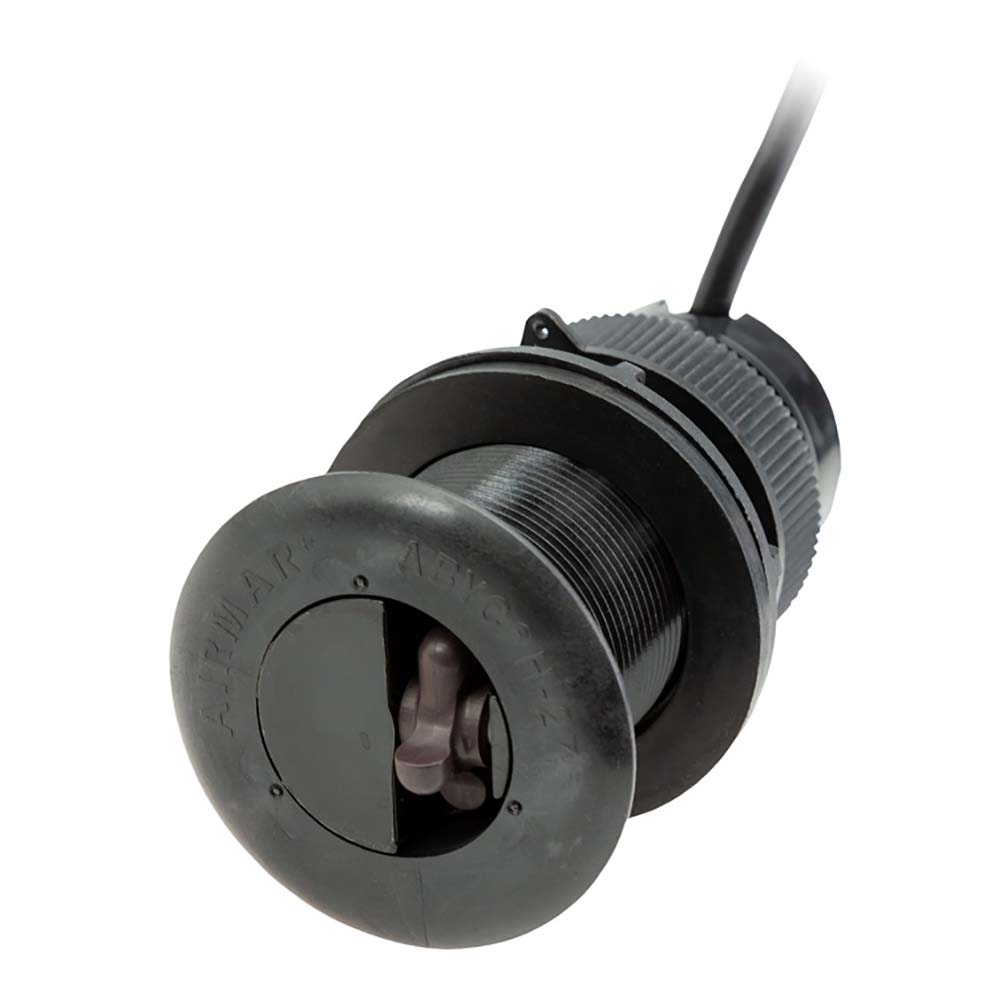

Airmar DST810-PV-N2 Plastic Smart Multisensor, 235 kHz, NMEA 2000 and Bluetooth

DST810 Plastic Smart Sensor 235kHz - NMEA 2000 - Bluetooth

Depth, Speed-Through-Water, Water Temperature, Boat Attitude

For a product to be considered a breakthrough, it has to vastly change conventional behavior and enhance abilities. The DST810 Smart Multisensor, featuring the new Gen2 paddlewheel together with Airmar's CAST App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC-based software.

Besides water temperature, depth, and upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmars powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensornot in the displays.

Features

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and powerboats. Simple attitude calibration to correct for off-center mounting
• Hull Deadrise: Up to 22
• Depth Frequency: 235 kHz
• Minimum Depth Range: 0.5 m (1.6')
• Maximum Depth Range: Up to 100 m (330')NMEA 2000
• Speed Range: Up to 45 knots
• Wireless Protocol: Bluetooth Low Energy (BLE)
• Wireless Range: Up to 30 feet depending on mount location
• Standard Cable Length: 6 m (20') DeviceNetNMEA 2000
• Temperature Sensor Accuracy: 0.5C (1.8F)
• Temperature Sensor Range: -10C to 40C (14F to 104F)
• Supply Voltage: 9 VDC to 16 VDCper NMEA 2000

Wireless connectivity to Airmar's CAST App has user-friendly benefits:

• Calibrate the DST810 is a simple, intuitive way regardless of the instrument brand or model that is on board
• Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• Enable and disable PGNs and set offset and output rates

The Perfect Sensor for Every Use

SAILING

• 5 Hz speed output for visibly smoother speed data.
• Incredibly easy calibration via Airmar's CAST App. Wirelessly connect, calibrate speed, and configure data.
• DST810 stores configurations and delivers data to the NMEA 2000 network.
• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.

POWERBOATS

• 5 Hz speed, depth, pitch and roll, and water temperature from one installed instrument.
• Simple depth offsets and corrected speed-through-water via Airmar's CAST App.
• Popular depth sensor for shallow-water performance.

Airmar DST810-PV-N2 Plastic Smart Multisensor combines depth, speed-through-water, water temperature, heel, and trim data in one reliable sensor for sailing and powerboat applications. Operating at 235 kHz, it provides dependable depth information while the integrated Gen2 paddlewheel delivers smooth 5 Hz speed-through-water output for faster, more responsive readings. NMEA 2000 connectivity allows the sensor to share data across compatible onboard networks.

The integrated attitude sensor supplies heel and trim information, supporting more accurate performance data and practical installation flexibility. Attitude calibration helps compensate for off-center mounting, while the Airmar CAST App provides a convenient wireless way to configure the sensor and calibrate speed independently of the vessel’s display brand or model. Heel-compensated calibration can be completed across multiple heel angles and speed ranges, helping improve speed-through-water accuracy under changing operating conditions.

All speed calibrations and NMEA configurations are stored directly in the Airmar DST810-PV-N2 rather than in the connected display. Through Bluetooth Low Energy connectivity, the CAST App can enable or disable PGNs, adjust offsets, set output rates, and support advanced manual speed entries for multiple heel angles and speeds. The sensor is designed for hulls with deadrise up to 22 degrees and supports depths from 1.6 feet to 330 feet, speeds up to 45 knots, and water temperatures from 14°F to 104°F. A 20-foot DeviceNet NMEA 2000 cable is included, and the sensor operates on 9 to 16 VDC.

For sailing vessels, the DST810-PV-N2 provides smooth speed data, depth, water temperature, heel-corrected speed-through-water, heel, and trim from one installed multisensor. For powerboats, it supplies speed, depth, pitch and roll, and water temperature while supporting straightforward depth offsets and speed corrections through the CAST App. This product may not be returned to the original point of purchase; contact the manufacturer directly for product issues or concerns.

Features:

• 5 Hz speed output provides smooth, frequently updated speed-through-water data
• Integrated attitude sensor supplies heel and trim data for sailing and powerboat applications
• Bluetooth Low Energy connectivity supports wireless setup and calibration through the Airmar CAST App
• Heel-compensated speed calibration supports multiple heel angles and speed ranges
• Calibration settings and NMEA configurations are stored in the DST810 sensor
• 235 kHz depth frequency supports reliable shallow-water performance
• Depth range from 1.6 feet to 330 feet
• Speed-through-water range up to 45 knots
• Supports hull deadrise up to 22 degrees
• Water temperature sensor accuracy of 1.8°F
• Water temperature range from 14°F to 104°F
• NMEA 2000 connectivity with a 20-foot DeviceNet cable
• Supply voltage range from 9 to 16 VDC
