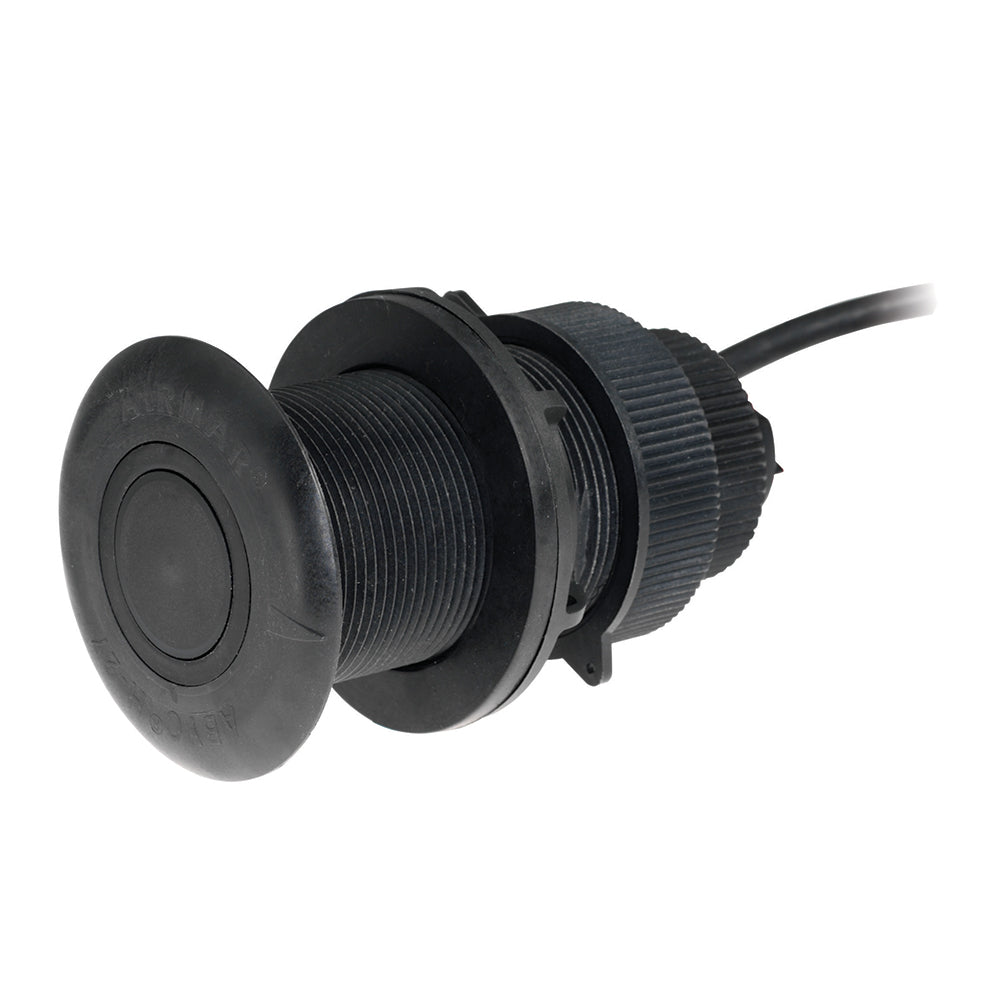

DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor - 20
- Function: Depth / Temperature, Material: Plastic, Fixed Tilt Angle: 20
- Frequency: 235 kHz, Cone: 12, Power: 100 Watts RMS
- Connector: 5-Pin NMEA 2000
Features:
- Low-profile, retractable, thru-hull transducer offers depth and temperature functions in a single, compact housing
- Tilted Element Transducer unique design tilts ceramic element inside transducer housing, giving all the advantages of a fairing block without a hull protrusion
- Available in fixed 0, 12 or 20 tilt perfect for power and sail boat applications
- Low-profile housing compensates for hull deadrise, does not affect hull performance and provides accurate readings at high speeds
- Designed with Airmar's exclusive Broadband Ceramic Technology, 235 kHz element improves resolution without sacrificing sensitivity
- Smart Sensor with embedded microelectronics transducer element and signal processor are only millimeters apart
- 235 kHz frequency prevents mutual interference with other echo sounders on vessel
- Retractable housing with self-closing valve minimizes water flow into the vessel when transducer is removed for servicing
Specifications:
- Mount: Thru-hull
- Fixed Element Tilt Angle: 20 (for 16 - 24 hull deadrise)
- Housing Material: Plastic
- Connector: 5-pin NMEA 2000
- Cable Length: 20 ft.
- Frequency: 235 kHz
- Cone: 12
- Power: 100 Watts RMS
- Depth Sensor Range: 1.6 - 594 ft.
- Acoustic Window Material: Urethane
- Compatible Hull Materials: Fiberglass or metal
- Hole Diameter for Installation: 2"
- Dimensions: 4.92" H x 2.94" OD
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The Airmar DT800 NMEA 2000 Thru-Hull Tilted Element Smart Sensor is a compact, low-profile transducer designed for reliable depth and temperature readings on both power and sailboats. Its innovative design features a fixed tilt angle of 20°, which ensures accurate data collection without protruding significantly into the hull, making it ideal for vessels with varying deadrise angles. Constructed from durable plastic, this transducer is engineered to perform well at high speeds without impacting hull performance, thanks to its streamlined, retractable housing.
The DT800 utilizes Airmar's exclusive Broadband Ceramic Technology, operating at a frequency of 235 kHz with a 12° cone angle. This combination enhances resolution and sensitivity, providing clear, detailed readings while minimizing interference with other onboard echo sounders. Its embedded microelectronics integrate the transducer element with a signal processor, resulting in precise data transmission. The 5-pin NMEA 2000 connector facilitates seamless integration into your vessel's network, ensuring quick and reliable connectivity.
The transducer's innovative tilted ceramic element, which tilts inside the housing, offers the benefits of a fairing block without the need for hull protrusions. Its self-closing valve and retractable housing simplify maintenance and reduce water intrusion risks during servicing. Compatible with fiberglass and metal hulls, the sensor includes a 20-foot cable for flexible installation options, and its 2-inch hole diameter makes it suitable for a variety of vessel configurations. The sensor's depth range extends from approximately 1.6 to 594 feet, providing versatile performance for different boating conditions.
Designed to accommodate hull deadrise angles from 16 to 24 degrees, the fixed 20° tilt model ensures accurate readings across a broad spectrum of vessel types. Its compact dimensions, measuring just under 5 inches in height, allow for discreet installation without sacrificing functionality. Overall, the Airmar DT800 Thru-Hull Tilted Element Smart Sensor offers a robust solution for boaters seeking precise, reliable depth and temperature data with minimal hull impact.
Features:
- Low-profile, retractable thru-hull transducer combines depth and temperature functions in a single, compact housing
- Tilted Element design tilts the ceramic element inside the transducer for optimal performance without hull protrusion
- Available in fixed 0°, 12°, or 20° tilt angles, suitable for various hull deadrise configurations
- Housing material is durable plastic, designed to minimize impact on hull performance at high speeds
- Utilizes Airmar's Broadband Ceramic Technology at 235 kHz for high resolution and sensitivity
- Embedded microelectronics integrate the transducer element with signal processing for accurate data transmission
- Operates at 235 kHz frequency to prevent interference with other vessel sounders
- Self-closing valve and retractable housing simplify maintenance and reduce water ingress during servicing
- Designed for fiberglass and metal hulls, with a 2-inch installation hole diameter
- Includes 20 feet of cable for flexible installation options
