SKU:AIRM265CLM0

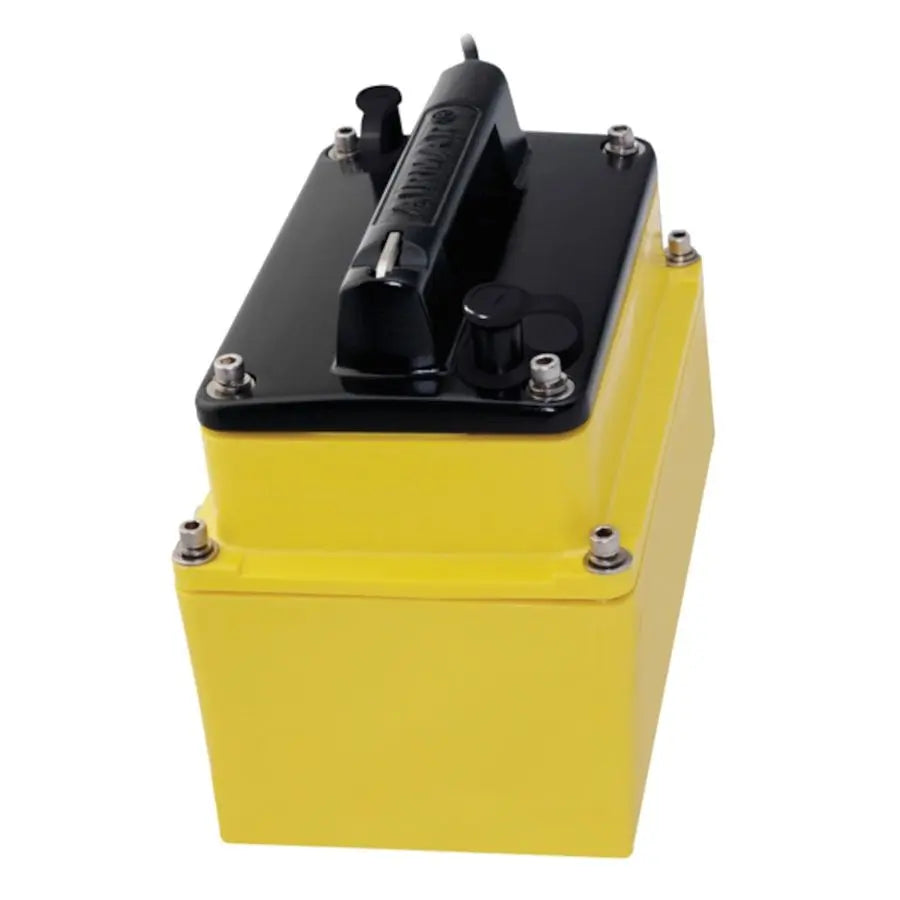

Airmar M265C-LM-0 1kw Low Medium CHIRP With Bare Wire MMC Cable
Airmar M265C Depth Only Low Medium In-Hull Transducer with Bare Wire Mix-N-Match Cable
Model: M265C-LM-0
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Acoustic WindowUrethane
Cable-Length
9 m (30 feet)
Connector
Airmar 12-Pin (MMC)
Deadrise Range
0 deg to 22 deg
Display Connector
MMC-0 Bare Wire
Frequency Band
Low-Medium
Housing Material
Plastic
Hull Material
Solid fiberglass only
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Max Vessel LOA
11 m (36 feet) and above
Medium Frequency
85-135 kHz
Medium Frequency Beamwidth
16 deg-11 deg
Mounting Style
In-Hull
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth

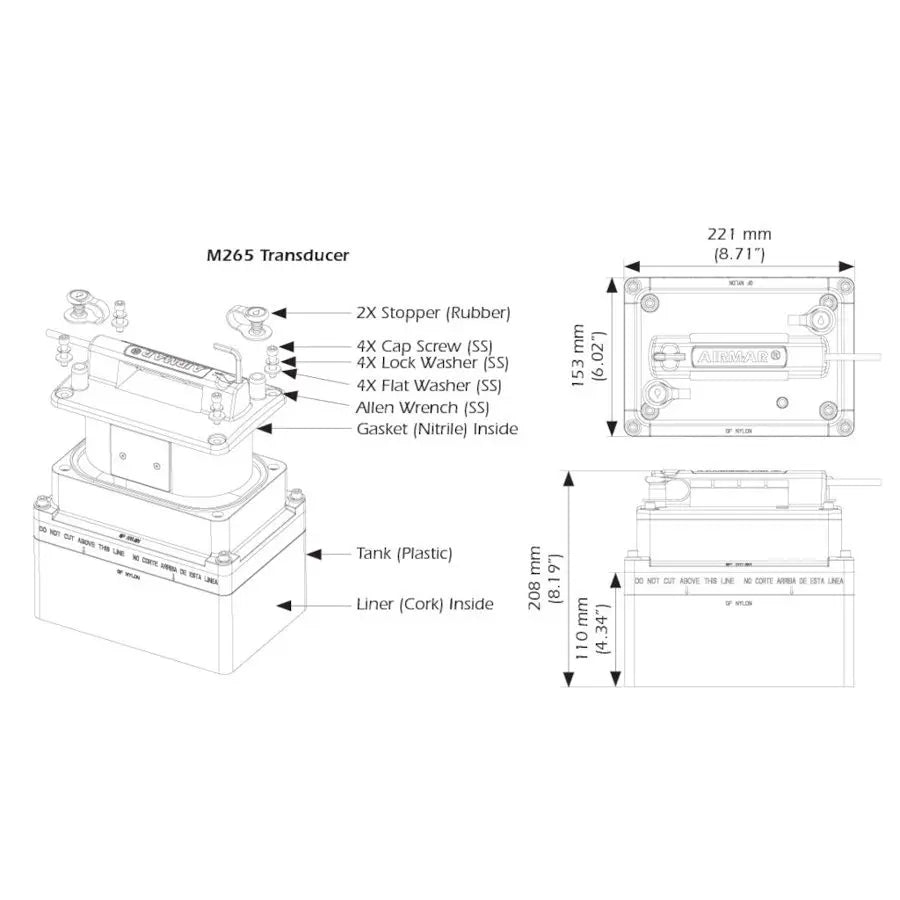

Dimensions
8.19in H x 8.71in L x 6.02in W
What's in the Box:
The Airmar M265C-LM-0 is a robust 1kw low medium CHIRP transducer designed for advanced marine sonar applications. This transducer delivers superior target resolution and bottom tracking, making it ideal for commercial and recreational vessels. Equipped with a bare wire MMC cable, it offers flexible installation options tailored to various marine electronics systems. The Airmar brand is renowned for its innovation and quality, ensuring reliability and precision in underwater imaging, which helps users navigate and fish more effectively in diverse aquatic environments.
Featuring a 1kw power output combined with low and medium frequency CHIRP technology, the Airmar M265C-LM-0 provides optimal depth performance and clarity. Its bare wire MMC cable simplifies connections to compatible fishfinder and sonar units, enhancing signal integrity and reducing interference. This transducer's compact design also minimizes drag and mounting space requirements. Overall, it supports a wide range of marine applications including depth sounding, fish finding, and bottom mapping, contributing to safer and more productive boating experiences.
The bare wire MMC cable included with the Airmar M265C-LM-0 transducer allows versatile installation on different hull types and sonar systems. This flexibility ensures compatibility with many popular marine electronics brands, including those requiring custom wiring configurations. Installation can be completed efficiently by professionals or experienced DIYers, benefiting from the stripped cable ends for easy connection. Furthermore, Airmar’s support and documentation help users integrate the transducer seamlessly into their vessels, maximizing performance and ensuring long-term durability in challenging marine conditions.
