SKU:AIRM265CLM11R
Airmar M265C-LM-11R 1kw Low Medium CHIRP With Raymarine 11-Pin Cable
Airmar M265C Depth Only Low Medium In-Hull Transducer with Raymarine 11-pin Connector, Low Dual-Band Mix--N-Match Cable
Model: M265C-LM-11R
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.

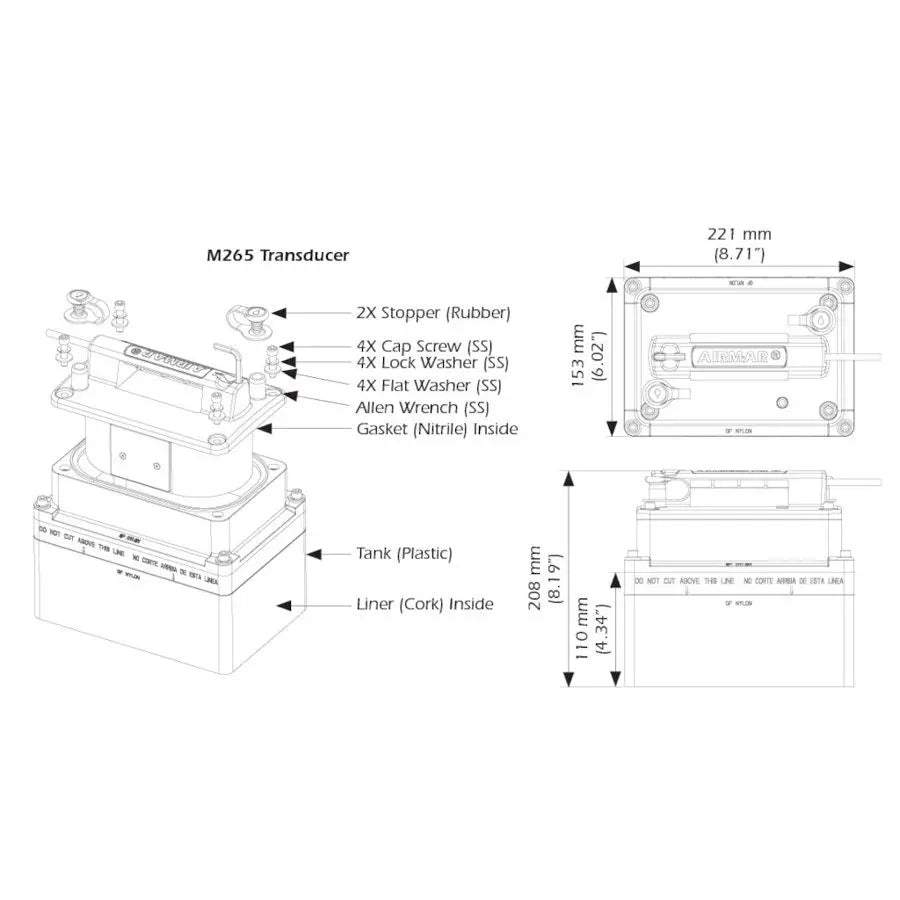

The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Acoustic WindowUrethane
Cable-Length
9 m (30 feet)
Connector
Airmar 12-Pin (MMC)
Deadrise Range
0 deg to 22 deg
Display Connector
MMC-11R-LDB Raymarine 11-pin Connector, Low Dual-Band
Frequency Band
Low-Medium
Housing Material
Plastic
Hull Material
Solid fiberglass only
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Max Vessel LOA
11 m (36 feet) and above
Medium Frequency
85-135 kHz
Medium Frequency Beamwidth
16 deg-11 deg
Mounting Style
In-Hull
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth
Dimensions
8.19in H x 8.71in L x 6.02in W
What's in the Box:
The Airmar M265C-LM-11R transducer harnesses advanced 1kW Low Medium CHIRP technology, providing clear and detailed underwater imagery for mariners. Its dual-frequency range enhances target separation and clarity, making it ideal for fishing and navigation. This powerful feature ensures reliable detection of fish, structure, and bottom contours, improving situational awareness on the water. Whether used in saltwater or freshwater, the Airmar transducer delivers consistent performance, minimizing noise and interference for superior sonar results.
Designed specifically for Raymarine systems, the Airmar M265C-LM-11R includes an 11-pin cable ensuring effortless integration with compatible devices. This plug-and-play connection simplifies installation and guarantees stable data transmission for accurate sonar readings. The cable’s durable construction withstands harsh marine environments, reducing wear and ensuring longevity. By combining Airmar’s precision transducer capabilities with Raymarine’s trusted network, users experience a powerful, reliable sonar solution optimized for performance.
Constructed with marine-grade materials, the Airmar M265C-LM-11R is engineered to endure challenging sea conditions. Its robust housing resists corrosion, impact, and biofouling, ensuring long-lasting operation. The sleek form factor reduces drag and vibration when mounted on the hull, preserving boat efficiency and sonar accuracy. This transducer’s versatile design supports a variety of installation options and vessel types, offering flexibility without compromising durability. The result is a dependable partner for all serious anglers and marine professionals.
