SKU:AIRM265CLM9N2

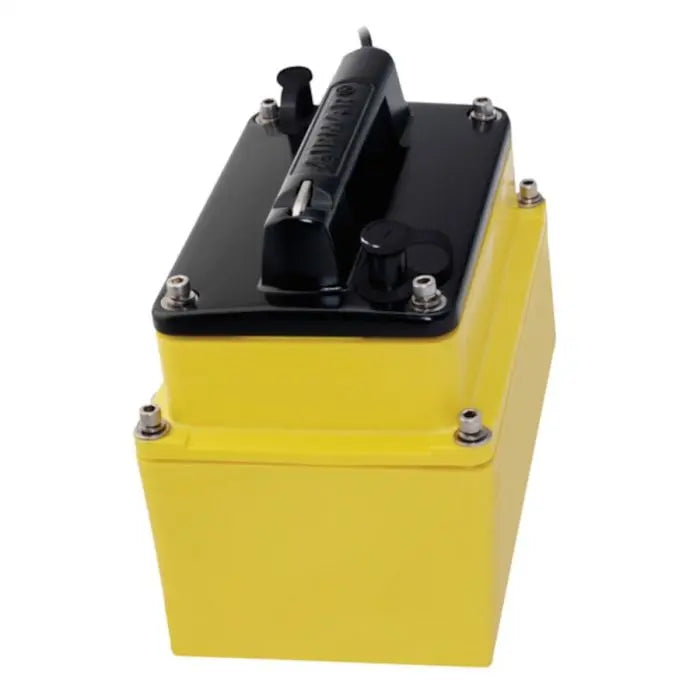

Airmar M265C-LM-9N2 1kw Low Medium CHIRP With Navico 9-Pin Y-Cable
Airmar M265C Depth Only Low Medium In-Hull Transducer with Navico 9-Pin Y-Cable - 1m Mix--N-Match Cable
Model: M265C-LM-9N2
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Acoustic WindowUrethane
Cable-Length
9 m (30 feet)
Connector
Airmar 12-Pin (MMC)
Deadrise Range
0 deg to 22 deg
Display Connector
Navico 9-Pin Y-Cable - 1m Mix-n-Match Cable
Frequency Band
Low-Medium
Housing Material
Plastic
Hull Material
Solid fiberglass only
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Max Vessel LOA
11 m (36 feet) and above
Medium Frequency
85-135 kHz
Medium Frequency Beamwidth
16 deg-11 deg
Mounting Style
In-Hull
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth

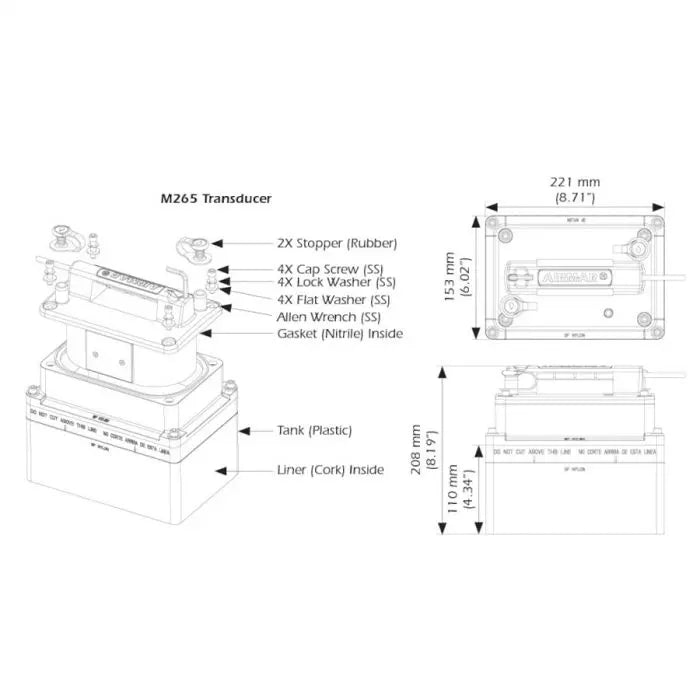

Dimensions
8.19in H x 8.71in L x 6.02in W
What's in the Box:
The Airmar M265C-LM-9N2 integrates cutting-edge Low Medium CHIRP technology, delivering superior underwater imaging by transmitting a broad range of frequencies. This ensures enhanced target resolution and better separation of fish, structure, and bottom details. The 1kw power provides strong signal penetration in various water conditions, making it ideal for professional and recreational marine use. With Airmar’s expertise in sonar technology, this unit guarantees consistent and reliable data for improved navigation and fishing experiences.
This model includes a Navico 9-Pin Y-Cable, designed to seamlessly connect the transducer to popular marine electronics from Navico brands such as Lowrance, Simrad, and B&G. The Y-cable enables power and data transfer without additional adapters, simplifying installation and minimizing clutter. The plug-and-play setup supports quick integration, ensuring users can start benefiting from precise sonar readings immediately after mounting. This compatibility makes it a preferred choice among mariners seeking high performance with streamlined setup.
The Airmar M265C-LM-9N2 is built to withstand harsh marine conditions, featuring sturdy materials resistant to corrosion and impact. Its compact design allows for easy hull mounting or fairing box installation on various vessels. The transducer’s sealed construction prevents water intrusion, enhancing longevity and reducing maintenance needs. These attributes make it a dependable component for long-term use on fishing boats, yachts, and commercial vessels, delivering consistent performance through challenging sea environments.
