SKU:AIRM265CLMBL2

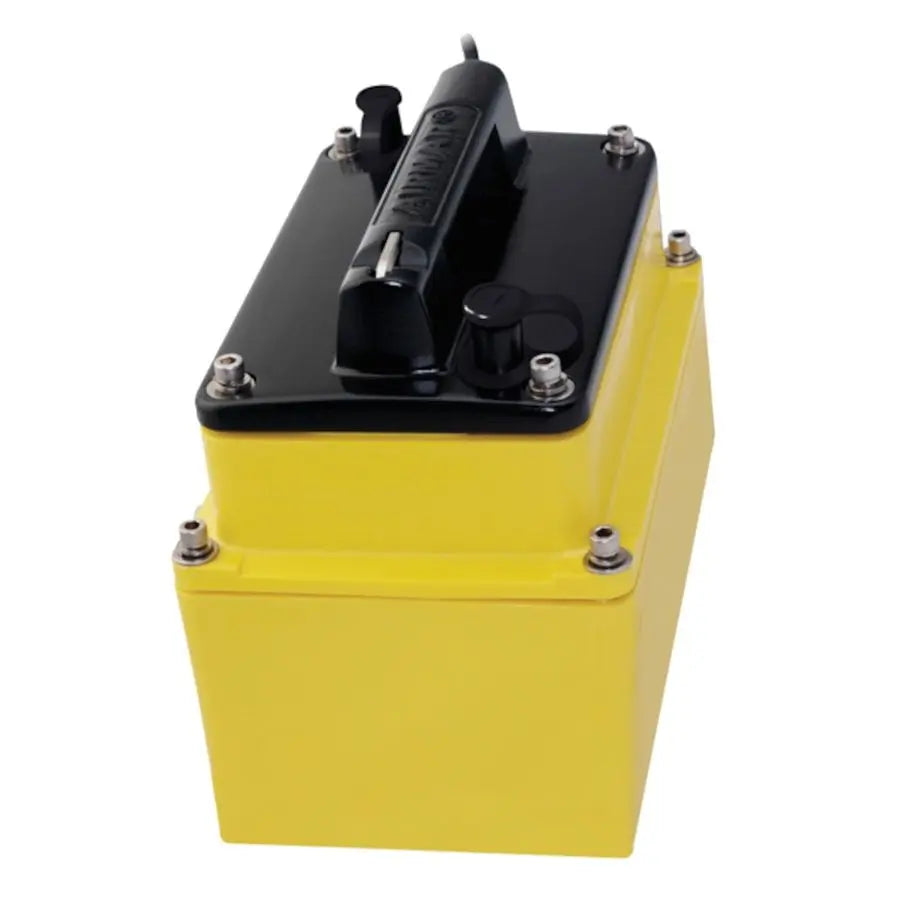

Airmar M265C-LM-BL2 1kw Low Medium CHIRP With Navico BL Y-Cable
Airmar M265C Depth Only Low Medium In-Hull Transducer with Navico Dual 7-Pin BL, Y-Cable - 1m Mix--N-Match Cable
Model: M265C-LM-BL2
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Acoustic WindowUrethane
Cable-Length
9 m (30 feet)
Connector
Airmar 12-Pin (MMC)
Deadrise Range
0 deg to 22 deg
Display Connector
Navico Dual 7-Pin BL, Y-Cable - 1m Mix-n-Match Cable
Frequency Band
Low-Medium
Housing Material
Plastic
Hull Material
Solid fiberglass only
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Max Vessel LOA
11 m (36 feet) and above
Medium Frequency
85-135 kHz
Medium Frequency Beamwidth
16 deg-11 deg
Mounting Style
In-Hull
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth

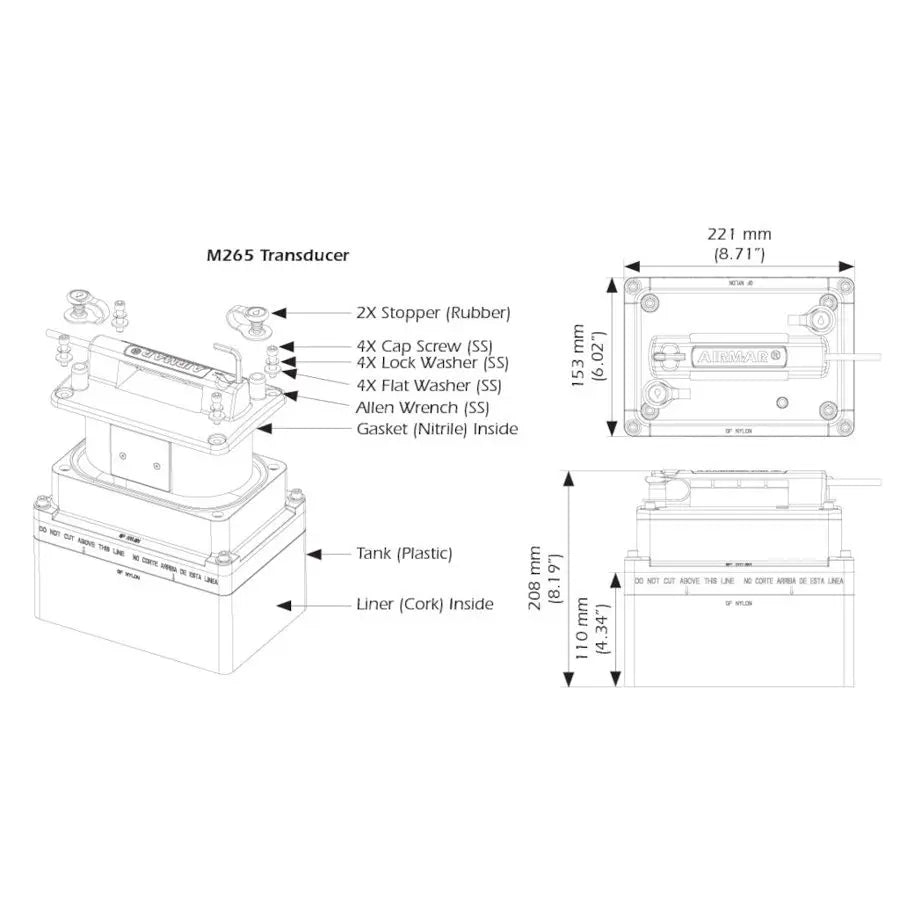

Dimensions
8.19in H x 8.71in L x 6.02in W
What's in the Box:
The Airmar M265C-LM-BL2 transducer harnesses advanced 1kW Low Medium CHIRP technology to provide superior sonar clarity and target separation. Designed for professional and recreational marine users, it delivers reliable performance in various water conditions. This 1kW transducer offers precise imaging, helping anglers and marine explorers identify fish and underwater structures with ease. By utilizing the trusted Airmar brand, this product ensures enduring quality and consistent accuracy for all sonar applications.
The inclusion of the Navico BL Y-Cable simplifies connectivity and integration with multiple navigation and sonar devices. This Y-Cable allows the M265C-LM-BL2 transducer to work efficiently with compatible Navico systems, reducing installation complexity while maintaining strong signal transmission. With this built-in solution, users benefit from fast and secure data transfer between the sonar and display units, resulting in smooth operation and enhanced user experience during marine navigation and fishing activities.
Built to withstand harsh marine conditions, the Airmar M265C-LM-BL2 combines durable materials with a smart, compact design. Its rugged housing protects the internal components from corrosion, water pressure, and impact, extending the lifespan of the transducer even in challenging environments. This resilience means fewer maintenance hassles and dependable performance year-round. The low-medium frequency CHIRP operation also supports versatility across different vessel types, making it a preferred choice for boat owners seeking quality and longevity.
