SKU:AIRM265CLMMM

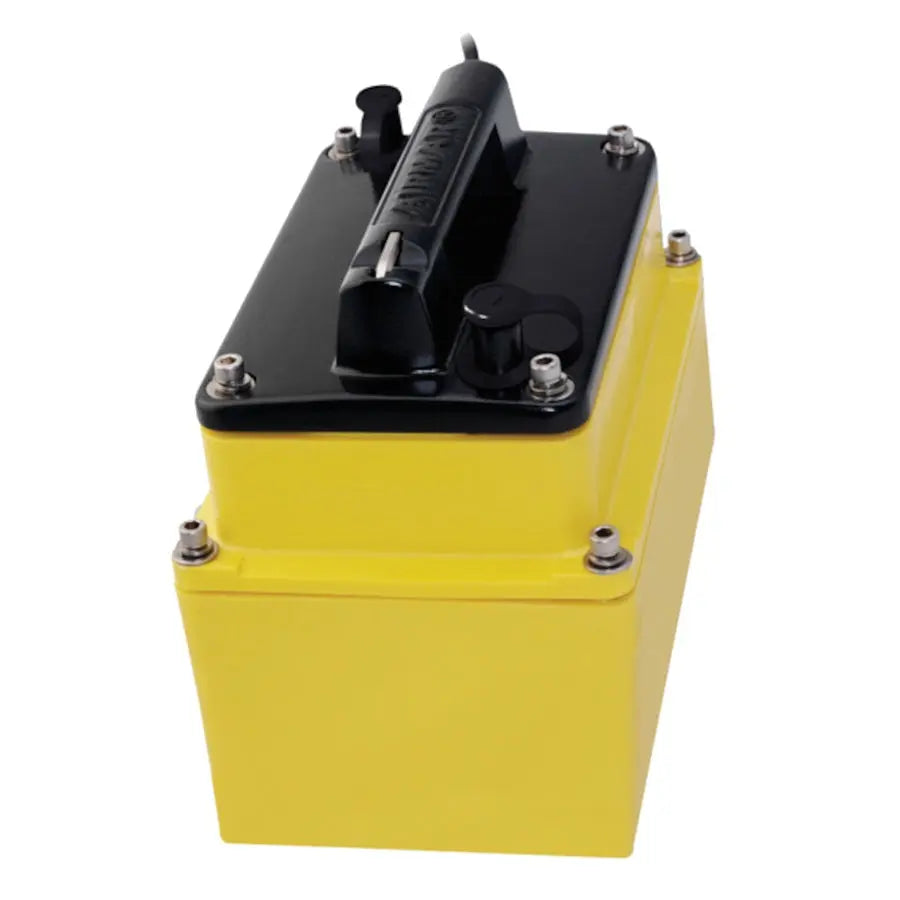

Airmar M265C-LM-MM 1kw Low Medium CHIRP Mix-n-Match Connector
Airmar M265C Depth Only Low Medium In-Hull Transducer - Mix-N-Match Connector
Model: M265C-LM-MM
The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.
The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000 feet).It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Acoustic WindowUrethane
Cable-Length
9 m (30 feet)
Connector
Airmar 12-Pin (MMC)
Deadrise Range
0 deg to 22 deg
Display Connector
MMC Cable Required
Frequency Band
Low-Medium
Housing Material
Plastic
Hull Material
Solid fiberglass only
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), Medium frequency- 457 m (1500 feet)
Max Vessel LOA
11 m (36 feet) and above
Medium Frequency
85-135 kHz
Medium Frequency Beamwidth
16 deg-11 deg
Mounting Style
In-Hull
Power Rating
1 kW
Single or Dual Frequency
CHIRP-Ready Dual-Band
Transducer Functions
Depth

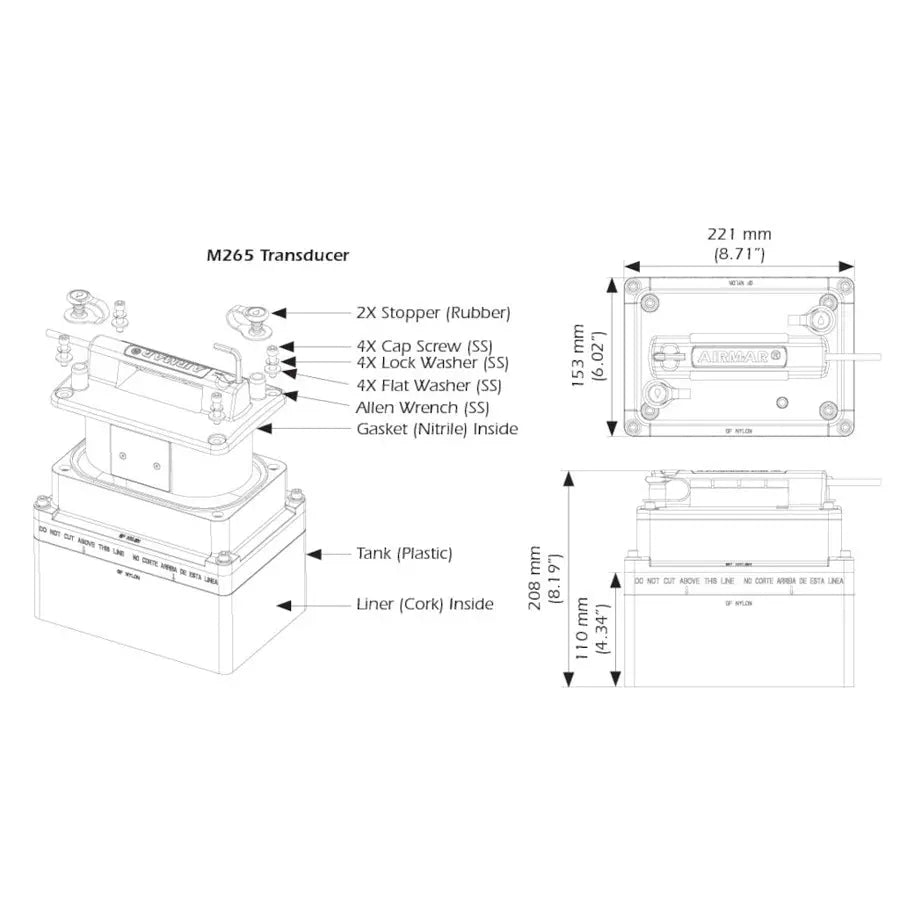

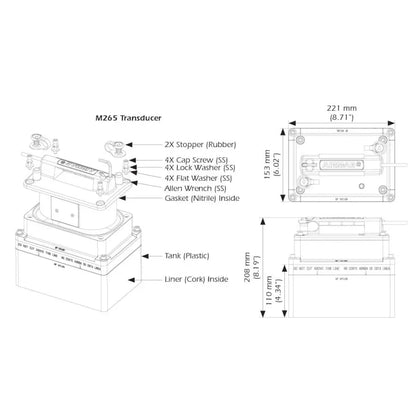

Dimensions
8.19in H x 8.71in L x 6.02in W
The Airmar M265C-LM-MM 1kw Low Medium CHIRP Mix-n-Match Connector delivers outstanding sonar clarity and resolution by utilizing Airmar's cutting-edge CHIRP technology. Designed for low and medium frequency ranges, this connector enhances underwater imaging by providing crisp, detailed sonar returns that help anglers and mariners identify fish and structures effortlessly. Its compatibility across multiple sonar systems offers flexibility without compromising performance, making it an ideal solution for diverse marine environments.
Built to withstand harsh marine conditions, the Airmar M265C-LM-MM features a rugged, corrosion-resistant design that ensures long-lasting operation in both freshwater and saltwater environments. Its Mix-n-Match connector system simplifies installation and upgrades by allowing users to interchange components easily, reducing downtime and maintenance costs. This durable construction combined with plug-and-play versatility makes it a reliable choice for professional and recreational boaters alike.
The Mix-n-Match connector system of the Airmar M265C-LM-MM supports quick and straightforward coupling with various transducer models and chartplotter units. This seamless integration streamlines setup processes and expands the device's compatibility across multiple equipment brands and sonar systems. By incorporating this connector, users benefit from simplified connectivity and improved signal transmission, ensuring they get the most accurate sonar readings for safer and more productive marine navigation.
