Airmar M285C-HW CHIRP In-Hull With Garmin 12-Pin Mix-N-Match

Airmar M285 High Wide CHIRP In-Hull Transducer with Garmin 12-Pin Mix-N-Match Cable

Model: M285C-HW-12G

• Depth only
• Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance
• Perfect for trailered or lifted boats
• 1 kW output
• 25 degree fixed beamwidth
• Urethane Housing- liquid filled
• Exclusive Xducer ID®

As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).

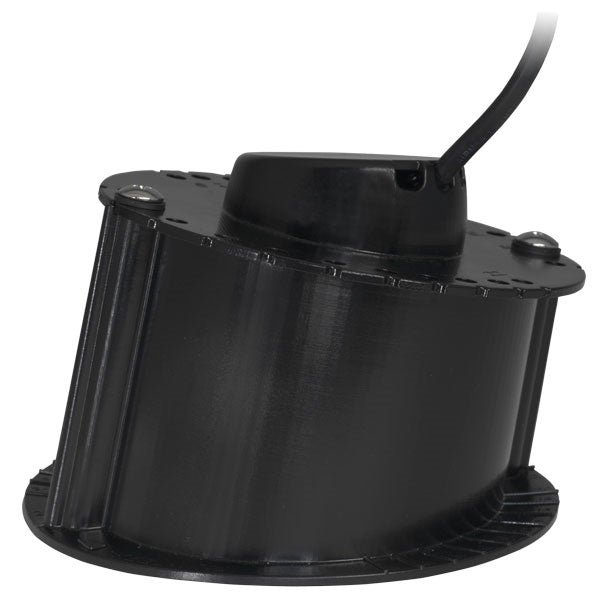

The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25’ with solid core,fiberglass hulls.

Specifications

Beamwidth
25°

Depth range
to 700’ (215 meters)

Hull Deadrise
adjustable 2° to 20°

Acoustic Window
Urethane

CHIRP Frequency Range
High frequency 150-250kHz

What's in the Box:

• M285C-HW-MM
• MMC-12G

Advanced Airmar CHIRP Technology for Superior Sonar

The Airmar M285C-HW transducer integrates advanced CHIRP (Compressed High-Intensity Radar Pulse) technology designed to provide clearer and more detailed underwater imaging. By sweeping a range of frequencies, this Airmar device delivers superior target separation and depth clarity compared to traditional sonar. This results in better fish detection, obstacle avoidance, and seabed imaging, making it an indispensable tool for anglers and boaters seeking reliable and precise underwater information.

Seamless Compatibility with Garmin 12-Pin Systems

Airmar designed the M285C-HW specifically to work flawlessly with Garmin devices using 12-pin connectors. This seamless mix-n-match compatibility allows users to easily integrate the transducer into existing Garmin networks without needing extra adapters or technical complications. The connector system ensures a secure and reliable connection that enhances overall performance and makes installation quick and straightforward.

Durable In-Hull Design Built for Longevity

The Airmar M285C-HW features a rugged in-hull construction that mounts inside the boat’s hull, protecting it from physical damage and marine growth. This design not only ensures better protection but also reduces drag and noise interference, improving sonar quality. Its durable materials resist corrosion and harsh marine environments, providing long service life and consistent underwater data accuracy for avid marine enthusiasts and professional users alike.
