Airmar M285 High Wide CHIRP In-Hull Transducer with Humminbird 14-Pin Mix-N-Match Cable

Model: M285C-HW-14HB

• Depth only
• Chirp Ready High frequency (150-250kHz) for great offshore and inshore performance
• Perfect for trailered or lifted boats
• 1 kW output
• 25 degree fixed beamwidth
• Urethane Housing- liquid filled
• Exclusive Xducer ID®

As Chirp continues to redefine recreational fishing, AIRMAR has expanded the lineup of single band transducers to satisfy the growing demand for this game changing technology. The M285HW, is a 1kW, economical Chirp transducer designed for offshore fishing and freshwater anglers. Operating at the high frequency range of 150-250kHz and a fixed wide beam of 25 degrees, these transducers reveal ultra-clear target resolution in shallow,murky waters at shallow to medium depths(up to 700 feet*).

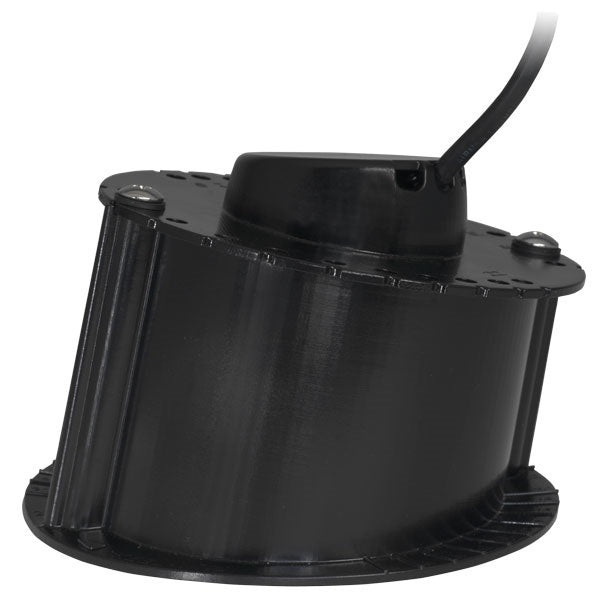

The transducer includes a plastic housing which is secured inside the hull of the boat and is filled with Eco-friendly anti-freeze. The transducer is inserted into the housing and adjusted for the proper dead rise offset,insuring the beam is shooting straight down. The liquid provides the best medium to transmit through the fiberglass and into the surrounding water. The benefits to the in-hull transducer are that there are no protruding features on the exterior of the hull making it the perfect choice for trailered or lifted boats. Designed for smaller boats up to 25’ with solid core,fiberglass hulls.

Specifications

Beamwidth
25°

Depth range
to 700’ (215 meters)

Hull Deadrise
adjustable 2° to 20°

Acoustic Window
Urethane

CHIRP Frequency Range
High frequency 150-250kHz

What's in the Box:

• M285C-HW-MM
• MMC-14HB

Overview of the Airmar M285C-HW CHIRP In-Hull Transducer

The Airmar M285C-HW stands out as a high-quality CHIRP in-hull transducer designed to deliver clear and accurate sonar readings for boaters and anglers. Integrated with the Humminbird 14-pin Mix-N-M, this transducer offers seamless compatibility with select Humminbird fishfinders. The in-hull installation ensures protection from physical damage and marine debris, while the CHIRP technology enhances target separation and depth accuracy. Whether you are fishing in shallow or deep waters, the Airmar M285C-HW provides consistent and reliable sonar performance essential for maximizing your time on the water.

Advanced CHIRP Technology for Superior Sonar Imaging

Airmar's CHIRP technology within the M285C-HW transducer significantly improves sonar resolution and clarity by broadcasting a continuous range of frequencies. This method allows for better target identification and depth precision compared to traditional sonar. The device covers broad frequency bands that enable high-detail imaging of underwater structures, fish, and bottom contours. As a result, anglers can distinguish fish from debris more easily, improving catch rates and navigation safety. The in-hull design further protects the transducer's sensitive components from environmental wear, providing long-term, dependable sonar data.

Compatibility and Installation with Humminbird 14-Pin Systems

The Airmar M285C-HW is specially engineered to work with Humminbird fishfinder systems featuring the 14-pin connection, allowing for straightforward plug-and-play installation. This tailored compatibility reduces setup time and ensures reliable data transmission between the transducer and the display unit. The in-hull mounting method is ideal for fiberglass hulls, enabling a clean, streamlined installation without protruding parts. The Mix-N-M configuration facilitates versatile integration, making the Airmar M285C-HW a top choice for boaters seeking efficient sonar upgrades in existing Humminbird systems.
