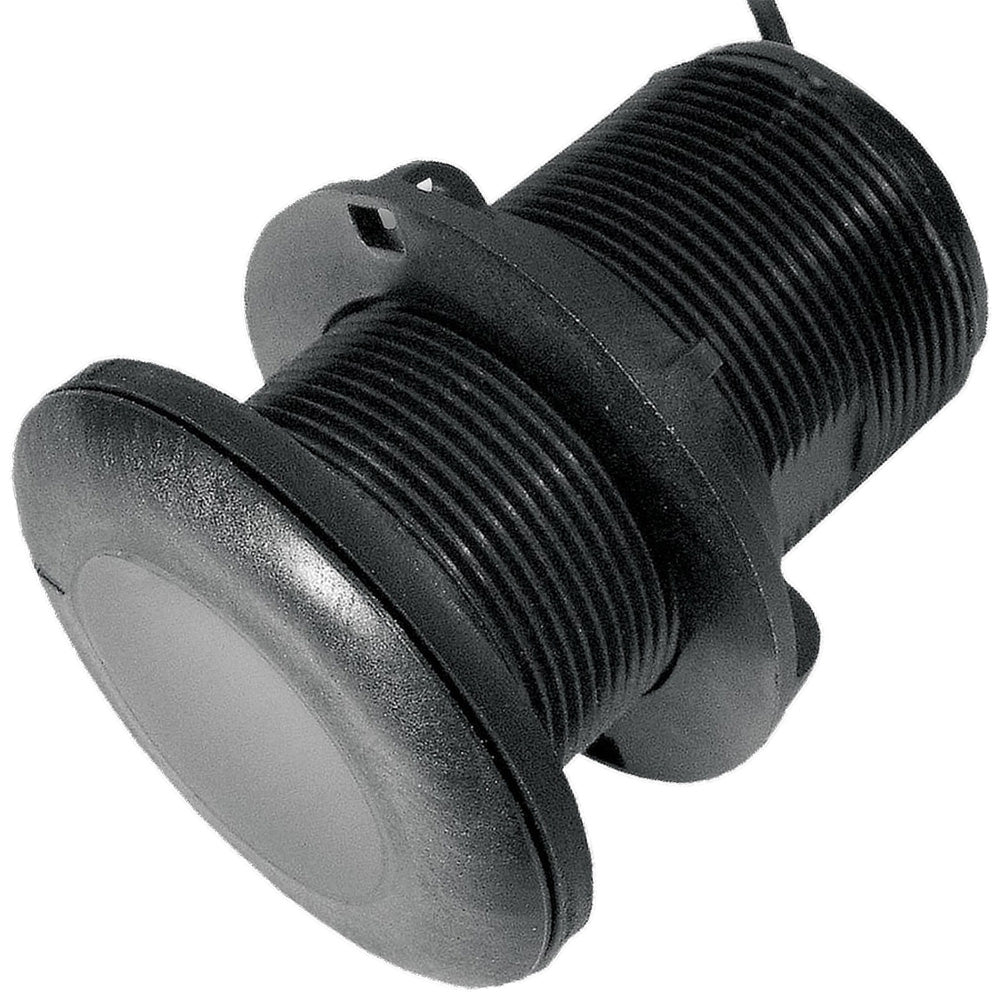

Airmar P319 Plastic Thru Hull Depth and Temperature Transducer - 600W, 50/200 kHz - Requires Mix & Match Cable

P319 Plastic Thru Hull Depth Temperature Transducer - 600W- 50/200kHz - Requires Mix Match Cable

Airmars entry-level P319 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile, plastic housing. The nearly flush design minimizes drag with only 5 mm (3/16) extending outside of the hull.

Features:

• Requires Mix Match Cable for the Fishfinder Unit
• Cable Length 2M
• Deadrise Range: Best performance through 7. Can accommodate up to 12.
• Hole Size: 51 mm (2)
• Usable Shaft Length: 63.5 mm (2.50)
• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 366 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 213 m (700)
• Right-angle cable exit saves space and protects the transducer if stepped on
• An included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile housing has minimum drag
• Plastic housing is ABYC H-27 compliant

The Airmar P319 Plastic Thru Hull Depth and Temperature Transducer offers reliable performance for marine depth measurement and water temperature sensing. Its low-profile, nearly flush design minimizes drag and interference, with only about 3/16 inch extending outside the hull, making it ideal for vessels seeking streamlined installation. Equipped with a dual-frequency ceramic element operating at 50 kHz and 200 kHz, the transducer provides accurate depth readings up to 1200 feet at 50 kHz and up to 700 feet at 200 kHz, with a wide beamwidth for broad coverage and precise data collection. The durable plastic housing complies with ABYC H-27 standards, ensuring safety and durability in marine environments. The transducer is powered at 600 Watts, delivering robust signal transmission for dependable performance across various conditions. Its right-angle cable exit design saves space and protects the cable from stepped-on damage, while the included rubber washer allows for secure installation on irregular hull surfaces. The P319 is suitable for deadrise angles up to 12 degrees, with optimal performance through 7 degrees, making it adaptable to a wide range of vessel hull designs. The device requires a compatible Mix & Match Cable, with a 2-meter length, to connect to your fishfinder unit. Overall, the Airmar P319 provides a high-quality, low-profile solution for depth and temperature monitoring, combining precision, durability, and ease of installation for serious anglers and marine professionals alike.

Features:

• Requires Mix & Match Cable for the fishfinder unit

• Cable length: 2 meters

• Suitable for deadrise angles up to 12 degrees, optimal through 7 degrees

• Hole size: 51 mm (2 inches)

• Usable shaft length: 63.5 mm (2.50 inches)

• Provides depth measurement and fast-response water-temperature sensing

• 600 Watts of power for reliable signal transmission

• Dual-frequency ceramic element: 50 kHz with 45-degree beamwidth for depths up to 1200 feet, 200 kHz with 12-degree beamwidth for depths up to 700 feet

• Right-angle cable exit to save space and protect the cable

• Includes a rubber washer for secure mounting on irregular hull surfaces

• Low-profile plastic housing minimizes drag and improves hydrodynamics

• Constructed from ABYC H-27 compliant plastic for durability and safety
