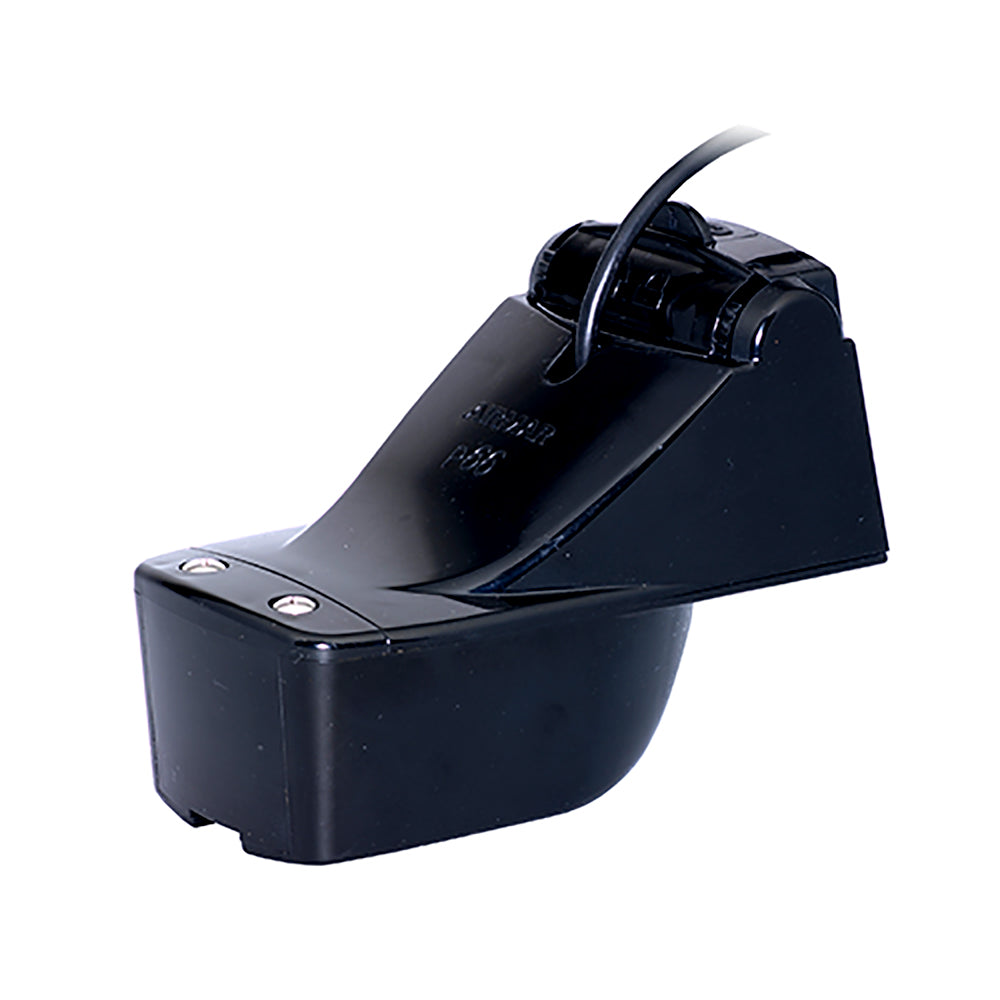

Airmar P66 Transom Mount Transducer for Humminbird with #9 Connector

P66 Transom Mount Transducer f/Humminbird #9 Connector Units

Features:

• Depth and temperature in one housing
• Plastic kick-up bracket
• Accommodates transom angles between 2 and 20
• Recessed waterflow channel protects paddlewheel
• Transducer can be removed from bracket without the use of tools for easy service and storage
• Boat Size: Up to 12M (40)
• Frequency: 50/200 kHz
• Beamwidth: 50 kHz-45, 200 kHz-11
• RMS Power: 600W
• 10M Cable

Fits: All 800, 900 1100 Series except 967 3D

The Airmar P66 Transom Mount Transducer is designed to deliver reliable depth and temperature readings in one compact housing. It features a plastic kick-up bracket that allows for easy installation and removal, accommodating transom angles between 2 and 20 degrees for versatile mounting options. The transducer includes a recessed waterflow channel to protect the paddlewheel from damage, ensuring consistent performance during your fishing trips. With a 10-meter cable length, this transducer is suitable for boats up to 40 feet long, providing clear sonar images at 50/200 kHz frequencies with a beamwidth of 45 degrees at 50 kHz and 11 degrees at 200 kHz. RMS power handling capacity of 600W ensures it can handle demanding sonar environments for accurate fish finding and depth measurement.

Features:

• Depth and temperature measurement within a single housing

• Plastic kick-up bracket for easy installation and removal without tools

• Accommodates transom angles between 2 and 20 degrees

• Recessed waterflow channel protects paddlewheel from debris and damage

• Quick-release transducer for convenient service and storage

• Suitable for boats up to 40 feet (12 meters) in length

• Operates at 50/200 kHz frequencies for versatile sonar performance

• Beamwidth of 45° at 50 kHz and 11° at 200 kHz for detailed imaging

• 600W RMS power capacity for reliable operation

• Includes a 10-meter cable for flexible installation
