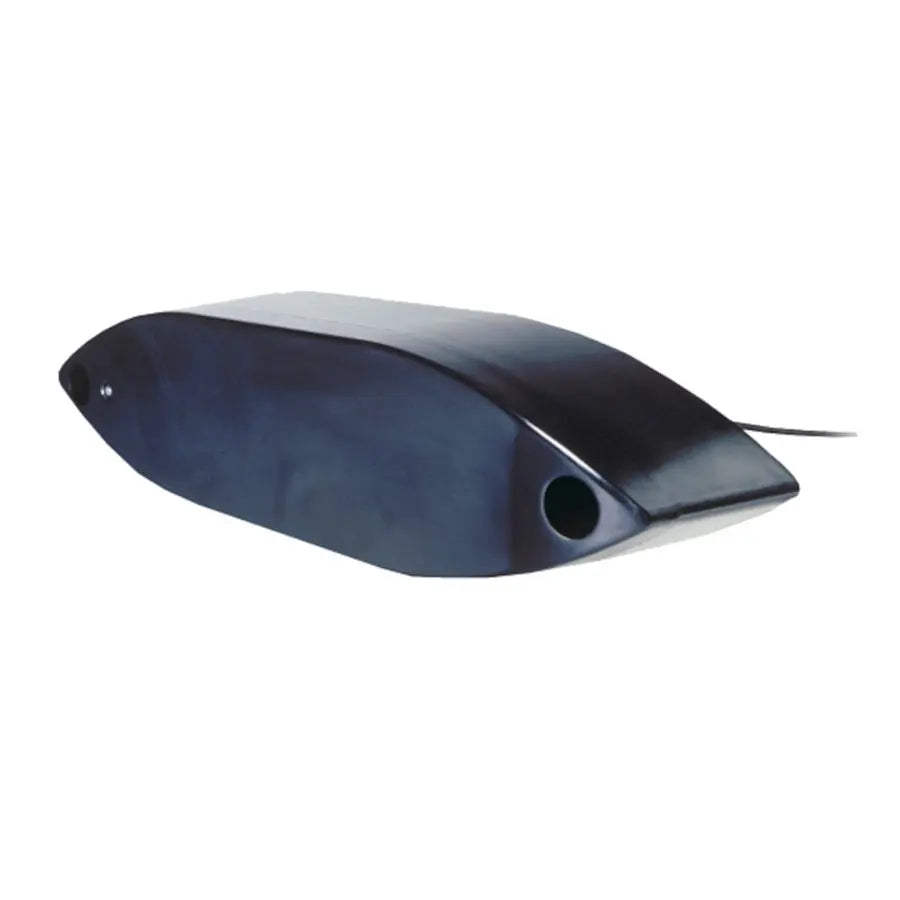

Airmar R509C-LHW Low/High-Wide Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509C-LHW: Advanced 3KW Low/High-Wide Chirp Depth and Temperature Sensor

Airmar R509C-LHW Low/High-Wide Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509 Low-High Wide Chirp, 3kW, w/FB, No Connector, DT

Model: R509C-LHW

• Depth and fast-response water-temperature sensing
• 2 to 3 kW of power for exceptional deep-water performance
• Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')
• High frequency: 150 to 250 kHz, 25° constant beamwidth, Maximum depth of 152 m (500')
• 132 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
• High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Urethane housing with fairing for optimal performance

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready R509LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3048 m (10000'). Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Specifications

Acoustic Window
Epoxy/urethane

Cable-Length
15 m (49')

Connector
Bare Wire

Deadrise Range
Up to 25° with fairing

Frequency
Low-High Wide

Low Frequency
28-60 kHz

Low Frequency Beamwidth
25°-16°

High Frequency
150-250 kHz

High Frequency Beamwidth
25°

Housing Material
Urethane

Max Deadrise
Up to 22°

Innovative Low and High-Wide Chirp Technology

The Airmar R509C-LHW features cutting-edge low and high-wide Chirp technology that delivers superior underwater clarity and detail. This powerful 3KW transducer operates over a wide frequency range, allowing it to provide precise depth readings and temperature data in various marine environments. The combination of both low and high-wide Chirp signals ensures better target separation and minimal interference, making it ideal for fishing enthusiasts and professional marine users alike who need reliable and accurate information below the waterline.

Durable Thru-Hull Mount Design

Designed for easy installation, the Airmar R509C-LHW is a robust thru-hull mount transducer built to withstand harsh marine conditions. Its durable housing ensures long-lasting performance without compromising signal quality, even in high-speed or choppy water situations. The thru-hull configuration minimizes drag and offers an unobstructed transmission path for the sonar signal, providing clear and consistent depth and temperature readings. This design makes it an excellent choice for boats where external mounting options are limited or less desirable.

Temperature Measurement Without Connector

This model comes without a connector, allowing flexible installation and custom wiring setups to suit specific vessel needs. The built-in temperature sensor delivers accurate water temperature data, an essential feature for understanding fish behavior and optimizing navigation performance. The absence of a connector reduces potential failure points and makes the transducer more adaptable to various marine electronics systems. The Airmar R509C-LHW ensures reliable data transmission when paired with compatible displays or fishfinder units, enhancing your marine experience.
