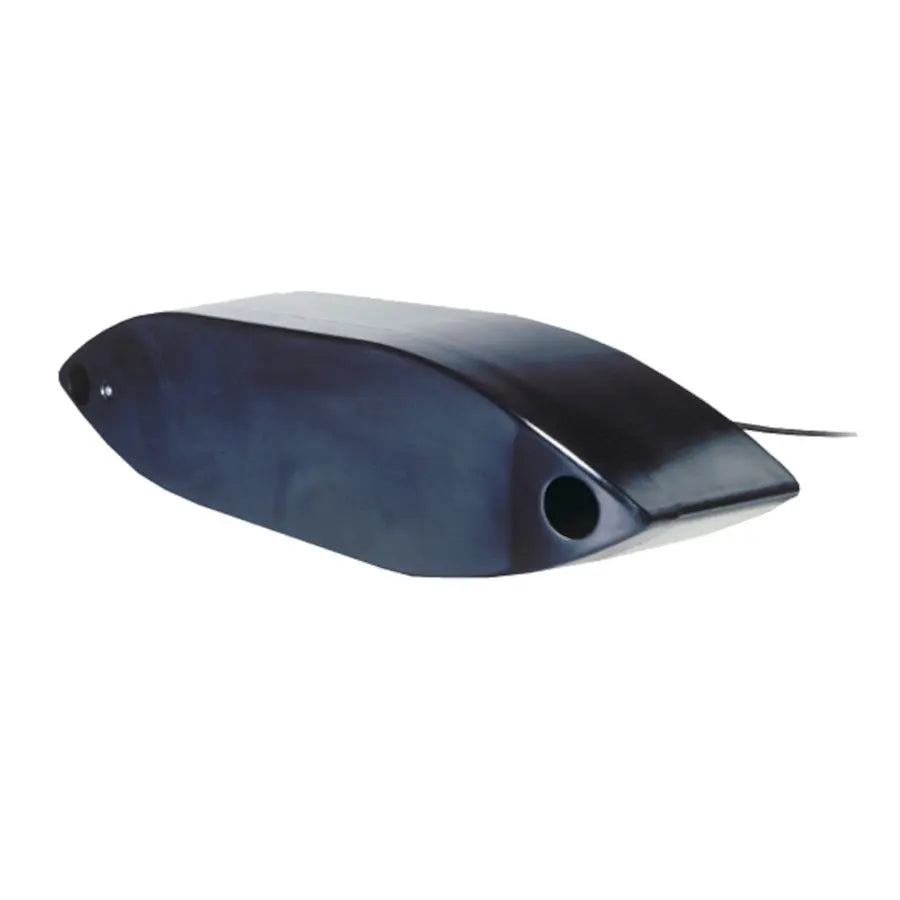

Airmar R509C-LM Low/Med Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509C-LM Low/Med Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509 Low-Medium Chirp, 3kW, w/FB, No Connector, DT

• Depth and fast-response water-temperature sensing


• 2 to 3 kW of power for exceptional deep-water performance


• Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')


• Medium frequency: 80 to 130 kHz, 13° to 8° beamwidth, Maximum depth of 914 m (3000')


• 82 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth


• Urethane housing with fairing for optimal performance


• Patented Xducer ID® technology

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2-3 kW, low and medium-frequency transducer. The Chirp-ready R509LM delivers the deep-water performance of the low frequency down to 3048 m (10000') plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R509LM transmits across the low-frequency bandwidth of 28 to 60 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 82 kHz of total bandwidth in a single installation.

Acoustic Window
Epoxy/urethane

Cable-Length
15 m (49')

Connector
Bare Wire

Deadrise Range
Up to 25° with fairing

Frequency
Low-Medium

Low Frequency
28-60 kHz

Low Frequency Beamwidth
11°x23°-5°x9°

Medium Frequency
80-130 kHz

Medium Frequency Beamwidth
13°-8°

Housing Material
Urethane

Max Deadrise
Up to 22°
