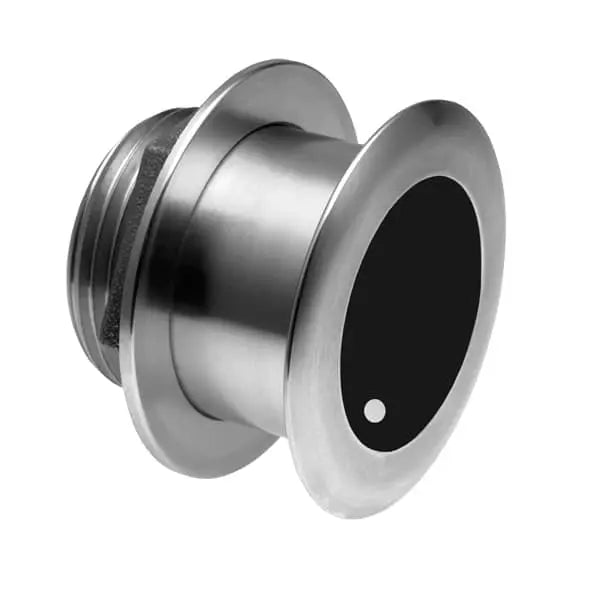

Airmar SS175C-12-H 12-Degree Tilt High CHIRP Transducer with Raymarine 11-Pin Compatibility

Airmar SS175C-12-H 12d Tilt High CHIRP with Raymarine 11-Pin

The Airmar SS175C-12-H is a high-performance tilt transducer designed for optimal fish detection and underwater imaging on boats up to 36 feet. Featuring a 1 kW power rating, this transducer can reach depths of up to 1000 feet, making it suitable for a wide range of fishing and navigation applications. Its high-frequency band, ranging from 130 kHz to 210 kHz, provides a narrow beamwidth of 6 to 10 degrees, which allows for precise targeting and excellent separation of baitfish and gamefish in shallow waters. The transducer's design incorporates exclusive Xducer ID(R) technology, ensuring easy identification and compatibility with Raymarine systems through the 11-pin connection.

The stainless steel housing ensures durability and compatibility with various hull types and materials, with an optional bronze housing available for specific vessel requirements. The tilted element within the transducer is fixed at a 12-degree angle, which corrects for hull deadrise and maximizes echo returns by orienting the ceramic element horizontally. This design feature enhances bottom detail resolution and fish target separation, especially around wrecks, reefs, and other structures. The transducer's urethane acoustic window provides reliable performance, even in challenging underwater conditions, while the compact design makes it suitable for smaller boats, such as center consoles.

Installation is straightforward, with a hole size of approximately 3-7/8 inches. The device weighs around 6 pounds, ensuring a sturdy setup without excessive weight. It is recommended for vessels with hull deadrise angles between 8 and 15 degrees, providing flexible mounting options. The SS175C-12-H is an ideal choice for anglers and boaters seeking high-resolution underwater imaging, excellent shallow water performance, and seamless integration with Raymarine electronics. Its robust construction and advanced technology make it a reliable addition to any small to medium-sized boat for serious fishing and navigation needs.

Features:

• Tilted element: Fixed at a 12-degree angle for hull deadrise correction and optimal echo return

• High CHIRP technology: Ranges from 130 kHz to 210 kHz for superior shallow water performance and target separation

• Power: 1 kW with a maximum depth of 1000 feet (304 meters)

• Beamwidth: 6 to 10 degrees in high frequency for precise fish targeting

• Compatibility: Raymarine 11-pin system with exclusive Xducer ID technology

• Housing: Stainless steel for durability and all hull types, with optional bronze version

• Installation: Suitable for hulls with 8 to 15 degrees deadrise, with a 3-7/8 inch hole size

• Marine-grade urethane acoustic window for reliable underwater performance
