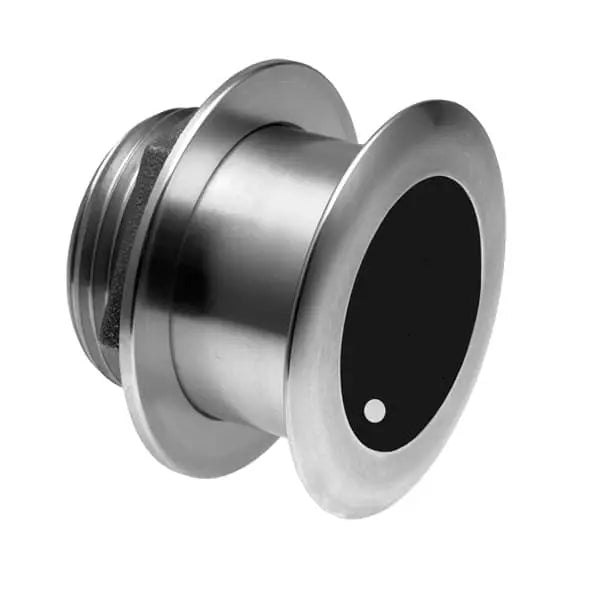

Airmar SS175C-12-H 12d Tilt High CHIRP with Humminbird 9-Pin

Airmar SS175C-12-H: Advanced 12d Tilt High CHIRP Sonar Transducer

Airmar SS175C-12-H 12d Tilt High CHIRP with Humminbird 9-Pin

Airmar SS175C-12-H 12d Tilt

High CHIRP with Humminbird 9-Pin

Model: SS175C-12-H

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 304 m (1000 feet)
• High Frequency: 130 kHz to 210 kHz
  = 10 deg to 6 deg beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• Recommended boat size: Up to 11 m (36 feet)
• Stainless steel housing is compatible with all hull types and materials
• Also available in a bronze housing (B175H) model
• Exclusive Xducer ID(R) technology

Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The High frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs and other structures. High frequency also delivers amazing target separation on baitfish and schooling gamefish. The SS175H delivers up to 80 kHz of total bandwidth in just one installation, and provides superior shallow water performance and bottom detail.

Tilted element transducers have the element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Specifications

Weight2.7 kg (6 lb)

Hull Deadrise
8 deg to 15 deg hull deadrise

Acoustic Window
Urethane

Hole Size
98 mm (3-7/8)

One internal ceramic assembly
"

Optimized Design for Accurate Sonar Performance

The Airmar SS175C-12-H delivers exceptional sonar performance with its 12-degree tilt design, which enhances underwater signal clarity and reduces noise interference. Built specifically for Humminbird 9-pin connections, this transducer integrates seamlessly with your fishing electronics. The 12-degree tilt angle is engineered to optimize wide coverage and improve target separation, allowing anglers to identify fish and underwater structures more precisely. Its high CHIRP (Compressed High-Intensity Radiated Pulse) technology offers detailed sonar imaging at various depths, providing a clear and reliable view beneath the water surface with minimal distortion.

Durability and Easy Installation for Marine Environments

Constructed from high-quality materials, the Airmar SS175C-12-H is designed to withstand harsh saltwater and freshwater conditions. The durable housing resists corrosion and physical impacts, ensuring long-lasting reliability during extended fishing trips. Installation is straightforward thanks to the Humminbird 9-pin compatibility, allowing for quick integration into existing systems without complex wiring or adapters. This user-friendly setup dramatically reduces downtime, letting you focus on your fishing experience without worrying about technical difficulties.

Enhanced Depth and Frequency Range for Versatile Use

This transducer operates at high CHIRP frequencies, delivering superior detail and depth capability to detect fish and bottom structures clearly. Its frequency range offers better target resolution than traditional single-frequency transducers, making it an excellent choice for both shallow and deep fishing environments. Whether you are fishing in lakes, rivers, or coastal waters, the Airmar SS175C-12-H supports consistent, high-quality sonar images. The wide frequency bandwidth helps anglers distinguish between different types of underwater objects, improving overall fishing efficiency.
