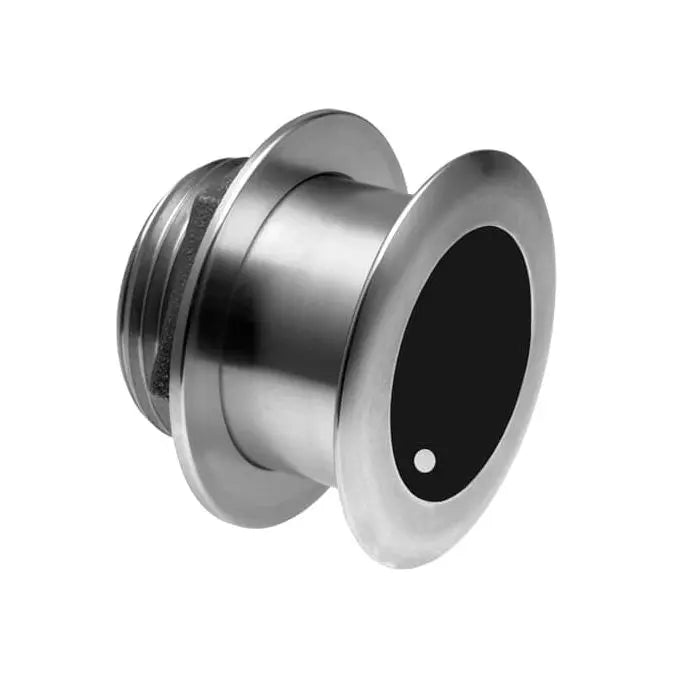

Airmar SS175C-12-L 12d Tilt Low CHIRP with Humminbird 9-Pin

Explore the Features and Benefits of the Airmar SS175C-12-L

Airmar SS175C-12-L 12d Tilt Low CHIRP with Humminbird 9-Pin

Airmar SS175C-12-L 12d Tilt

Low CHIRP with Humminbird 9-Pin

Model: SS175C-12-L-HB

• Depth and fast-response water-temperature sensor
• 1 kW
• Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500 feet)
  32 deg to 21 deg beamwidth
• Great deep water performance
• High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
• Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal
• Recommended boat size: Up to 11 m (36 feet)
• Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls
• Exclusive Xducer ID(R) technology

Airmar's low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Tilted element transducers have the ceramic element fixed at either a 20 deg, 12 deg or 0 deg angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.

Specifications

Weight 2.7 kg (6 lb)

Hull Deadrise
8 deg to 15 deg hull deadrise

Acoustic Window
Urethane

Hole Size
98 mm (3-7/8)

Seven internal broadband ceramic assemblies
"

High-Quality 12d Tilt Low CHIRP Performance

The Airmar SS175C-12-L is engineered to deliver exceptional sonar clarity with its 12-degree tilt Low CHIRP design. This tilt transducer ensures optimal sound wave transmission, resulting in sharper target separation and better bottom definition. Its Low CHIRP frequency is ideal for deep-water fishing, providing enhanced target detection and reduced noise interference. Designed for reliability, the Airmar SS175C-12-L is a trusted choice for anglers seeking precise sonar feedback to improve their fishing strategy and boat navigation.

Compatibility with Humminbird 9-Pin Systems

This transducer is tailored specifically for direct compatibility with Humminbird 9-Pin sonar systems, simplifying installation and ensuring seamless integration. The 9-pin connection provides secure and stable communication between the sonar unit and the transducer, resulting in uninterrupted sonar readings. Whether upgrading your current setup or installing a new system, the Airmar SS175C-12-L makes it easy to harness the full potential of your Humminbird device.

Durable Construction for Marine Environments

Built to withstand harsh marine conditions, the Airmar SS175C-12-L features robust materials that resist corrosion and impact damage. Its design ensures long-term durability when exposed to saltwater, temperature variations, and physical stress common during fishing and boating activities. This durability translates into reduced maintenance needs and a longer lifespan, making it a smart investment for anyone who demands dependable sonar performance on the water.
