SKU:AIRSS175C12MW8G

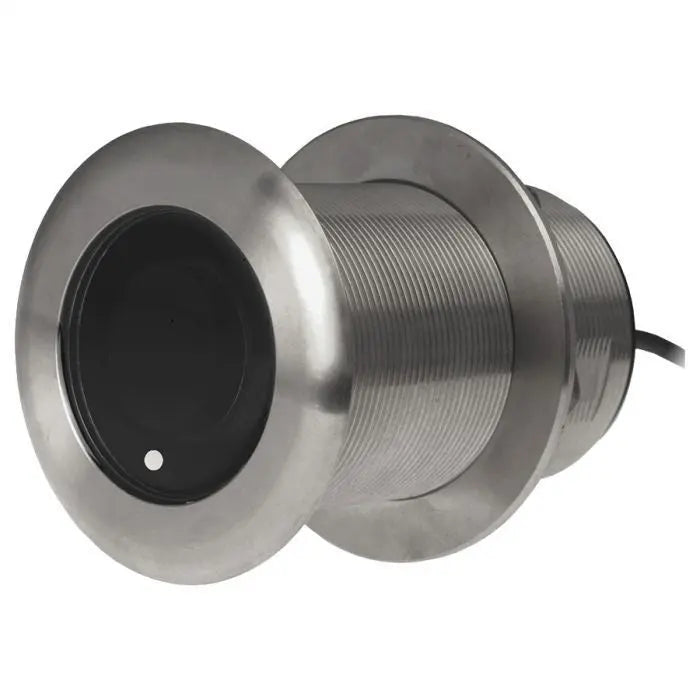

Airmar SS175C-12-MW 12d Tilt Medium CHIRP Ultra Wide With Garmin 8-Pin MMC
Airmar SS175MW Medium Ultra-Wide 12 deg Tilted Element Thru-Hull - With MMC-8 Garmin 8-Pin Mix-N-Match Cable
Model: SS175C-12-MW-8G
AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Specifications
Power Rating
1 kW
Max Deadrise Angle
24°
Housing
Stainless Steel
Functions
Depth, Temperature
Hull Material
All hull materials
Max Vessel LOA
Up to 11 m (36')
Hole Size
95 mm (3-3/4")
Mounting Style
Tilted Element Thru-Hull
Acoustic Window
Urethane
Cable-Length
9 m (30')
Max Depth
400 m (1300')
Medium Frequency
60-100 kHz
Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Single or Dual Frequency
CHIRP-Ready Single-Band
Water Temperature
-10° to 40°C (14° to 104°F)
Weight
2.7 kg (6 lb.)
What's in the Box:
The Airmar SS175C-12-MW is equipped with medium CHIRP technology, providing ultra-wide frequency coverage that enhances target resolution and depth clarity. This transducer offers superior signal processing which minimizes noise and interference, delivering precise and detailed underwater images. Whether you're fishing or navigating, the Airmar SS175C-12-MW ensures dependable performance by allowing you to identify fish and underwater structures more accurately. The 12-degree tilt design additionally optimizes signal angle, which improves detection in medium-depth waters.
This transducer is specifically designed with a Garmin 8-Pin MMC connector, ensuring easy plug-and-play integration with compatible Garmin marine systems. Its direct compatibility eliminates the need for adapters or complex installations, saving time during setup. The 12-pin connection supports robust data transmission for high-definition sonar readings, making it a perfect choice for Garmin users who demand reliability and simplicity. This integration enhances your marine electronics system by providing real-time, accurate sonar data for safer and more effective water outings.
Constructed with high-quality materials, the Airmar SS175C-12-MW is built to withstand harsh marine environments including saltwater exposure and vibration. Its medium 12-degree tilt angle offers a balance between forward and downward sonar coverage, making it versatile for various vessel types and water depths. This feature allows you to scan broader underwater areas without sacrificing detail. Additionally, the ultra-wide beam width enhances target separation, ensuring comprehensive underwater analysis. Overall, the durable design combined with advanced features makes the Airmar SS175C-12-MW a trusted tool for both recreational and professional marine use.
