SKU:AIRSS175C20MW8G

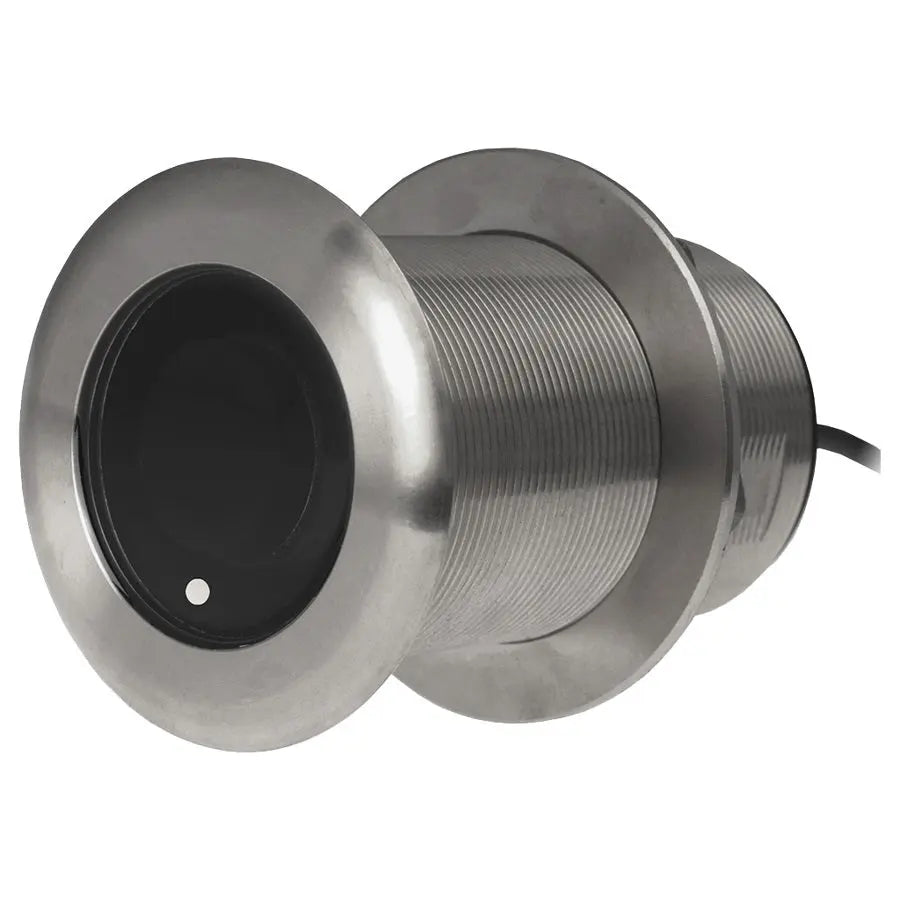

Airmar SS175C-20-MW 20d Tilt Medium CHIRP Ultra Wide With Garmin 8-Pin MMC
Airmar SS175MW Medium Ultra-Wide 20 deg Tilted Element Thru-Hull - With MMC-8G Garmin 8-Pin Mix-N-Match Cable
Model: SS175C-20-MW-8G
AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.
Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.
The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.
Specifications
Power Rating
1 kW
Max Deadrise Angle
24°
Housing
Stainless Steel
Functions
Depth, Temperature
Hull Material
All hull materials
Max Vessel LOA
Up to 11 m (36')
Hole Size
95 mm (3-3/4")
Mounting Style
Tilted Element Thru-Hull
Acoustic Window
Urethane
Cable-Length
9 m (30')
Max Depth
400 m (1300')
Medium Frequency
60-100 kHz
Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
Single or Dual Frequency
CHIRP-Ready Single-Band
Water Temperature
-10° to 40°C (14° to 104°F)
Weight
2.7 kg (6 lb.)
What's in the Box:
The Airmar SS175C-20-MW transducer offers exceptional sonar capabilities with its 20-degree tilt and medium CHIRP technology. Designed to deliver clear and detailed underwater imaging, this product is ideal for fishermen and boaters who require precision and reliability. The ultra-wide beam angle enhances coverage, allowing users to scan broad areas rapidly. Incorporating Airmar’s advanced manufacturing, this transducer ensures superior target separation and depth accuracy, making it a valuable addition to any marine electronics setup.
This Airmar transducer is engineered with a Garmin 8-Pin MMC connector, ensuring seamless compatibility with Garmin devices. Its streamlined design fits various vessel types and mounting configurations, simplifying installation. The 20-degree tilt helps optimize the signal path beneath the boat, reducing interference and improving sonar clarity. Thanks to its compact size and durable construction, the SS175C-20-MW withstands harsh marine environments while maintaining consistent performance over time.
Built to last, the Airmar SS175C-20-MW transducer combines robust materials with innovative design. It resists corrosion and physical damage, ensuring longevity in saltwater and freshwater applications. The ultra-wide CHIRP beam captures high-resolution sonar returns across a broad range of frequencies, enabling excellent target distinction. By choosing this transducer, users benefit from Airmar's commitment to quality and performance, delivering precise underwater information for an enhanced boating experience.
