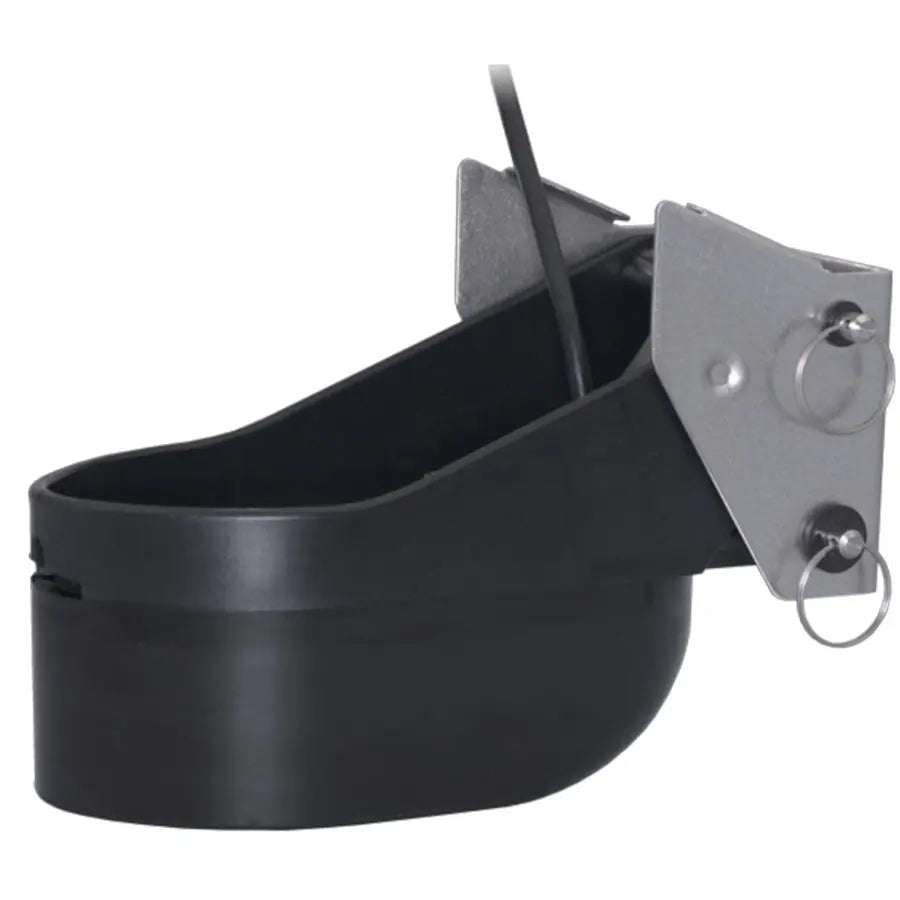

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Raymarine 11-Pin MMC

Airmar TM185C: Advanced Medium CHIRP Ultra Wide Transducer

Airmar TM185C Transducer Medium CHIRP Ultra Wide With Raymarine 11-Pin MMC

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-11R Raymarine 11-Pin MMC Cable

Model: TM185C-MW-11R

• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300')
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Simple installation on transom of the boat
• Great performance at boat speeds below 30 knots
• Easy maintenance and low-cost replacement
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

Specifications

Power Rating
1 kW

Transom Angle
2° to 22°

Functions
Depth, Temperature

Acoustic Window
Urethane

Cable-Length
9 m (30')

Freq Med Wide
60-100 kHz

Housing
Urethane/Stainless Bracket

Max Depth
400 m (1300')

Medium-Wide Beamwidth
57° to 73° beam p/s 16° average f/a

Mounting Style
Transom

Single or Dual Frequency
CHIRP-Ready Single-Band

Weight
4.2 kg (9.2 lb.)

What's in the Box:

• TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
• MMC-11R Raymarine 11-Pin MMC Cable

Reliable CHIRP Technology for Enhanced Sonar Clarity

The Airmar TM185C transducer utilizes advanced medium CHIRP technology to deliver clear and detailed imaging underwater. Designed to improve target separation, this transducer enhances the detection of fish and structure by sending a continuous sweep of frequencies. The medium bandwidth optimizes performance for both shallow and moderate depths, providing reliable sonar returns even in challenging conditions. Its ultra wide beam angle further expands coverage, allowing for better underwater awareness and accurate data capture, perfect for fishing or navigation enthusiasts relying on precise sonar readings.

Compatibility with Raymarine 11-Pin MMC Systems

Specifically engineered to fit Raymarine 11-pin MMC compatible devices, the Airmar TM185C ensures seamless integration with popular marine electronics. This compatibility guarantees easy installation and reliable communication between the transducer and Raymarine multifunction displays. Boaters can trust consistent data transmission, allowing them to make informed decisions on the water. The trusted connection helps users maximize their Raymarine equipment capabilities without needing additional adapters or connectors, supporting a clean, user-friendly setup.

Durable Design Built for Marine Environments

Constructed with high-quality materials, the Airmar TM185C transducer is built to endure harsh marine environments. Its rugged housing resists corrosion, impact, and fouling, ensuring long-lasting performance even during extended use. The transducer’s design focuses on reliability, offering users peace of mind that it will function flawlessly in both saltwater and freshwater conditions. This durability reduces maintenance needs and prolongs device lifespan, making it a smart investment for those who depend on consistent sonar feedback during their voyages.
