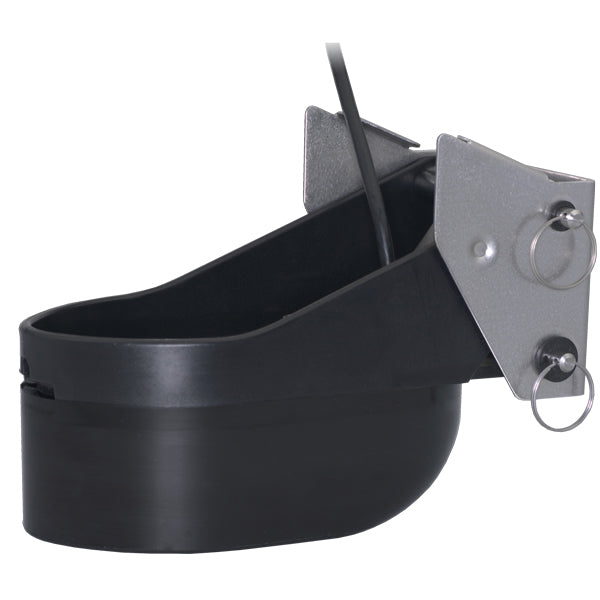

Airmar TM185C Transducer Medium CHIRP With Navico 7-Pin Blue

Airmar TM185C Transducer: Advanced Medium CHIRP Sonar Technology

Airmar TM185C Transducer Medium CHIRP With Navico 7-Pin Blue

Airmar TM185C Transducer

Medium CHIRP With Navico 7-Pin Blue

Model: TM185C-M

• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1,500')
• Medium frequency: 85 to 135 kHz
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Also available as thru-hull (B285M, B175M) and in-hull (M135M) models
• Exclusive Xducer ID® technology

The TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1,500') and delivers ultra-clear target resolution.

Specifications

Weight
4.16 kg (9.17 lb)

Accommodates Transom Angles
3° to 21°

Acoustic Window
Urethane

What's in the Box:

• TM185C-M-MM
• MMC-BL

Superior Sonar Performance with Airmar Medium CHIRP Technology

The Airmar TM185C transducer is engineered with advanced Medium CHIRP (Compressed High-Intensity Radiated Pulse) technology, providing highly precise and clear sonar imaging. This innovative feature enhances target resolution and depth performance, allowing anglers and marine professionals to detect fish and underwater structures efficiently. The Airmar TM185C is ideal for medium-depth fishing environments, delivering reliable sonar feedback that improves fishing success and navigational safety.

Compatibility and Build Quality Featuring Navico 7-Pin Connector

Designed to seamlessly integrate with Navico systems, the TM185C features a durable 7-pin blue connector that ensures secure and corrosion-resistant connections. This compatibility allows quick and easy installation in a wide range of boats equipped with Navico fish finders and chartplotters. The rugged construction of the Airmar TM185C resists harsh marine environments, protecting the internal elements and ensuring long-lasting performance on the water.

Versatile Medium CHIRP Frequencies for Accurate Detection

The TM185C operates within medium CHIRP frequencies, offering a balanced range between depth penetration and target detail. This versatility makes it suitable for a variety of fishing conditions, from shallow coastal waters to deeper offshore environments. By delivering clear signals and minimizing noise, the Airmar transducer provides users with consistent and actionable sonar data, critical for improved fish detection and underwater mapping.
